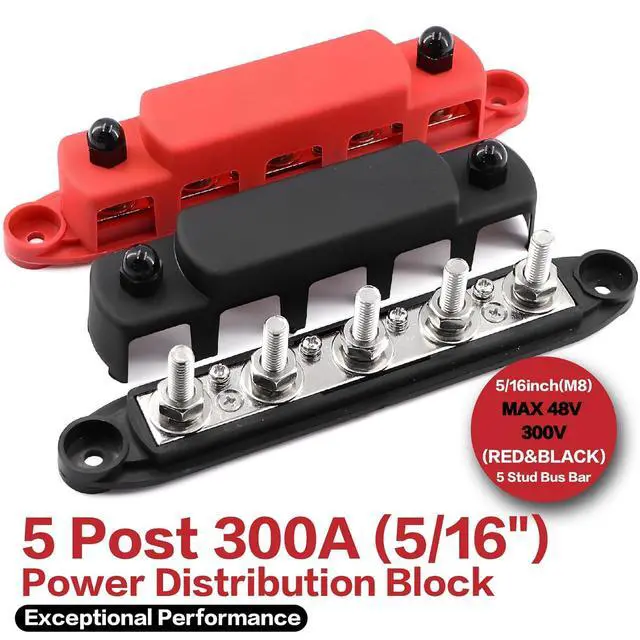

300A Bus Bar 5 Post 12V-48V DC Power Distribution Block,5 * 5/16"(M8) Battery Terminal Studs with Cover and Wire Lugs for Wiring,Automotive,Marine,Battery busbar (Red&Black)
- 300A M8 Stud Bus Bar:Maximum working voltage is DC 48V & up to 300 Amps.

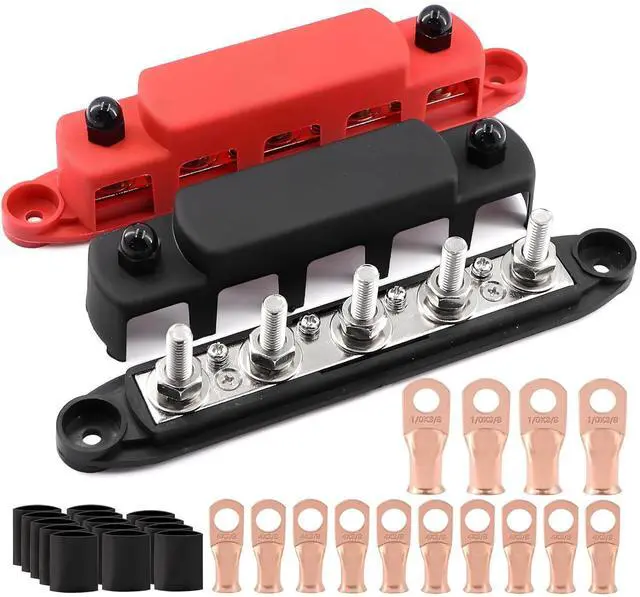

- Package Includes1 pair Positive Bus Bar, 4pcs 1/0 AWG 3/8" Copper Cable Lugs, 10pcs 4 AWG 3/8" Copper Cable Lugs ,14pcs 3:1 Adhesive Lined Heat Shrink Tubing.

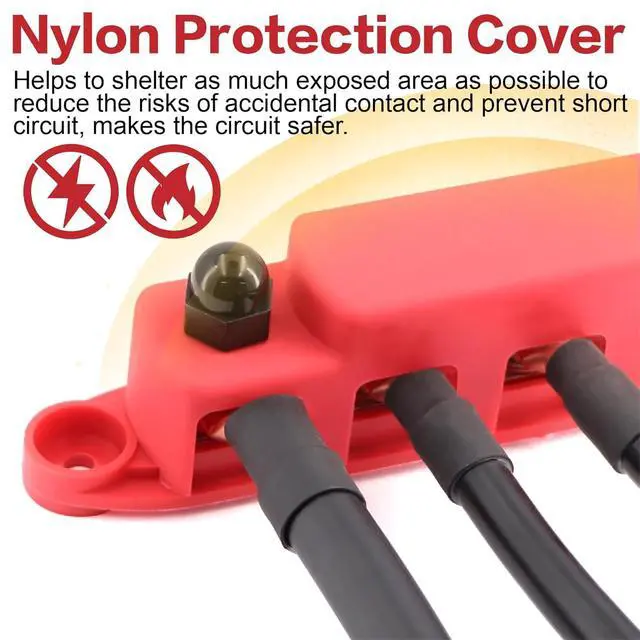

- Each power busbar will come with a protect cover and two nuts,which could shelter as much exposed area,prevent short circuit, makes the circuit safer.The exposed areas on both sides allow 180° wire installation.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Easy Installation: Just need to use the screws to fix the battery terminal distribution block in their respective positions, then use wiring on the screw, tighten the nut to fix.
Wide Application: This 5 post busbar suitable for automotive, car, truck, marine, boat, solar wiring.

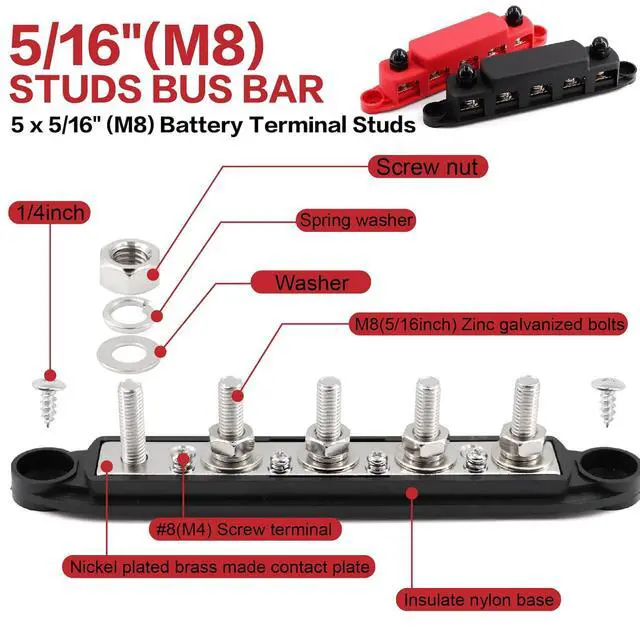

Description: The 12v-48v bus bar is 5 x M8(5/16") stud design, can allow max 300A current pass through the battery terminal block. You just need to fix the surface of the washer nut installation can be more convenient and reliable installation.

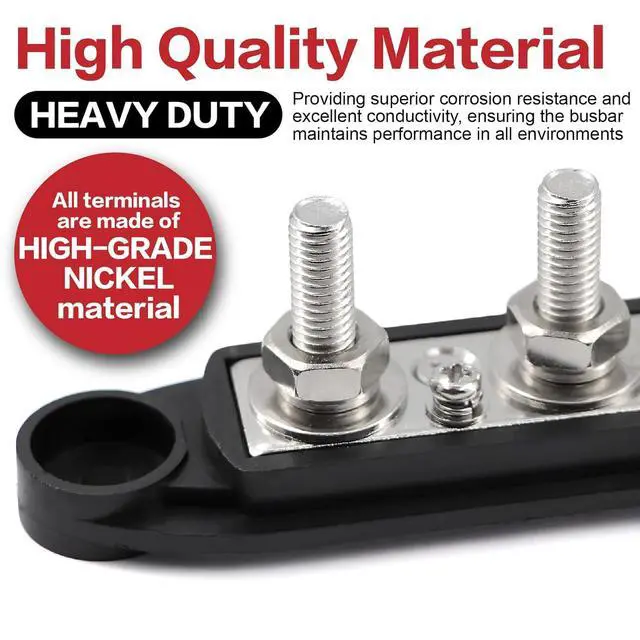

Includes a red positive power distribution block and a black negative power distribution block. Nickle plated brass busbar plates offer low resistance, maximum conductivity, and corrosion protection. It not only has large battery terminals, but also smaller screw terminals for attaching lower gauge wire DC components if needed. 5* Stainless Steel Studs Per Block Making This Busbar Suitable For a Variety Of Applications.
300A 48V Power Distribution BlockFeature: This is a very robust 300 Amp buss bar with five posts, but it also can serve as a distribution point for other full circuits.

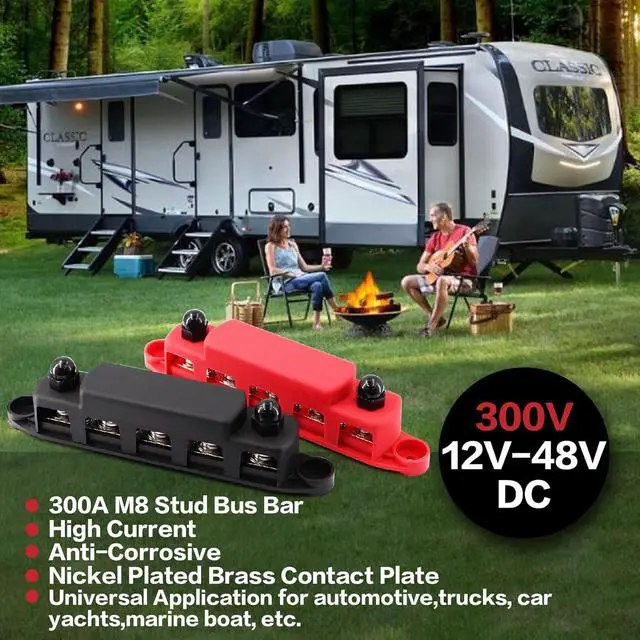

Application: Ideal for Automotive, Solar and Marine Use - Our 300 AMP 5-post power distribution block busbar is ideal for automotive, car audio, solar, marine use.
Whether you need to consolidate, distribute, or protect your electrical system, our bus bars are excellent for managing wires and distributing power.
MAX CURRENT: 300A;
Terminal Studs: 5 x 3/8" (M10) Stud Terminal;
Color: Black+Red.
Wide Application: This 5 post busbar suitable for automotive, car, truck, marine, boat, solar wiring.
Description: The 12v-48v bus bar is 5 x M8(5/16") stud design, can allow max 300A current pass through the battery terminal block. You just need to fix the surface of the washer nut installation can be more convenient and reliable installation.
Includes a red positive power distribution block and a black negative power distribution block. Nickle plated brass busbar plates offer low resistance, maximum conductivity, and corrosion protection. It not only has large battery terminals, but also smaller screw terminals for attaching lower gauge wire DC components if needed. 5* Stainless Steel Studs Per Block Making This Busbar Suitable For a Variety Of Applications.
300A 48V Power Distribution BlockFeature: This is a very robust 300 Amp buss bar with five posts, but it also can serve as a distribution point for other full circuits.
Application: Ideal for Automotive, Solar and Marine Use - Our 300 AMP 5-post power distribution block busbar is ideal for automotive, car audio, solar, marine use.
Whether you need to consolidate, distribute, or protect your electrical system, our bus bars are excellent for managing wires and distributing power.
Specifications
: Max Rating: 48V DC;MAX CURRENT: 300A;
Terminal Studs: 5 x 3/8" (M10) Stud Terminal;
Color: Black+Red.
