RF Remote Control System, 12VDC 4-Motor Polarity Reversing with Auxiliary Switch Leads - RF340-4PR-ASL
- No Additional Cost: You pay nothing for repairs parts, labor, and shipping included.
- Coverage: Plan starts on the date of purchase. Malfunctions covered after the manufacturer's warranty. Power surges covered from day one. Real experts are available 24/7 to help with set-up, connectivity issues, troubleshooting and much more.
- Easy Claims Process: File a claim anytime online or by phone. Most claims approved within minutes. If we cant repair it, well send you an Amazon e-gift card for the purchase price of your covered product or replace it.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product Eligibility: Plan must be purchased with a product or within 30 days of the product purchase. Pre-existing conditions are not covered.
Terms &

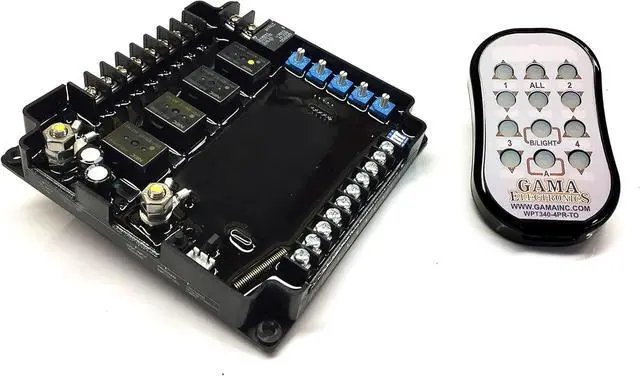

Remote Control System with 4 12VDC polarity reversing outputsRF Remote Control System, 12VDC 4-Motor Polarity Reversing with Auxiliary Switch Leads The RF340-4PR-ASL is a RF Transmitter and Receiver operating at a fixed frequency of 340 MHz. The Receiver operates from 12VDC and provides four polarity reversing outputs. The Receiver has terminal blocks for connecting the input power and output to the 4 polarity reversing relay outputs. Each Transmitter has a unique address that is transmitted when a button is pressed. A program button is provided on the Receiver to program the Transmitter (s) address into the Receivers memory. An LED on the Receiver indicates the Receivers programming status and illuminates when the Receiver is energized. The operating range is at least 100 feet. The Transmitter has two buttons assigned to each of the four outputs. The up (^) button runs the motor in one direction and down (v) button runs the motor in the opposite direction.
Operating temperature range: 0°F to 160°F. Typical transmit range is 100 feet. Remote control operation can be programmed for momentary or latching operation.
Excellent replacement for Atwood Leveling Jack systems.
Terms &
Details
: More information about this protection plan is available within the Product guides and documents section. Simply click User Guide for more info. Terms & Conditions will be available in Your Orders on Amazon. Asurion will also email your plan confirmation with Terms & Conditions to the address associated with your Amazon account within 24 hours of purchase.Remote Control System with 4 12VDC polarity reversing outputsRF Remote Control System, 12VDC 4-Motor Polarity Reversing with Auxiliary Switch Leads The RF340-4PR-ASL is a RF Transmitter and Receiver operating at a fixed frequency of 340 MHz. The Receiver operates from 12VDC and provides four polarity reversing outputs. The Receiver has terminal blocks for connecting the input power and output to the 4 polarity reversing relay outputs. Each Transmitter has a unique address that is transmitted when a button is pressed. A program button is provided on the Receiver to program the Transmitter (s) address into the Receivers memory. An LED on the Receiver indicates the Receivers programming status and illuminates when the Receiver is energized. The operating range is at least 100 feet. The Transmitter has two buttons assigned to each of the four outputs. The up (^) button runs the motor in one direction and down (v) button runs the motor in the opposite direction.
Specifications
Input voltage: 12VDC with reverse polarity protection.Operating temperature range: 0°F to 160°F. Typical transmit range is 100 feet. Remote control operation can be programmed for momentary or latching operation.
Excellent replacement for Atwood Leveling Jack systems.
