TM570 Fiber Optic Tester 3-in-1 Optical Power Meter -70~+10 dBm, VFL Visual Fault Locator & RJ45 Cable Tester, Rechargeable Li-ion, FC/SC/ST, Compact 130g Fiber Light Meter

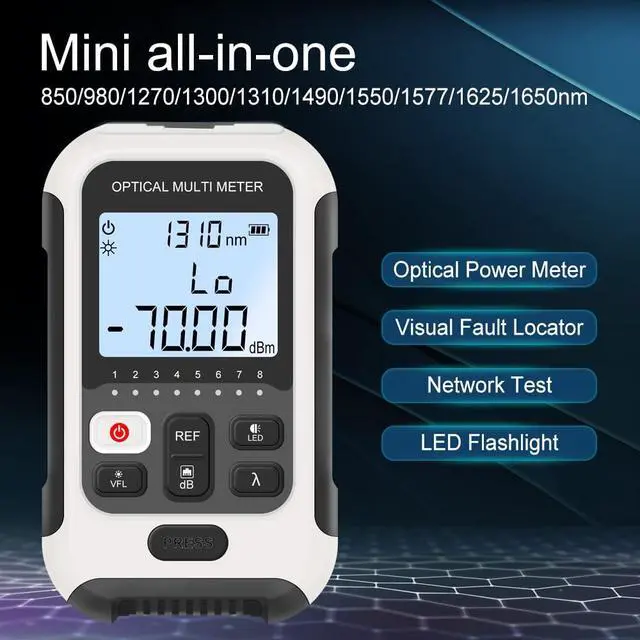

- 3-IN-1 FIBER OPTIC FIELD TESTER OPM + VFL + RJ45 IN ONE COMPACT DEVICE TM570 combines Optical Power Meter (-70 to +10 dBm, 10 wavelengths 800-1700nm), Visual Fault Locator (bright red light, 10-15km range), and RJ45 network cable continuity tester eliminating three separate tools from your kit. At 130g with rechargeable Li-ion battery, TM570 is designed for fiber technicians who need a complete measurement kit in one pocket-sized device.
- HIGH ACCURACY OPTICAL POWER METER 10 WAVELENGTHS 800-1700nm Measures optical signal power from -70 to +10 dBm with ±0.2 dB accuracy across 10 wavelengths (800/850/980/1300/1310/1490/1550/1625/1650/1700nm) the widest wavelength range in 's OPM line, covering GPON (1310/1490/1550nm), XGS-PON, and legacy multimode (850/1300nm) networks. Universal 2.5mm interface accepts FC, SC, and ST connectors.
+
+
Overview
Specs
Reviews

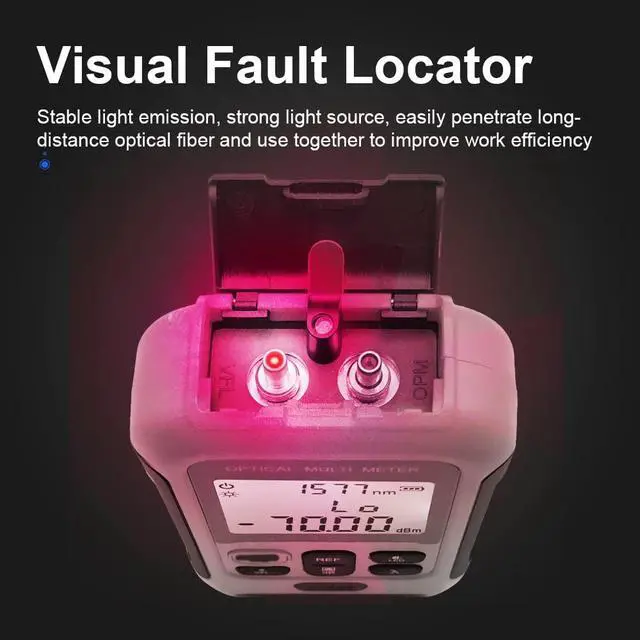

BRIGHT RED VISUAL FAULT LOCATOR FIND FIBER BREAKS & BENDS INSTANTLY Built-in VFL emits high-power red light (650nm) visible through fiber jacket, enabling fast identification of breaks, macro-bends, bad splices, and dirty connectors without disconnecting active fibers. Continuous and flash modes for different fault-finding scenarios. Compatible with APC and UPC connector types via FC/SC/ST interfaces.

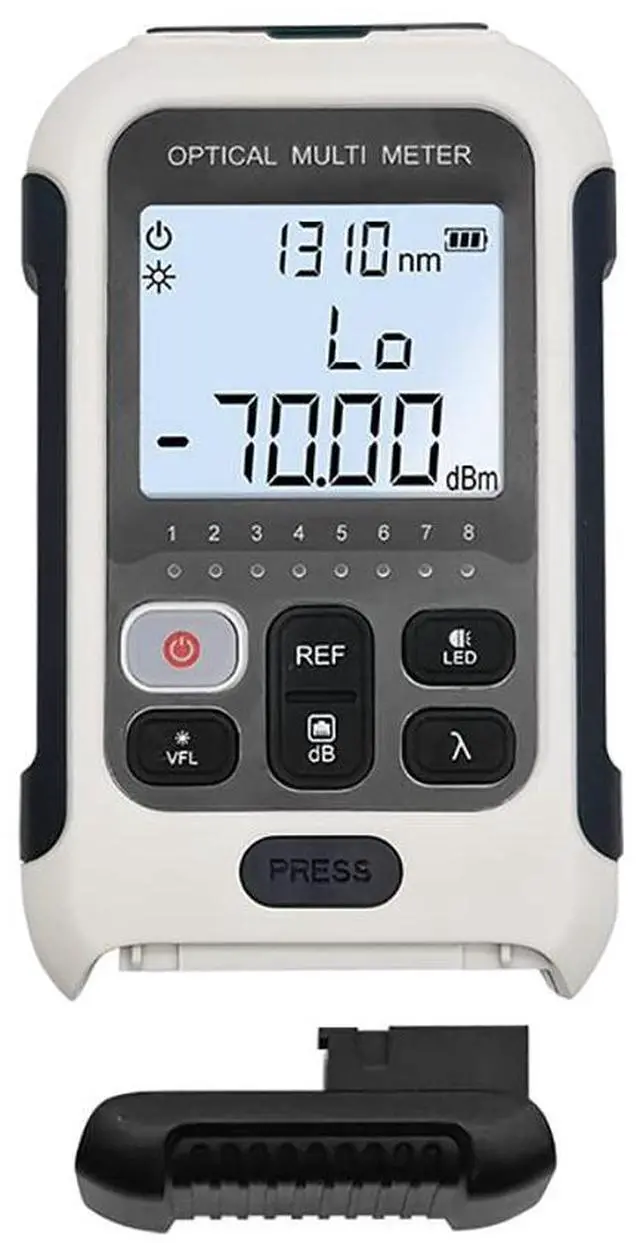

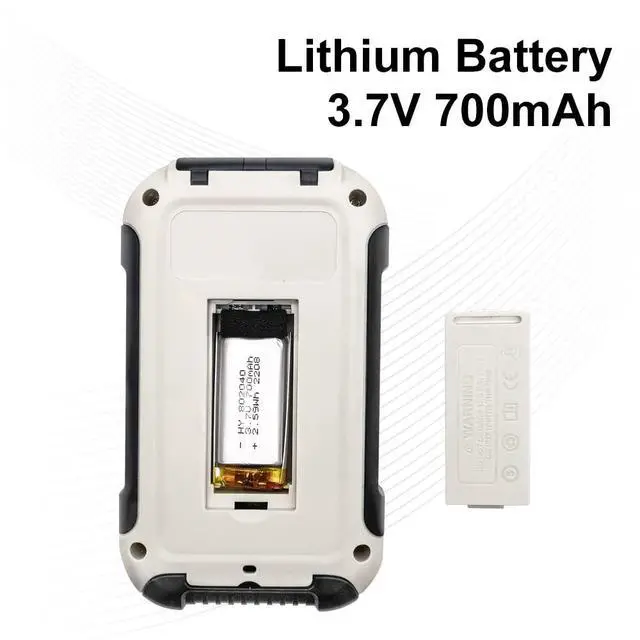

RECHARGEABLE Li-ion BATTERY + AUTO POWER-OFF NO BATTERY REPLACEMENT COST Built-in rechargeable Li-ion battery charges via USB no AA/AAA battery purchases needed in the field. Auto power-off (10 minutes) prevents accidental drain. Backlit LCD display for low-light cabinet and underground vault work. Wavelength memory function retains last-used wavelength setting between power cycles. Compact design with LED flash lighting for work in dark enclosures.

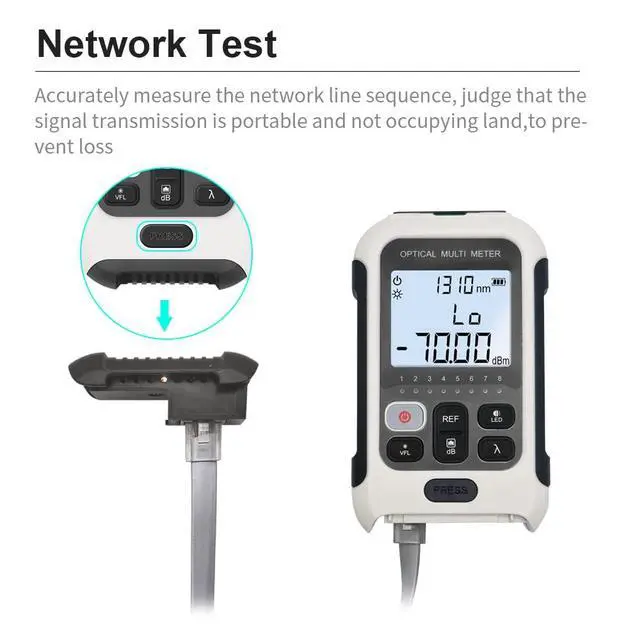

COMPLETE FIBER FIELD KIT FOR FTTH INSTALLERS & NETWORK TECHNICIANS TM570 handles optical power measurement, VFL fault location, and RJ45 cable continuity testing for FTTH/FTTB/CATV and enterprise network maintenance. Pairs with AI-9, SD-9 and all major fusion splicers. RJ45 tester verifies cable wiring continuity up to 300m for CAT5/CAT5e/CAT6.

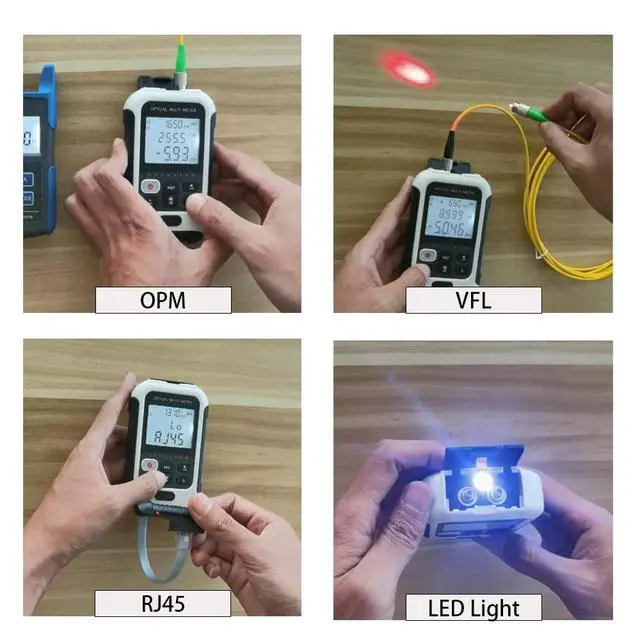

This 3 in 1 hand-held Optical Power Meter and red-light integrated tester is mainly used for continuous optical signal power measurement, optical fiber link loss testing and optical fiber line on-off testing. Widely used in optical cable construction and maintenance, optical fiber communication, optical cable sensing, optical CATV and other fields.
Specification for Optical Power Meter OPM
Measurement Range: -70~+10 dBm
Calibrated Wavelength: 850/980/1270/1300/1310/1490/1550/1577/1625/1650nm
Sensor Type: InGa As
Accuracy: ± 0.2 dB
Power Measurement Linearity: ± 0.1 dB
Display Resolution: ± 0.1 dB
Connector: Universal jointSpecification for Visual Fault Locator VFL
Connector: 2.5 mm Universal
Wavelength: 650nm±30nm
Output modes: Continuous (CW), 1Hz/2HzPower Source: Li-ion battery
Dimension: 120* 70.5 * 27.5 mm / about 130g Standard Packing
Tester with battery *1
USB cable line
Users Manual *1
RECHARGEABLE Li-ion BATTERY + AUTO POWER-OFF NO BATTERY REPLACEMENT COST Built-in rechargeable Li-ion battery charges via USB no AA/AAA battery purchases needed in the field. Auto power-off (10 minutes) prevents accidental drain. Backlit LCD display for low-light cabinet and underground vault work. Wavelength memory function retains last-used wavelength setting between power cycles. Compact design with LED flash lighting for work in dark enclosures.
COMPLETE FIBER FIELD KIT FOR FTTH INSTALLERS & NETWORK TECHNICIANS TM570 handles optical power measurement, VFL fault location, and RJ45 cable continuity testing for FTTH/FTTB/CATV and enterprise network maintenance. Pairs with AI-9, SD-9 and all major fusion splicers. RJ45 tester verifies cable wiring continuity up to 300m for CAT5/CAT5e/CAT6.
This 3 in 1 hand-held Optical Power Meter and red-light integrated tester is mainly used for continuous optical signal power measurement, optical fiber link loss testing and optical fiber line on-off testing. Widely used in optical cable construction and maintenance, optical fiber communication, optical cable sensing, optical CATV and other fields.
Specification for Optical Power Meter OPM
Measurement Range: -70~+10 dBm
Calibrated Wavelength: 850/980/1270/1300/1310/1490/1550/1577/1625/1650nm
Sensor Type: InGa As
Accuracy: ± 0.2 dB
Power Measurement Linearity: ± 0.1 dB
Display Resolution: ± 0.1 dB
Connector: Universal jointSpecification for Visual Fault Locator VFL
Connector: 2.5 mm Universal
Wavelength: 650nm±30nm
Output modes: Continuous (CW), 1Hz/2HzPower Source: Li-ion battery
Dimension: 120* 70.5 * 27.5 mm / about 130g Standard Packing
Tester with battery *1
USB cable line
Users Manual *1
