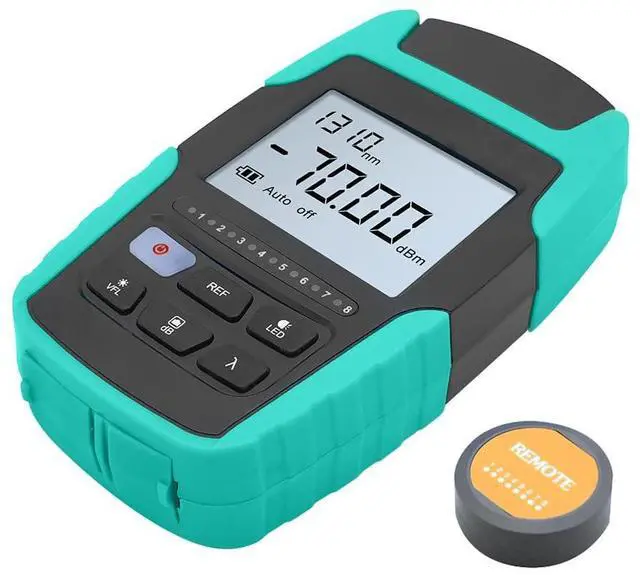

TM530 4-in-1 Fiber Optic Tester Optical Power Meter -70~+10 dBm, 10km VFL Visual Fault Locator, RJ45 Cable Tester & LED Light, Rechargeable, FC/SC/ST Fiber Light Meter

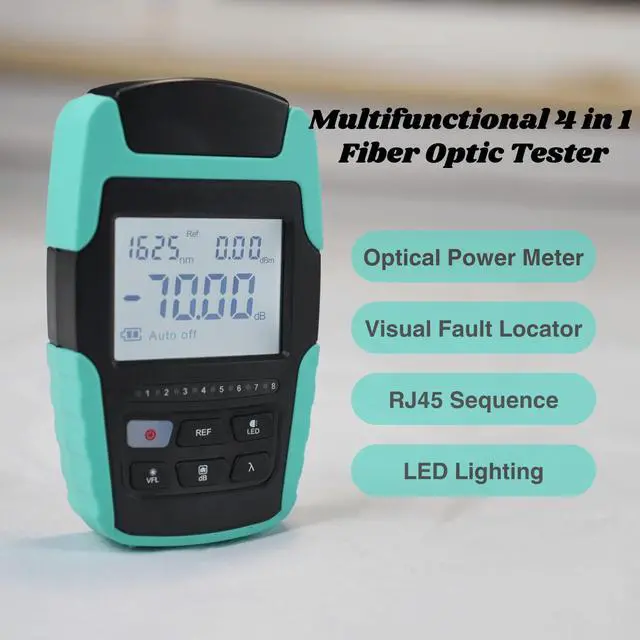

- 4-IN-1 COMPLETE FIBER FIELD KIT OPM + VFL + RJ45 + LED IN ONE DEVICE TM530 integrates four essential field tools: Optical Power Meter (-70 to +10 dBm, 10 wavelengths 800-1700nm), 10km Visual Fault Locator (red light), RJ45 network cable continuity tester (up to 300m), and LED work light for dark enclosures replacing four separate tools with one rechargeable pocket device weighing just 140g.

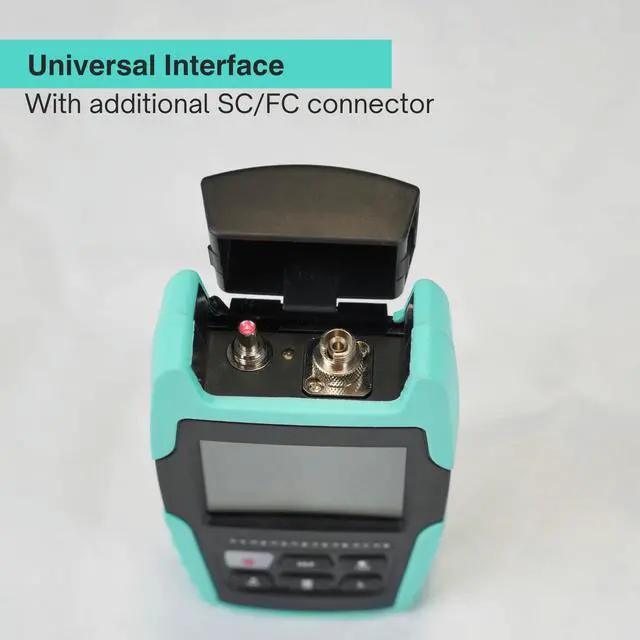

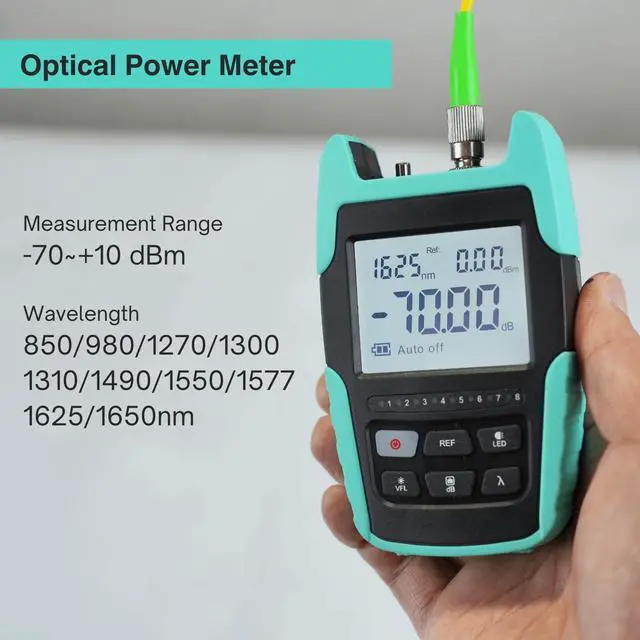

- 10 WAVELENGTHS 800-1700nm WIDEST RANGE OPM IN LINE Measures optical signal power across 10 wavelengths (800/850/980/1300/1310/1490/1550/1625/1650/1700nm) with ±0.2 dB accuracy covering GPON (1310/1490/1550nm), XGS-PON, CWDM, and legacy multimode (850/1300nm) networks without wavelength limitation. Universal 2.5mm interface accepts FC, SC, and ST connectors. Self-calibration function for field accuracy verification.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

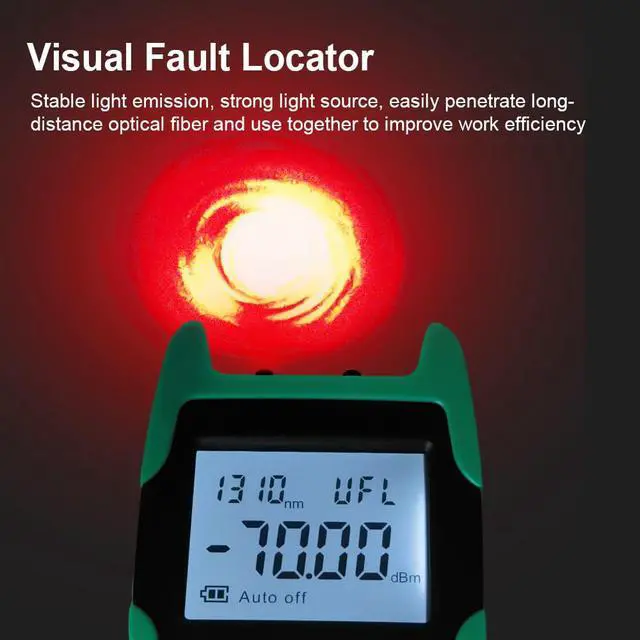

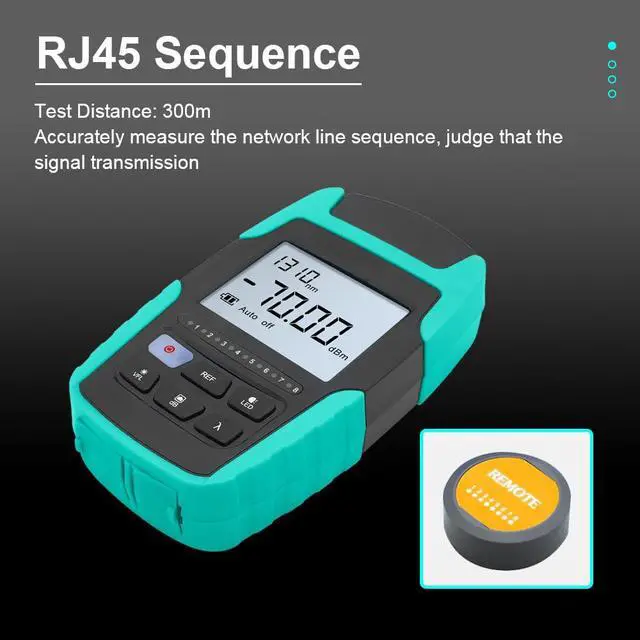

10KM VFL FAULT LOCATOR + 300M RJ45 CABLE TESTER DUAL NETWORK TESTING Built-in VFL (650nm, continuous/flash modes) locates fiber breaks, bends, and bad splices up to 10km. Integrated RJ45 tester checks CAT5/CAT5e/CAT6 cable continuity and wiring sequence up to 300m essential for hybrid FTTH/Ethernet installations where both fiber and copper testing are required in the same job.

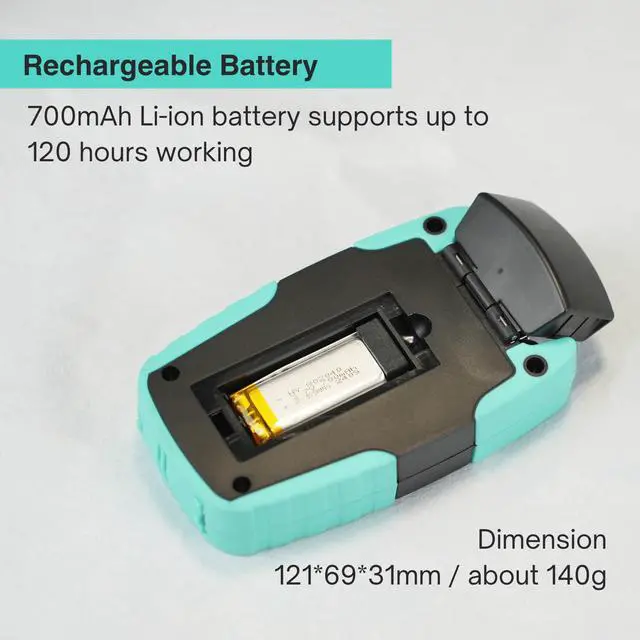

RECHARGEABLE BATTERY + LED WORK LIGHT DESIGNED FOR DARK FIELD CONDITIONS USB rechargeable Li-ion battery eliminates field battery replacement. Built-in LED flash light illuminates splice closures, underground vaults, and wall outlets for hands-free work lighting the feature that sets TM530 apart from 3-in-1 alternatives. Auto power-off (10 minutes), backlit LCD, and wavelength memory complete the field-ready feature set. Unique light green color for easy identification in shared tool bags.
TM530 THE ALL-IN-ONE TOOL FOR HYBRID FTTH & NETWORK INSTALLATIONS Designed for fiber installers and network technicians working on projects that combine both fiber optic and copper Ethernet infrastructure. Compatible with all major fusion splicers.
Size: 121×69×31mm / 140g.
RECHARGEABLE BATTERY + LED WORK LIGHT DESIGNED FOR DARK FIELD CONDITIONS USB rechargeable Li-ion battery eliminates field battery replacement. Built-in LED flash light illuminates splice closures, underground vaults, and wall outlets for hands-free work lighting the feature that sets TM530 apart from 3-in-1 alternatives. Auto power-off (10 minutes), backlit LCD, and wavelength memory complete the field-ready feature set. Unique light green color for easy identification in shared tool bags.
TM530 THE ALL-IN-ONE TOOL FOR HYBRID FTTH & NETWORK INSTALLATIONS Designed for fiber installers and network technicians working on projects that combine both fiber optic and copper Ethernet infrastructure. Compatible with all major fusion splicers.
Size: 121×69×31mm / 140g.
