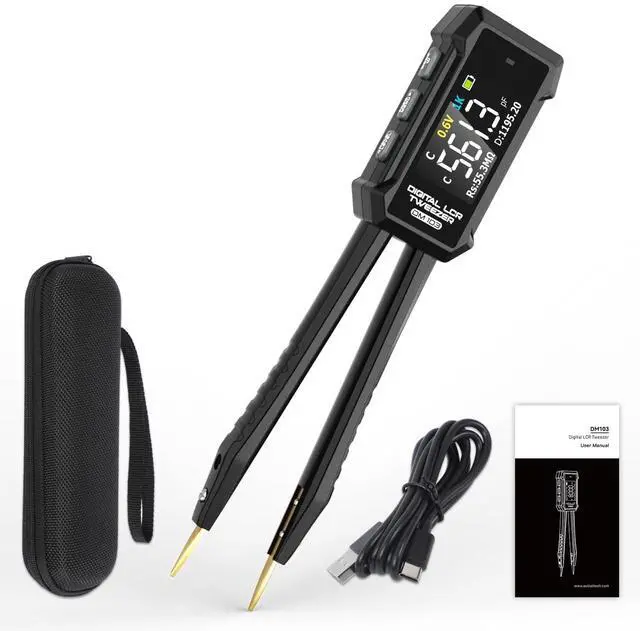

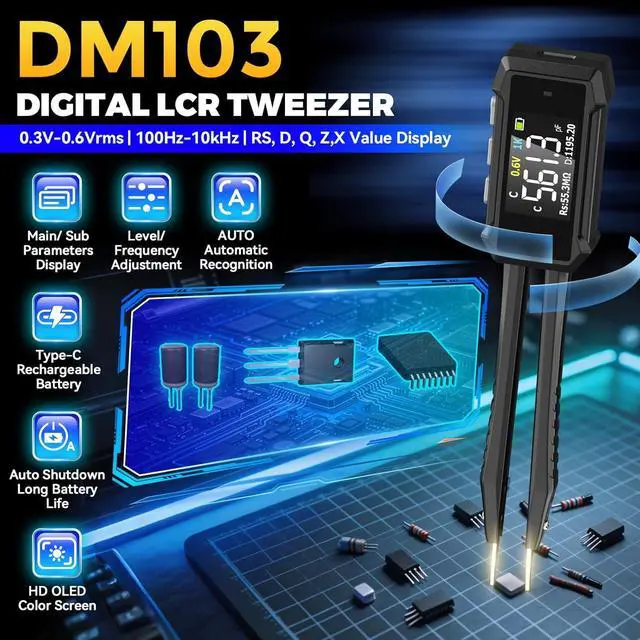

DM103 LCR Meter Tweezer, 0.5% High Accuracy Digital SMD Tester for Inductance Capacitance Resistance, 10KHz Adjustable Frequency with Calibration

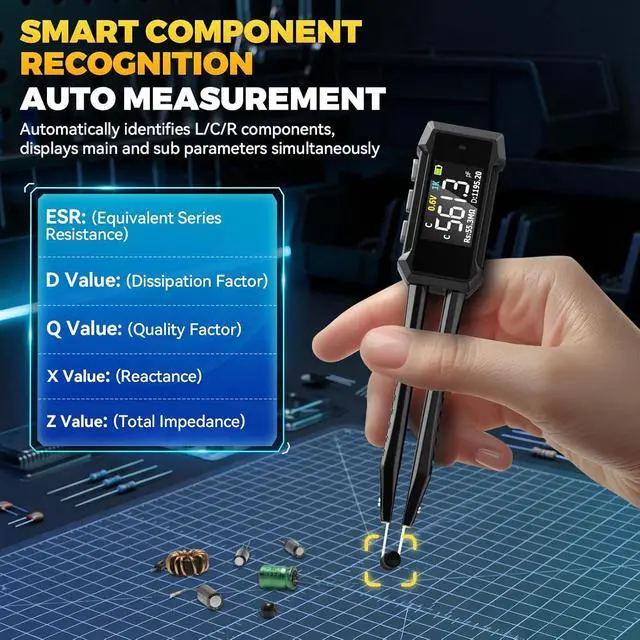

- Auto Identify & All-in-One LCR Measurement Automatically recognizes resistors, capacitors, inductors in milliseconds Measures L/C/R/D/Q/Rs, plus diode & continuity testing Ideal for SMD soldering, circuit repair & electronics DIY

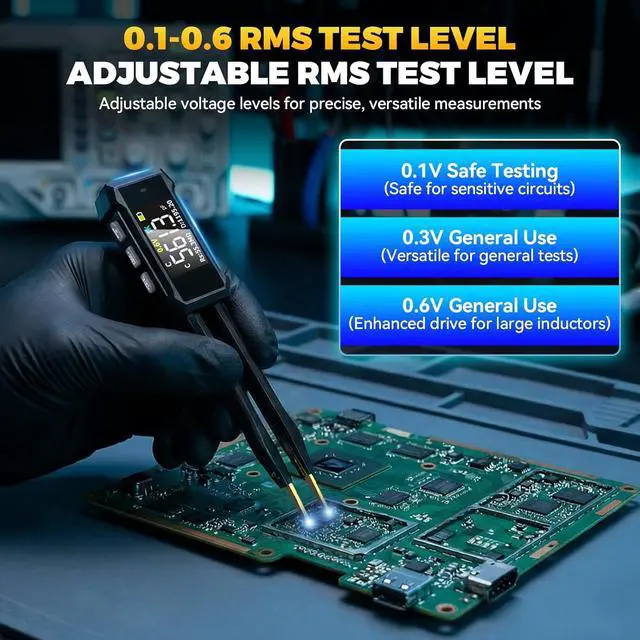

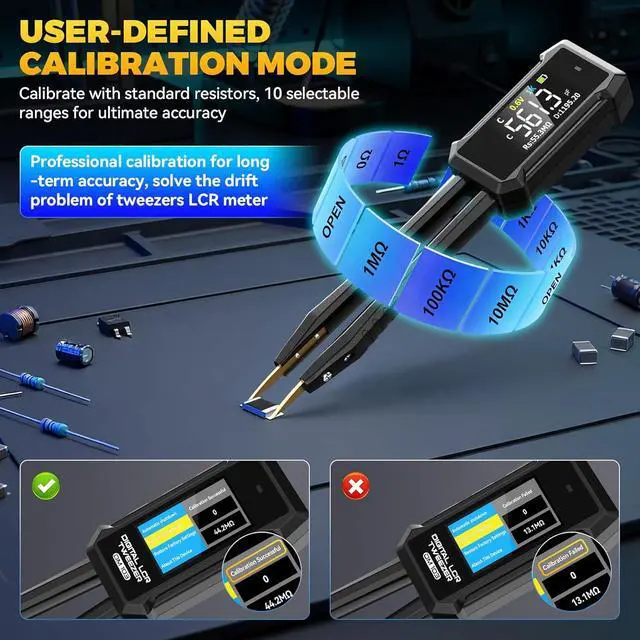

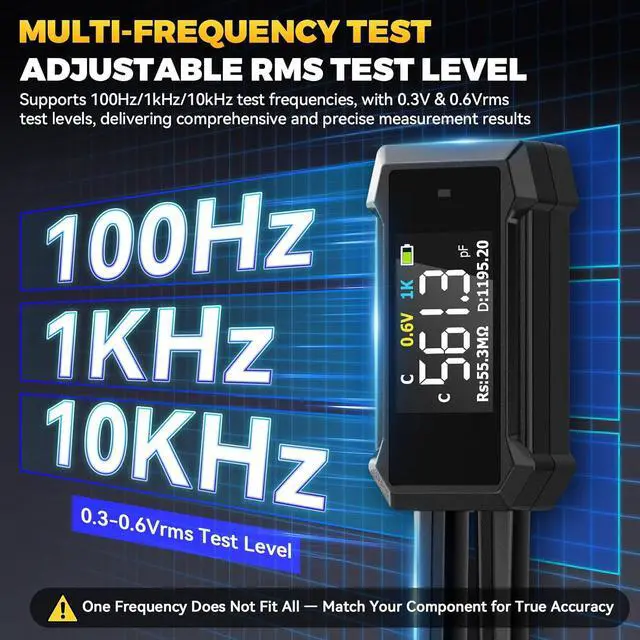

- 0.5% Ultimate Accuracy \ User-Defined Calibration \ 100Hz-10KHz Adjustable FrequencyOur LCR tweezers deliver industry-leading 0.5% basic accuracy, fixing the common long-term accuracy drift flaw of ordinary LCR meters via exclusive user-defined calibration. Calibrate with standard resistors across 10 selectable ranges to maintain long-term precision and avoid measurement errors from device aging. It also has 3 adjustable test frequencies (100Hz, 1KHz, 10KHz) and 3 optional test voltages (0.1V, 0.3V, 0.6V), meeting diverse component testing needs, and delivering stable, accurate data for professional technicians and electronics enthusiasts
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Ultra-Wide Range & High Resolution Measurement Resistance: 10m~10M \
Capacitance: 1pF~20mF \
Inductance: 1uH~60H Min. resolution up to 1m/1pF/1uH for tiny SMD components Displays main & secondary parameters simultaneously, no repeated mode switching
Ergonomic Tweezer Design & One-Hand Operation Compact handheld tweezer design, no messy test leads One-hand operation to clamp tiny SMD components for fast testing Detachable gold-plated tips for durable, low-contact-resistance measurement

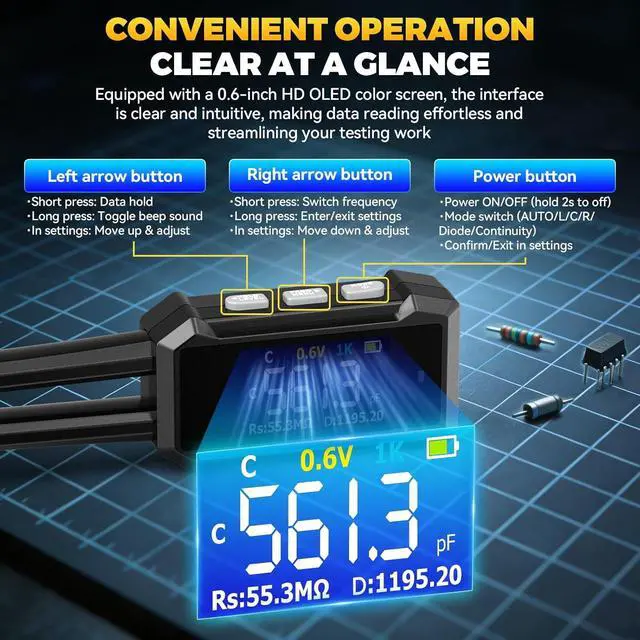

HD Flip OLED Screen & Smart Power Management HD OLED screen with 10%-100% adjustable brightness, left/right screen flip Built-in 3.7V 400mAh rechargeable Li-polymer battery, Type-C charging Custom auto power off (5-120min), Chinese/English bilingual, firmware upgrade
Capacitance: 1pF~20mF \
Inductance: 1uH~60H Min. resolution up to 1m/1pF/1uH for tiny SMD components Displays main & secondary parameters simultaneously, no repeated mode switching
Ergonomic Tweezer Design & One-Hand Operation Compact handheld tweezer design, no messy test leads One-hand operation to clamp tiny SMD components for fast testing Detachable gold-plated tips for durable, low-contact-resistance measurement
HD Flip OLED Screen & Smart Power Management HD OLED screen with 10%-100% adjustable brightness, left/right screen flip Built-in 3.7V 400mAh rechargeable Li-polymer battery, Type-C charging Custom auto power off (5-120min), Chinese/English bilingual, firmware upgrade
