PROCET Gigabit PoE Extender, 1 in 2 Out Ethernet Splitter, 2×IEEE802.3at/PoE+ Output (Total 60W) & 1×IEEE802.3bt/PoE++ Input, 10/100/1000Mbps, IP40, -40°F to 149°F, 6kv Surge Protection, PT-PEX02GB
- Input Port Specification: Accepts a single input port with a voltage range of 44-57Vdc 1.5Amax, compliant with IEEE 802.3af/at/bt/PoE++ standards for compatibility with various Power Sourcing Equipment (PSE) such as PoE injectors or switches.

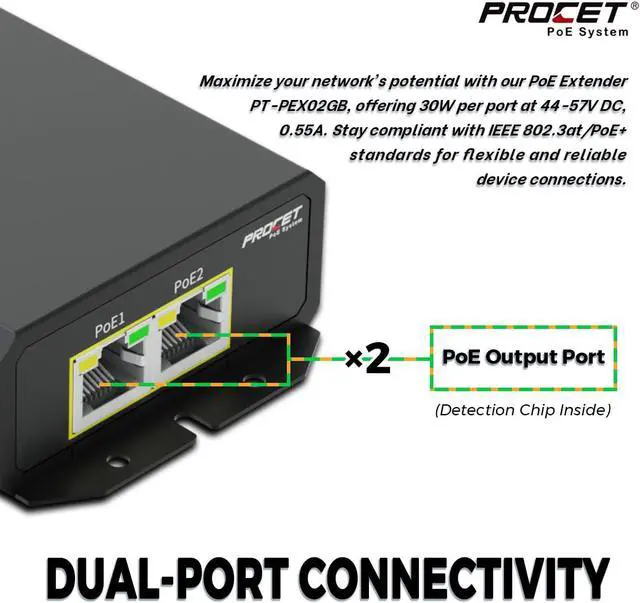

- Output Ports Specification: The 2 Port extender provides a total output power of 60W, with each port capable of supplying 30W at a voltage range of 44-57Vdc 0.55A, adhering to IEEE 802.3at/PoE+ standards.Supports a range of PoE Powered Devices (PDs), including IP Cameras, wireless APs, Microwave radio, IoT applications, door locks, displays, POS, and information kiosks.

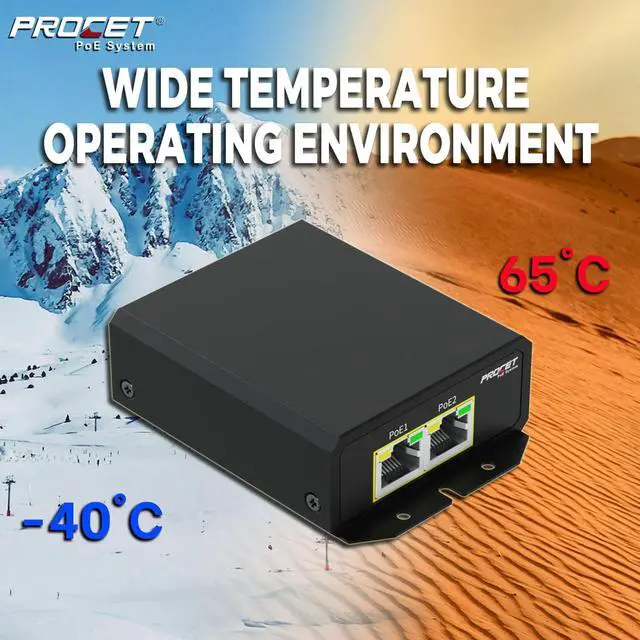

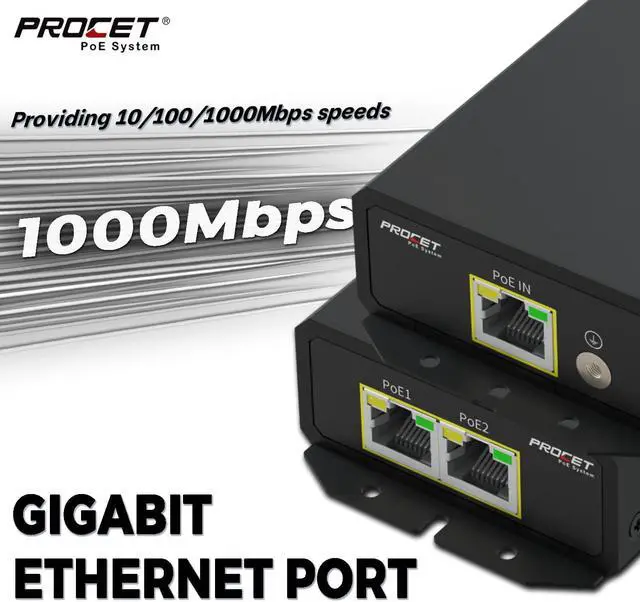

- Industrial Design: High-impact metal shell. IP40 rated. Work Temp: -40°F to 149°F (-40 to 65). 6KV Surge Protection. Supports data rates of 10/100/1000Mbps.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Ease of
Use: Plug and play, simplifying installation and use.

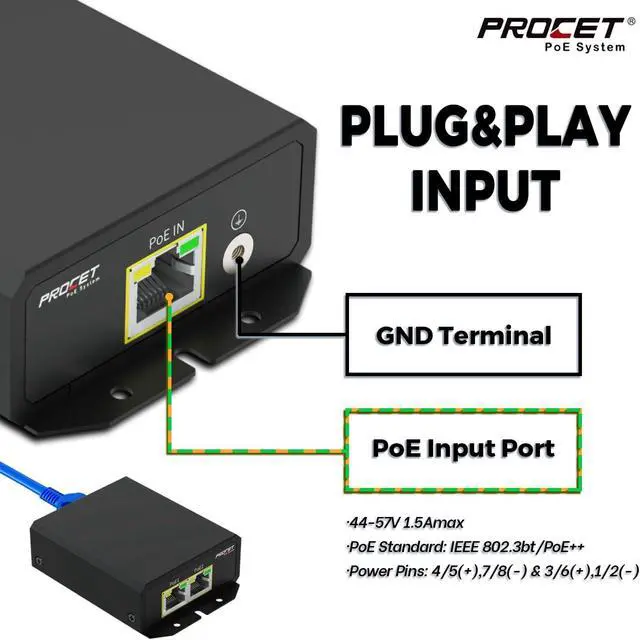

Input power pins: 4/5(+), 7/8(-) & 3/6(+), 1/2(-), Output: 1/2 (-), 3/6 (+).

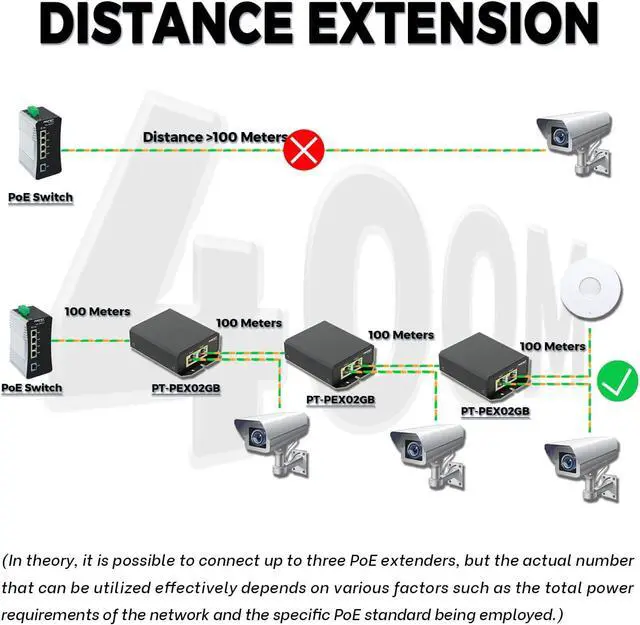

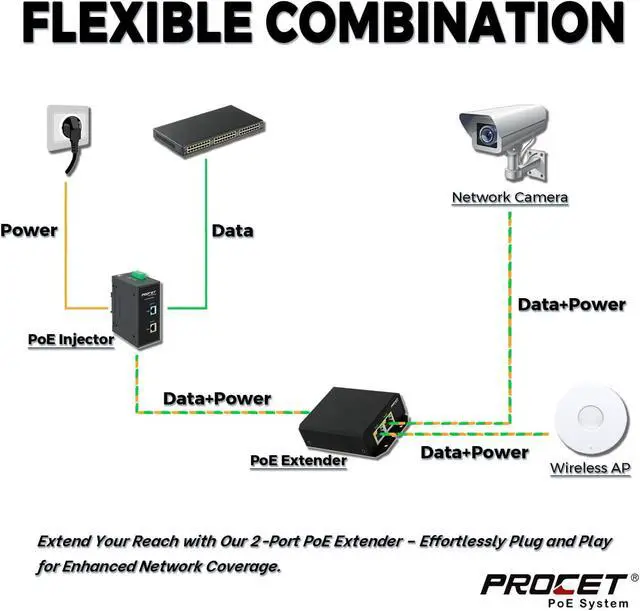

Network Extension Capabilities: This device extends the reach of a PoE network connection beyond the standard 100m limit, allowing a total distance of up to 200m (656 ft. ) from the PoE PSE to the PD. Daisy chain support allows for the connection of up to 3 PoE Extenders, potentially extending the PoE+ network by an additional 400m (1, 312 ft. ).
Use: Plug and play, simplifying installation and use.
Input power pins: 4/5(+), 7/8(-) & 3/6(+), 1/2(-), Output: 1/2 (-), 3/6 (+).
Network Extension Capabilities: This device extends the reach of a PoE network connection beyond the standard 100m limit, allowing a total distance of up to 200m (656 ft. ) from the PoE PSE to the PD. Daisy chain support allows for the connection of up to 3 PoE Extenders, potentially extending the PoE+ network by an additional 400m (1, 312 ft. ).
