DC 12V Electronic Load Tester, Load Battery Capacity Tester Module, 0-10A 100W Constant Current Discharge Monitor for Power Bank Capacity Testing

MAXIMUM POWER: The current electric discharge monitor features 100W large power to provide a constant and stable use, can bring you more convenience
: This DC load battery tester is made of material to ensure a long term service, and it's construction could also provide a better and long-lasting performance

Description:

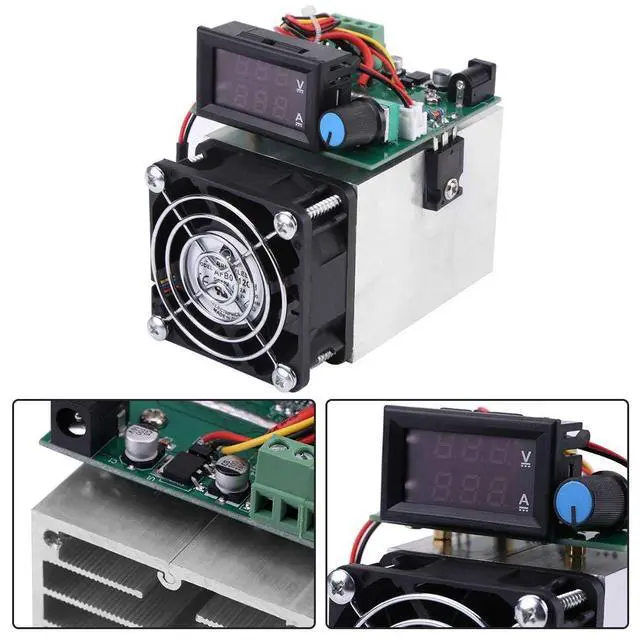

This Electronic Load has the high speed fan, which can automatically change the speed. heat sink can serve a long time performance. It supports multiple protections of overheat, overpower, over-voltage, reserve polarity, and power supply voltage abnormity.
Features:

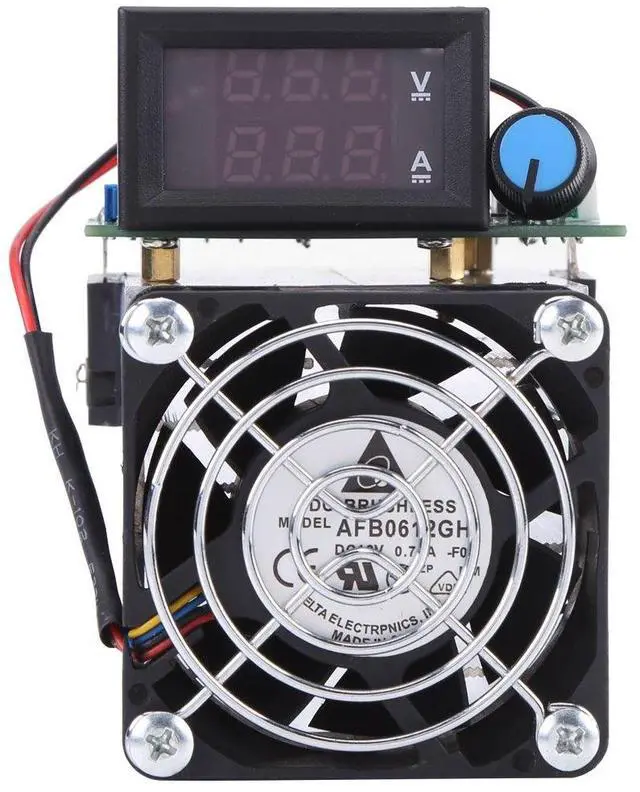

The high speed of the fan can change according to the heat sink temperature. of over-heating, overpower, over voltage, reserve polarity, and power supply voltage abnormity. Equipped with industrial large tooth heat sink, dust-resistant, which can run for a long time. construction for long-lasting performance. Professional test module for detecting discharge battery capacity.
Specification:
Power Supply: DC12V±5%
Fan Current: 0.72A
Constant Discharge Current Range: 0-10A (whole machine)
Working Mode: Single Mode Constant Current (CC)
Discharge Current.
Error: 0.7 %- 0.01A
.
Capacity Test Error: 0.5A 2.5 %, 2A 1.5 %, 5A and 1.2 %
.
Power: 100W
Input Interface: 5.5 x 2.5 mm

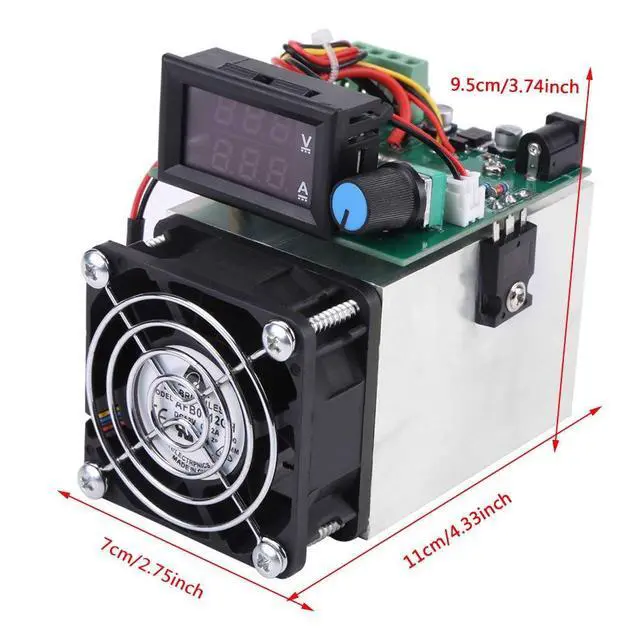

Size: Approx. 11 x 9.5 x 7cm / 4.3 x 3.7 x 2.7 inch
Weight: 385g
Package List:
1 x Electronic Load
Instructions:

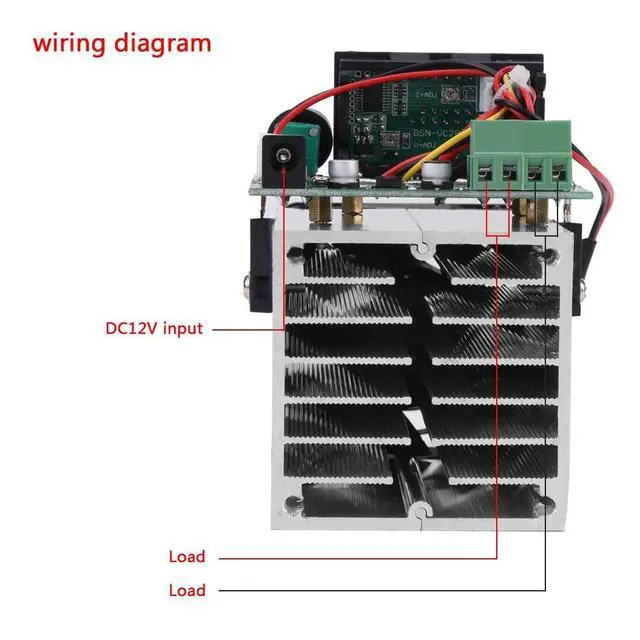

1. Turn on the 12V power supply to enter the electronic load mode, ensure that in the stop state (knob anti-clockwise minimum) connect the measured power to the test input power port pay attention to the polarity do not connect the wrong!

2. Set the constant current through the knob!
Note: Because it is open work so there is no internal voltage limit and power limit, but the normal work should be below 100V, below 100W work!
