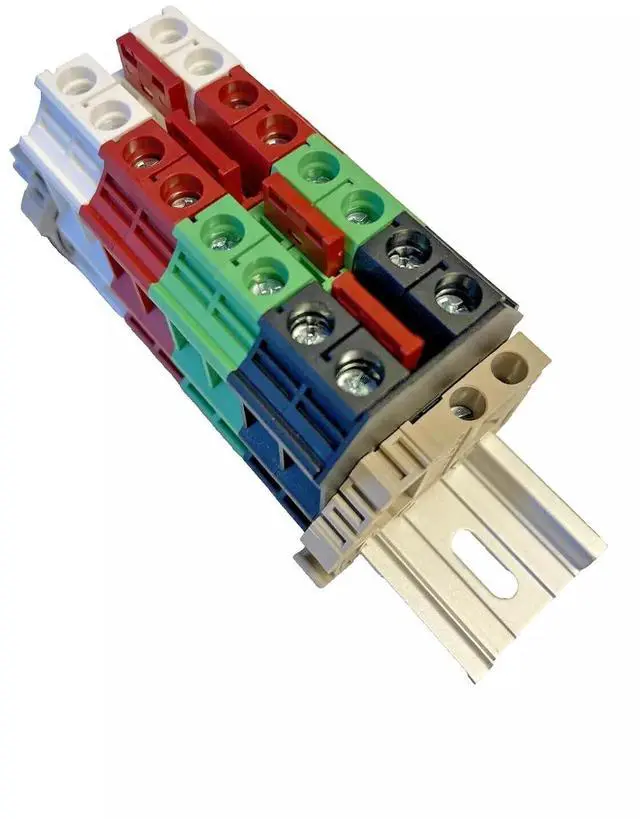

Main image of Power Distribution UL Dinkle Parallel Assembly DK10N White Red Green Black with Jumpers DIN Rail Terminal Blocks, 6-20 AWG, 60 Amp, 600 Volt L1 L2 N GND

Shop All WUQ Products | Visit Grandwood Tech Limited Store

Power Distribution UL Dinkle Parallel Assembly DK10N White Red Green Black with Jumpers DIN Rail Terminal Blocks, 6-20 AWG, 60 Amp, 600 Volt L1 L2 N GND

Be the first to review this product...

Made in USA
Parallel Assembly for Power Distribution or Combining
UL 600V Rating

Overview

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

UL 6-20 AWG Rating
UL 60A Rating
Each color is in common
Technical Data (UL) Rated Voltage: 600V
Rate Current: 60A Conductor Cross-section, Solid
(AWG): 20-6 Conductor Cross-section, Flexible
(AWG): 20-6
Rated Impulse Withstand Voltage: 8KV
Torque (N-m): 1.3
Screw: M4
Wire Strip Length: 12-14mm
Insulating Material: PA
TxHxW (mm): 10 x 49.3 x 42.9 (Individual
Blocks) DIN Rail (mm): 35
Jumper/Bridge: Press-fit/Insertion This assembly includes 2 DK10N-WE Dinkle terminal blocks, 2 DK10N-RD Dinkle terminal blocks, 2 DK10N-GN Dinkle terminal blocks, 2 DK10N-BK Dinkle terminal blocks, 2 SS2 end brackets, 1 DK10NC-BK end cover, and 4 DSS10N-02P press-fit jumpers, all mounted on a 6" piece of aluminum RoHS rail. There are 4 wire connections per color.
