DC Multifunction Battery Monitor Meter with Shunt,0-200V,0-500A, LCD Display Digital Current Multimeter Voltmeter Ammeter for Cars RV Solar,Widely Applied to 12V/24V/48V RV/Car Battery

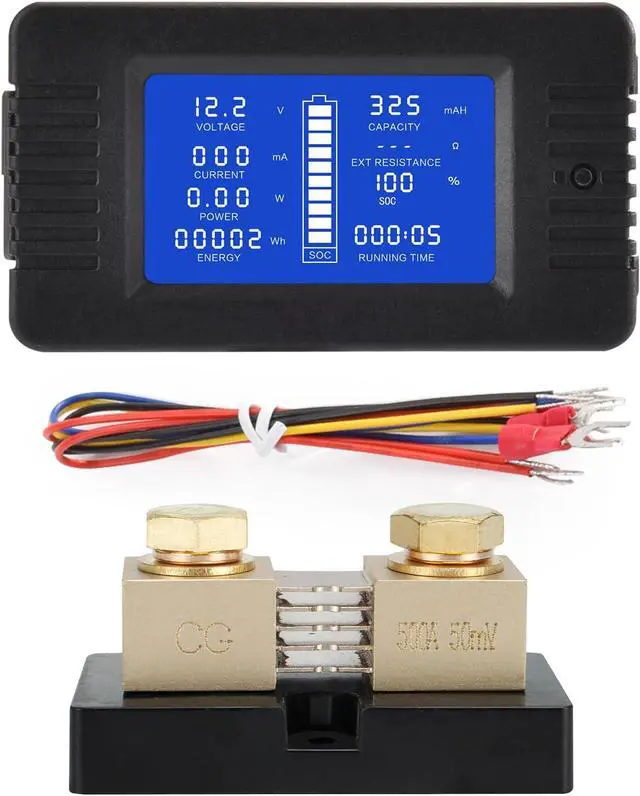

- 9 Measurement Functions.One interface displays nine parameters including Voltage(0-200V), Current(0-500A), Power(0-60000W), Impedance(0-1000), Internal Resistance(0-999m), Capacity(0-1000AH), SOC, Energy (0-9999kWh) and Running time(0-999h).(500A 50mV shunt included in package))
- Better Visual Experience. Full view LCD screen, 360°viewing without dead angle, with backlight function, it is clearly visible whatever day or night.
- No Screw & Easy Installation - With the installation design of the pressing terminal, it is easy and convenient to install and remove the wires without the screws.
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Accurate Measurement. High precision chip control, accurate data, efficient and stable operation, safe and reliable welding process, measurement accuracy reaches 1%.
Wide Application - Wildly used in the automobile, solar energy system, industrial assembly line, etc.
DC Multifunction Battery Monitor Meter
The PZEM-015 DC multifunction battery monitor meter is mainly used to test all kinds of batterys voltage, discharge current, discharge power, discharge impedance, internal resistance, capacity, SOC, energy, running time, and display the measurement data through LCD screen.
Specification
Power consumption
Normal working state: 0.03 - 1.2 W
Sleeping state: 0.5 mW- 0.5W
The power consumption is related to the test voltage valve, the higher the voltage, the greater the power consumption.
Working temperature-20C ~ +60C.

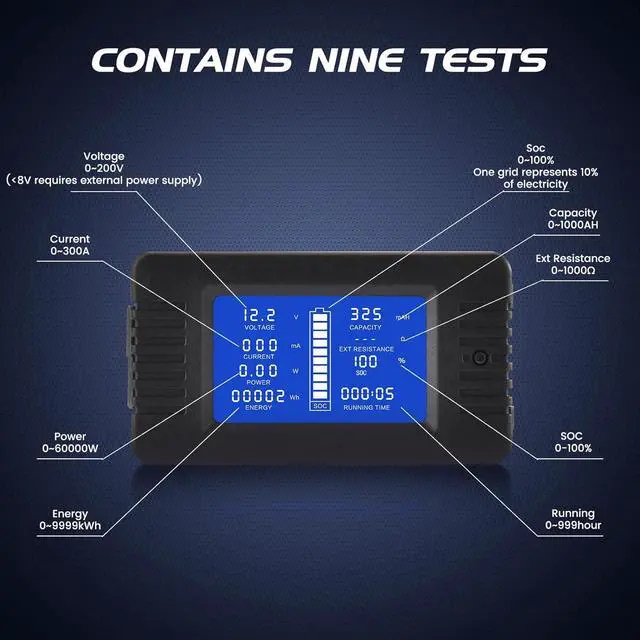

Display interface is large-screen LCD, it can display nine parameters at the same time
Voltage: Measuring
range: 0-200VMinimum

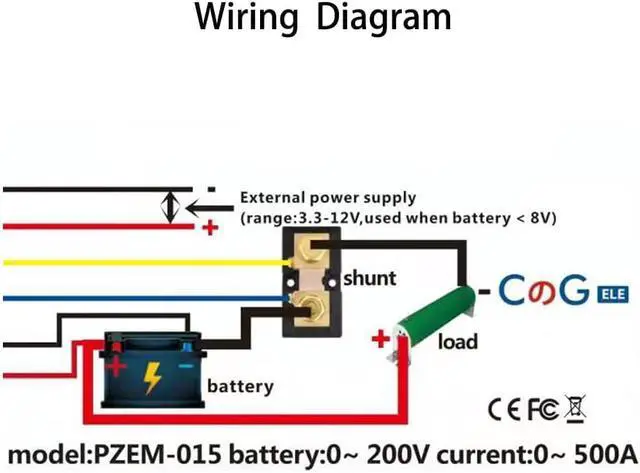

Resolution: 0.01V (when the test voltage is 8V, please use the independent power supply mode)
Current: Measuring
range: 0-500A.
The starting test current: 20mA
Power: Measuring
range: 0-20000W, Starting measure power: 0.2W
Impedance: Measuring range: 0-1000
SOC Percentage Display: Displays the percentage of power remaining
Capacity: Measuring
range: 0-1000AH.
SOC: Dump energy is display via the battery symbol, totally 10 grids, every grid present 10% energy.
EnergyMeasuring range: 09999kWh. Over the test range will become zero.
Note: 1Wh= 0.001 kWh= 0.001 Kilowatt
Running time: Measuring
range: 0 ~ 999 hour (without load the time will not accumulate)

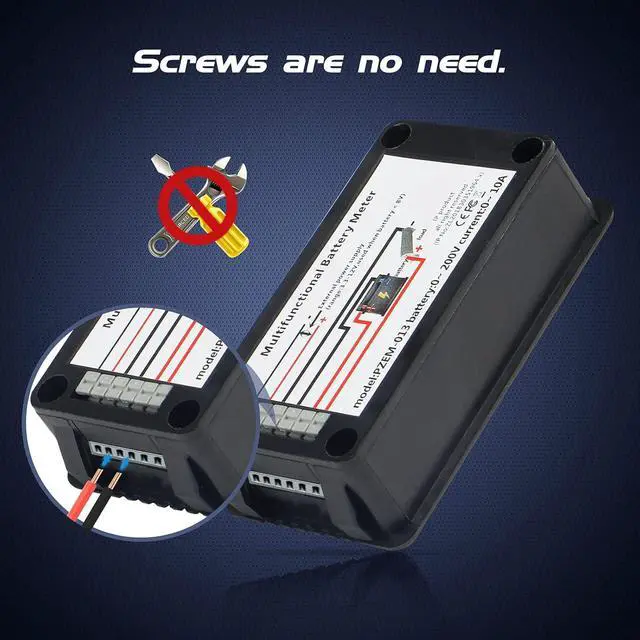

No Screws Design
Push-on terminal, no need screws to connect

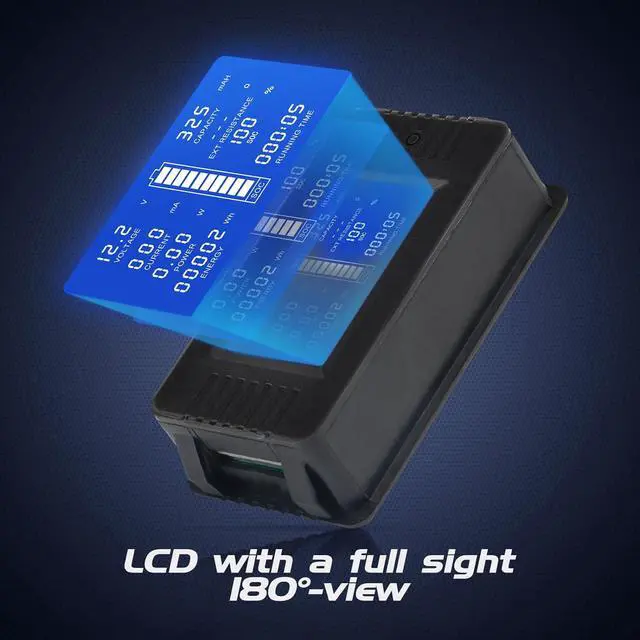

LCD Dispaly
Large-screen
LCD with a full sight 180°-view
The blue backlight can be turened on/off manually
Widly Application
DC Multifunction Battery Monitor Meter widly used for solar penel, wind generator, industrial assebly line, automobile/RV, etc.
Wide Application - Wildly used in the automobile, solar energy system, industrial assembly line, etc.
DC Multifunction Battery Monitor Meter
The PZEM-015 DC multifunction battery monitor meter is mainly used to test all kinds of batterys voltage, discharge current, discharge power, discharge impedance, internal resistance, capacity, SOC, energy, running time, and display the measurement data through LCD screen.
Specification
Power consumption
Normal working state: 0.03 - 1.2 W
Sleeping state: 0.5 mW- 0.5W
The power consumption is related to the test voltage valve, the higher the voltage, the greater the power consumption.
Working temperature-20C ~ +60C.
Display interface is large-screen LCD, it can display nine parameters at the same time
Voltage: Measuring
range: 0-200VMinimum
Resolution: 0.01V (when the test voltage is 8V, please use the independent power supply mode)
Current: Measuring
range: 0-500A.
The starting test current: 20mA
Power: Measuring
range: 0-20000W, Starting measure power: 0.2W
Impedance: Measuring range: 0-1000
SOC Percentage Display: Displays the percentage of power remaining
Capacity: Measuring
range: 0-1000AH.
SOC: Dump energy is display via the battery symbol, totally 10 grids, every grid present 10% energy.
EnergyMeasuring range: 09999kWh. Over the test range will become zero.
Note: 1Wh= 0.001 kWh= 0.001 Kilowatt
Running time: Measuring
range: 0 ~ 999 hour (without load the time will not accumulate)
No Screws Design
Push-on terminal, no need screws to connect
LCD Dispaly
Large-screen
LCD with a full sight 180°-view
The blue backlight can be turened on/off manually
Widly Application
DC Multifunction Battery Monitor Meter widly used for solar penel, wind generator, industrial assebly line, automobile/RV, etc.
