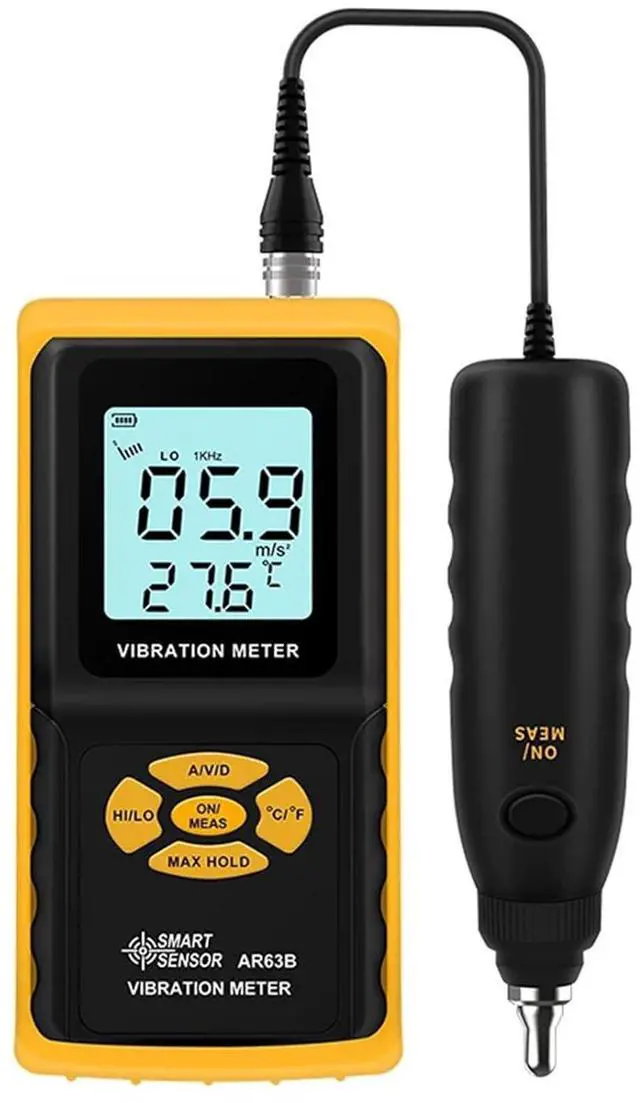

AR63B Digital Vibration Meter Vibrometer 3-in-1 Measuring Modes for Acceleration, Velocity, Displacement, and Environmental Temperature
- Advanced Vibration Measurement Technology: The AR63B Digital Vibration Meter utilizes the piezoelectric effect of polarized ceramics, making it ideal for monitoring all types of vibrating mechanical facilities, including rotating and reciprocating machinery.

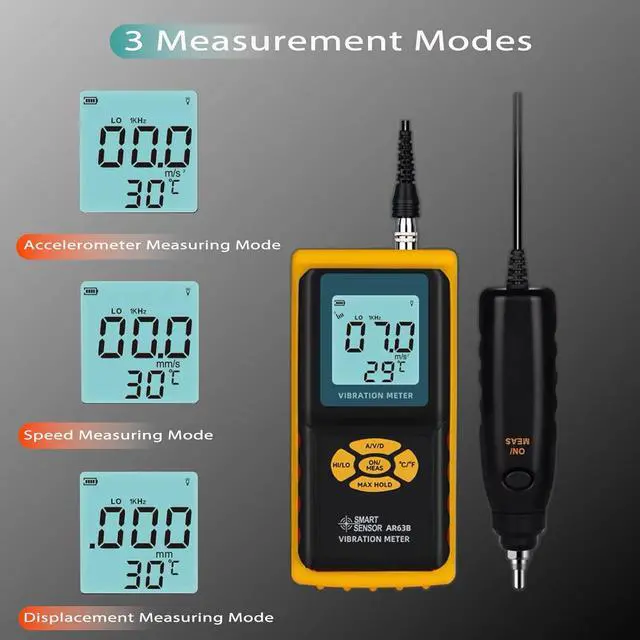

- Comprehensive Measurement Capabilities: Accurately measures acceleration (m/s² peak), velocity (mm/s rms), and displacement (mm p-p), making it suitable for various industrial applications, including mechanical manufacturing, electric power, metallurgy, and aviation.
- User-Friendly LCD Display: Features an easy-to-read LCD that displays measurement results and conditions directly, with options for backlighting for low-light environments.
+
+
Overview
Reviews
Versatile Probes and

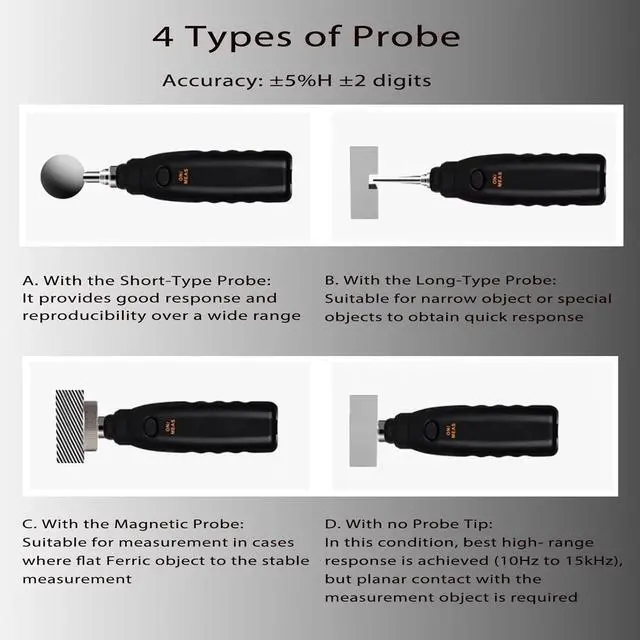

Magnetic Adapter: Comes with two interchangeable probes (S and L) for different measurement needs and a magnetic probe for hands-free operation in challenging conditions.
Convenient Features for Efficiency: Includes low battery indication, auto shut-off, maximum value hold, temperature unit selection (°C/°F), and selective vibration characteristic measurement for enhanced usability.
Technical
Measuring Principle Piezoelectric Ceramic Accelerometer (shear-type)
Acceleration Range 0.1 ~ 199.9 m/s2
Velocity Range 0.1 ~ 199.9 m/s
Displacement Range 0.001 ~ 1.999 mm

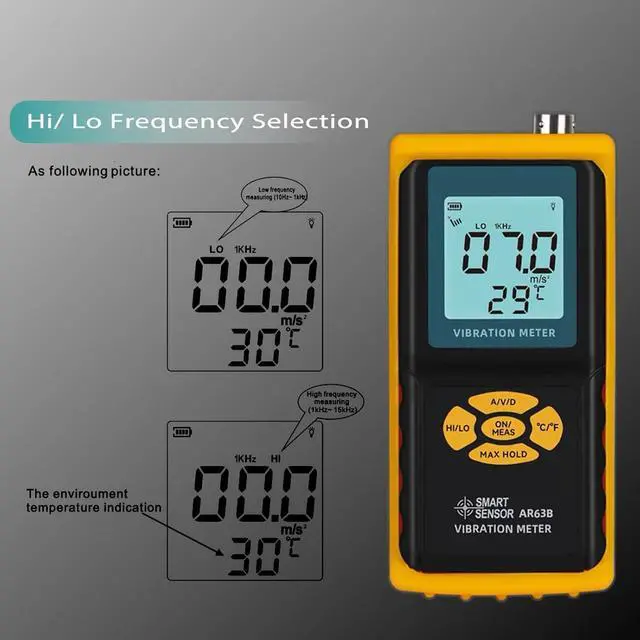

Acceleration Frequency Range 10Hz~1KHz (LO) / 1KHz~15KHz (HI)
Velocity Frequency Range 10Hz~1KHz (LO)
Displacement Frequency Range 10Hz~1KHz (LO)
Accuracy ±5%H ±2 digits
Displays Update Cycle 1 seconds
LCD Display 3 1/2 digits display
Single output AC output 2 V peak (display full scale) / Load impedance 10K or more earphones can be connected
Power Supply 9V Alkaline Battery
Auto Power-off Function Turns off automatically after 60 seconds
LCD Backlight Function 7 seconds
Temperature Range -10°C ~80°C
Temperature Accuracy ±2°C
Magnetic Adapter: Comes with two interchangeable probes (S and L) for different measurement needs and a magnetic probe for hands-free operation in challenging conditions.
Convenient Features for Efficiency: Includes low battery indication, auto shut-off, maximum value hold, temperature unit selection (°C/°F), and selective vibration characteristic measurement for enhanced usability.
Technical
Specifications
Measuring Principle Piezoelectric Ceramic Accelerometer (shear-type)
Acceleration Range 0.1 ~ 199.9 m/s2
Velocity Range 0.1 ~ 199.9 m/s
Displacement Range 0.001 ~ 1.999 mm
Acceleration Frequency Range 10Hz~1KHz (LO) / 1KHz~15KHz (HI)
Velocity Frequency Range 10Hz~1KHz (LO)
Displacement Frequency Range 10Hz~1KHz (LO)
Accuracy ±5%H ±2 digits
Displays Update Cycle 1 seconds
LCD Display 3 1/2 digits display
Single output AC output 2 V peak (display full scale) / Load impedance 10K or more earphones can be connected
Power Supply 9V Alkaline Battery
Auto Power-off Function Turns off automatically after 60 seconds
LCD Backlight Function 7 seconds
Temperature Range -10°C ~80°C
Temperature Accuracy ±2°C
