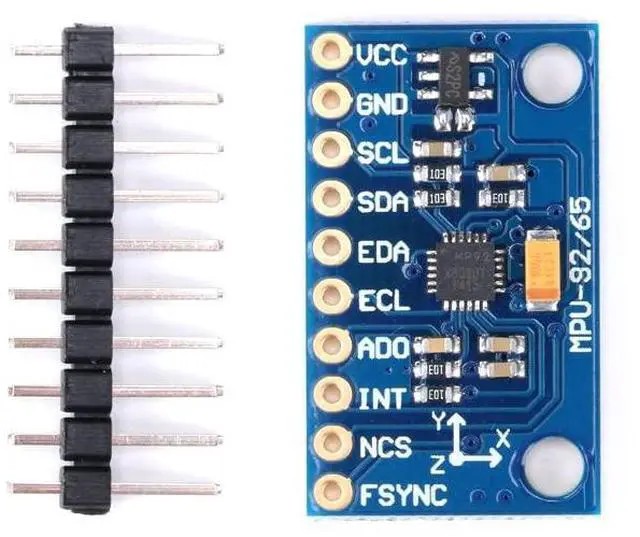

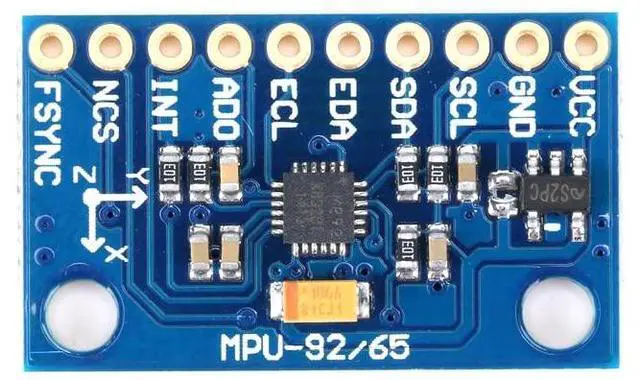

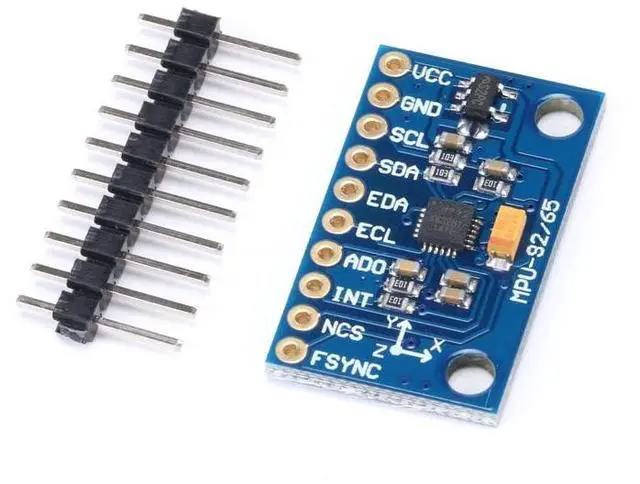

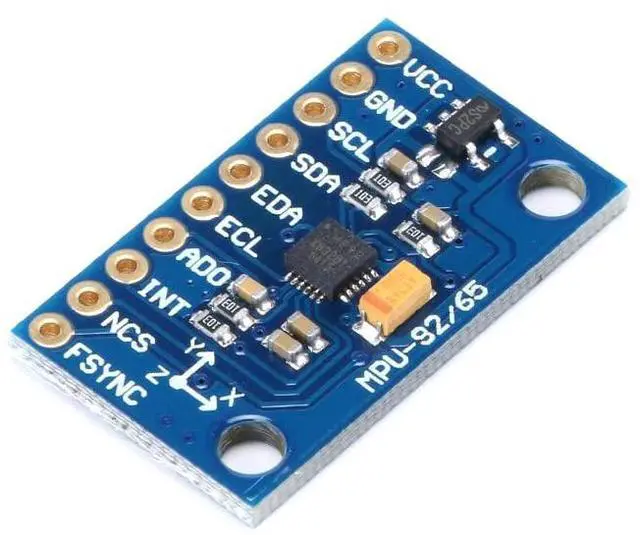

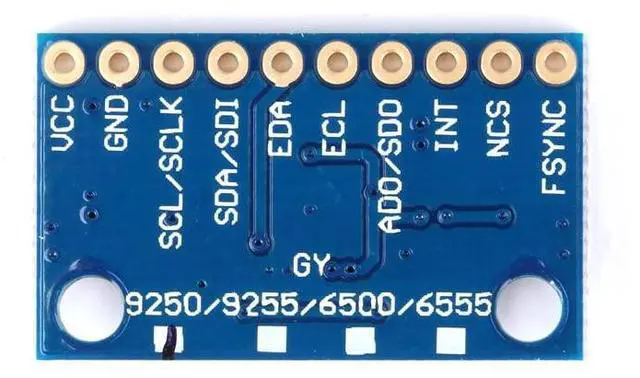

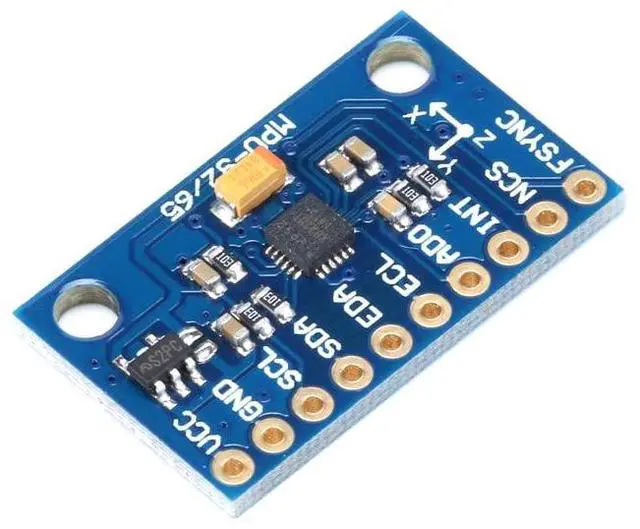

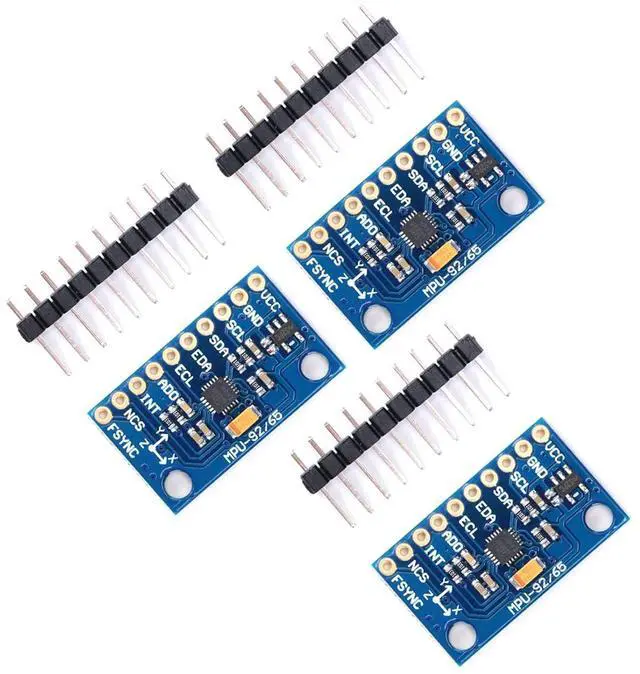

GY-MPU9250 9 Axis Sensor 9 DOF Accelerometer with Gyroscope and Magnetic Field Sensors, 16 Bit AD Converter Data Output IIC I2C SPI
- The gyroscope is designed with a single structure and small size, which makes the accelerometer, gyroscope and 3-axis magnetic energy meter integrated in a 3 mm x 3 mm QFN package
- For precision tracking of both fast and slow motions, the parts feature a user programmable gyroscope full-scale range of ±250, ±500, ±1000, and ±2000°/sec (dps), a user programmable accelerometer full-scale range of ±2g, ±4g, ±8g, and ±16g, and a magnetometer full-scale range of ±4800µT
- Other industry-leading features include programmable digital filters, a precision clock with 1% drift from -40°C to 85°C, an embedded temperature sensor, and programmable interrupts
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Communication with all registers of the device is performed using either I2C at 400kHz or SPI at 1MHz. For applications requiring faster communications, the sensor and interrupt registers may be read using SPI at 20MHz
The device features I2C and SPI serial interfaces, a VDD operating range of 2.4V to 3.6V, and a separate digital IO supply, VDDIO from 1.71V to VDD
The device features I2C and SPI serial interfaces, a VDD operating range of 2.4V to 3.6V, and a separate digital IO supply, VDDIO from 1.71V to VDD
