Coating Thickness Gauge Industrial-814 0-1250µm (0-50 mils) Paint Thickness Meter for Steel & Aluminum, 0.1µm Resolution, Fe/NFe Auto Detection, External Probe (Green)

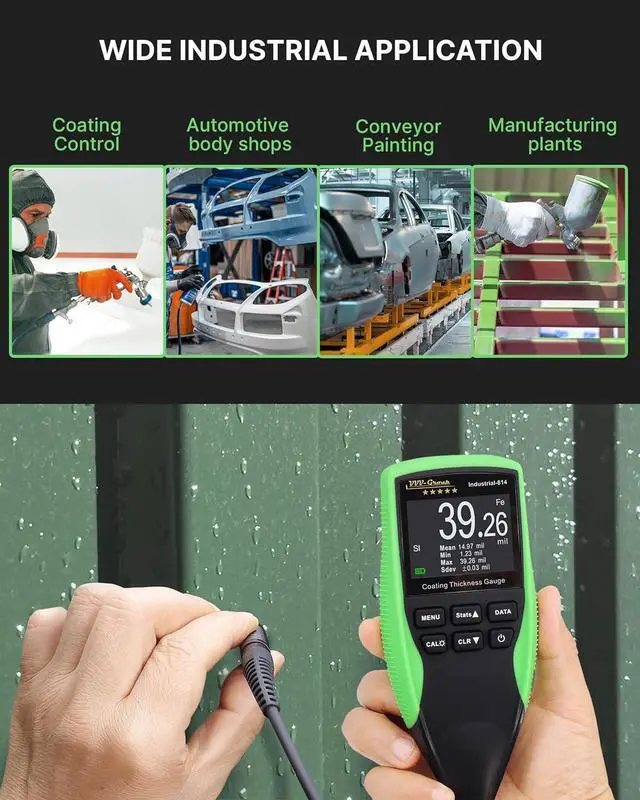

- PROFESSIONAL COATING INSPECTION FOR AUTOMOTIVE AND INDUSTRY - Industrial-814 is a non-destructive coating thickness gauge designed for automotive inspectors, body shops, powder coating facilities and industrial quality control teams. It verifies paint thickness on steel and aluminum parts during vehicle inspection, production control and repaint verification.
- ACCURATE MEASUREMENT RANGE FOR PAINT AND PROTECTIVE COATINGS - Measures coating thickness from 01250µm (050 mils) with 0.1µm / 0.01 mil resolution, providing reliable readings for automotive paint, powder coating layers, corrosion protection systems and industrial painted components.
- AUTOMATIC Fe / NFe METAL IDENTIFICATION - Automatically detects ferrous (steel, iron) and non-ferrous (aluminum, copper) substrates using magnetic induction and eddy current principles. No manual switching required, reducing operator mistakes during inspection.
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
EXTERNAL PRECISION PROBE FOR CURVED SURFACES - Remote probe design allows stable measurements on curved car panels, pipes, tanks, weld seams and complex industrial parts where integrated probes often struggle to maintain contact.
BUILT-IN STATISTICS FOR QUALITY CONTROL - Displays current value, average, minimum, maximum and standard deviation, allowing inspectors to quickly evaluate coating consistency and identify coating defects during production checks.

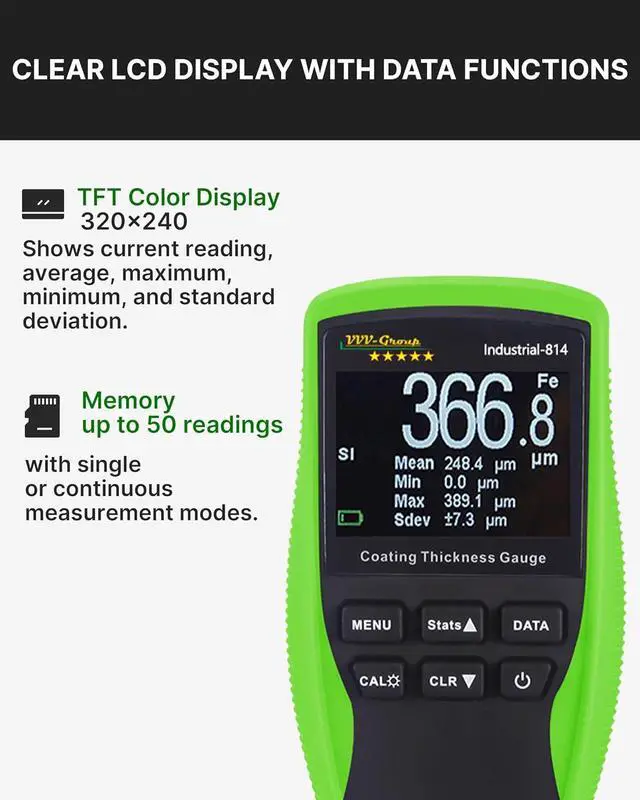

CLEAR COLOR DISPLAY FOR FIELD WORK - High-contrast 320×240 TFT display shows coating thickness, substrate type and statistics clearly, improving readability in workshops, inspection sites and industrial environments.
Coating Thickness Gauge Industrial-814 FUNCTION AND SPECIFICATION:
Measuring Range 01250µm (050 mils) suitable for automotive paint and industrial coatings
Resolution 0.1 µm / 0.01 mil fine precision for inspection decisions
Substrate Detection Automatic Fe / NFe identification
Measuring Principle Magnetic induction (Fe) & eddy current (NFe)
Probe Type External precision probe
Measurement Mode Single & continuous measurement
Statistics Mean, Min, Max, Standard Deviation
Alarm Function High/Low limit pass-fail indication
Display 320×240 TFT color screen
Units µm / mil
Calibration Zero, two-point, multi-point calibration
Operating Temperature 20°C to +50°C (4°F to 122°F)
Data Storage Up to 50 readings
Power Supply AAA batteries
Application Surfaces Steel, iron, aluminum, copper
Limitations Not for plastic or non-metal substrates
BUILT-IN STATISTICS FOR QUALITY CONTROL - Displays current value, average, minimum, maximum and standard deviation, allowing inspectors to quickly evaluate coating consistency and identify coating defects during production checks.
CLEAR COLOR DISPLAY FOR FIELD WORK - High-contrast 320×240 TFT display shows coating thickness, substrate type and statistics clearly, improving readability in workshops, inspection sites and industrial environments.
Coating Thickness Gauge Industrial-814 FUNCTION AND SPECIFICATION:
Measuring Range 01250µm (050 mils) suitable for automotive paint and industrial coatings
Resolution 0.1 µm / 0.01 mil fine precision for inspection decisions
Substrate Detection Automatic Fe / NFe identification
Measuring Principle Magnetic induction (Fe) & eddy current (NFe)
Probe Type External precision probe
Measurement Mode Single & continuous measurement
Statistics Mean, Min, Max, Standard Deviation
Alarm Function High/Low limit pass-fail indication
Display 320×240 TFT color screen
Units µm / mil
Calibration Zero, two-point, multi-point calibration
Operating Temperature 20°C to +50°C (4°F to 122°F)
Data Storage Up to 50 readings
Power Supply AAA batteries
Application Surfaces Steel, iron, aluminum, copper
Limitations Not for plastic or non-metal substrates
