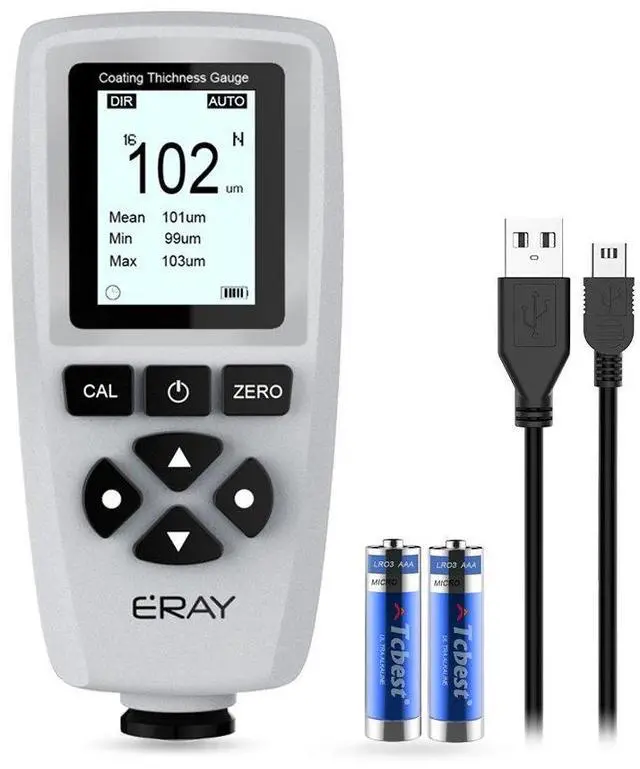

Mil Thickness Gauge, Coating Thickness Gauges, Paint Depth Gauge Meter with Backlight LCD Display for Car Automotive, Limit Alarm/Data Storage/Export Data/PC Software Analysis (Grey)
- Fe/NFe Dual Probe: The measuring range of this paint thickness gauge is 0 to 2000um(78.7mils). 4 general groups can store max. 320 readings when power off, 80 readings per group

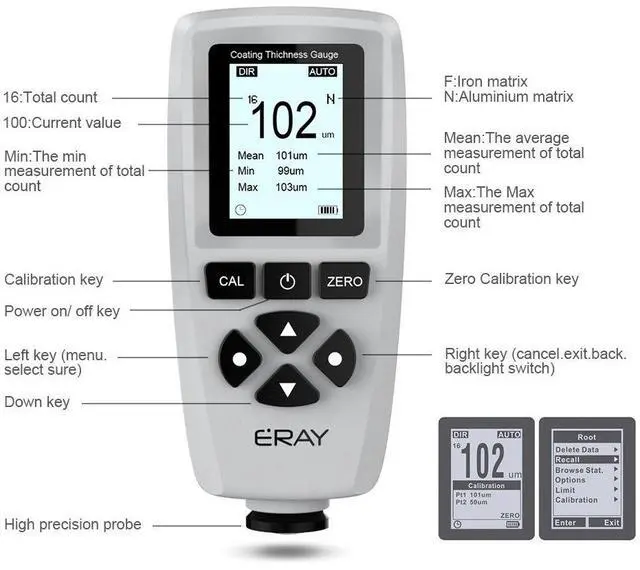

- Coating Thickness Gauge: Human-oriented interface with backlight LCD dispaly, user can set the parameters visually before using it. And easy to store, recall or delete the readings
- CD & USB Cable: User can view and analyze the measurement via USB interface to data transmission after installing the software in CD to PC. Low battery and error indication
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

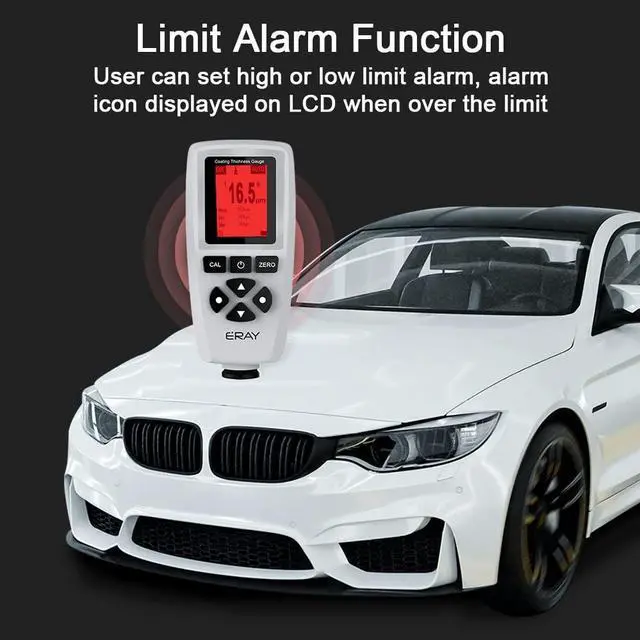

ALARM Function: paint thickness meter is better for special security requirements, user can set high or low limit alarm, alarm icon displayed on LCD when over the limit
Widely Used: This coating thickness meter is suitable for laboratory, workshop, paint shops, automobile, shipbuilding, aircraft industries, etc
Customer Service: We will provide high-quality services for thickness meter and value your suggestions. If you have any questions, please contact us in a timely manner, and we will reply to you within 24 hours and provide you with the great solution
WHY CHOOSE MIL THICKNESS GAUGE FOR PAINT?
Data Store: 4 groups, total 320 measurements, max 80 readings will be stored for each group. If over 80 readings, please delete the group, or it will not store the new measurements.
USB Data Transmission: Connect it to PC, then you can download, analyze and store the measured readings. Software compatible with Windows SVR 2000/2003/2008 and Windows XP/Vista/7/8/10(32&64 Bits)
Easy to Carry: Included a plastic toolbox, users would no longer have to worry about carrying and storage problems. USB cable, software CD and batteries also in the toolbox
Note: Please make sure that the gauge and the measuring surface keep 90 degrees vertical.
Product Mode: P1
Measuring Range: 0 to 2000um(0 to 78.7 mils), Measuring
Accuracy: ±( 2.5 %+1um)
Units: um, mm, mils; Operating Environment temperature-10~50°C ( 14~122° F )
Min Curvature Radius Convex: 5mm
Min Curvature Radius Concave: 25mm
Min Measuring Area: Diameter 20mm
Min Thickness of Substrate: 0.2 mm (Probe F); 0.05 mm (Probe N)
Max Measuring Rate: 2 reading per second
Computer Interface: Download data via USB
Power Supply: 2* 1.5V AAA battery

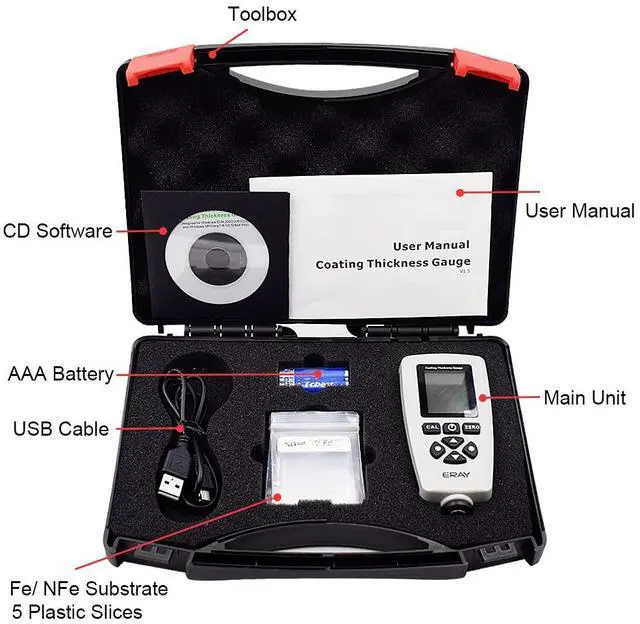

Package List
Widely Used: This coating thickness meter is suitable for laboratory, workshop, paint shops, automobile, shipbuilding, aircraft industries, etc
Customer Service: We will provide high-quality services for thickness meter and value your suggestions. If you have any questions, please contact us in a timely manner, and we will reply to you within 24 hours and provide you with the great solution
WHY CHOOSE MIL THICKNESS GAUGE FOR PAINT?
Data Store: 4 groups, total 320 measurements, max 80 readings will be stored for each group. If over 80 readings, please delete the group, or it will not store the new measurements.
USB Data Transmission: Connect it to PC, then you can download, analyze and store the measured readings. Software compatible with Windows SVR 2000/2003/2008 and Windows XP/Vista/7/8/10(32&64 Bits)
Easy to Carry: Included a plastic toolbox, users would no longer have to worry about carrying and storage problems. USB cable, software CD and batteries also in the toolbox
Note: Please make sure that the gauge and the measuring surface keep 90 degrees vertical.
Specifications
:Product Mode: P1
Measuring Range: 0 to 2000um(0 to 78.7 mils), Measuring
Accuracy: ±( 2.5 %+1um)
Units: um, mm, mils; Operating Environment temperature-10~50°C ( 14~122° F )
Min Curvature Radius Convex: 5mm
Min Curvature Radius Concave: 25mm
Min Measuring Area: Diameter 20mm
Min Thickness of Substrate: 0.2 mm (Probe F); 0.05 mm (Probe N)
Max Measuring Rate: 2 reading per second
Computer Interface: Download data via USB
Power Supply: 2* 1.5V AAA battery
Package List
