Coating Thickness Gauge CM-208Z 0-3000µm (0-120 mils) Industrial Paint Thickness Meter, 0.001mil Resolution, External Probe, Fe/NFe Auto Detection, USB Data Export

REMOTE PROBE FOR CURVED AND HARD-TO-REACH SURFACES - External precision probe with durable ruby tip allows stable measurements on pipes, tanks, welded joints, curved surfaces and complex industrial geometries.
COMPLETE STATISTICAL ANALYSIS FOR QUALITY CONTROL - Displays Mean, Minimum, Maximum, Standard Deviation and reading count, helping inspectors evaluate coating consistency across multiple measurement points.
LARGE DATA STORAGE FOR INSPECTION WORKFLOW - Stores up to 2000 measurements, allowing inspectors to record coating thickness across production batches and inspection projects.
Coating Thickness Gauge CM-208Z FUNCTION AND SPECIFICATION:
Measurement Purpose Coating thickness on metal (paint, powder coat, protective layers)
Supported Substrates Ferrous (steel/iron) & Non-ferrous (aluminum/copper)
Not Compatible With Plastic, composite, wood, non-metal bases
Measuring Range 03000µm (0120 mils)
Resolution 0.1 µm / 0.001 mils
Accuracy ±(3% + 1µm) typical
Measuring Principle Magnetic induction (Fe) / Eddy current (NFe)
Probe Type External remote probe
Probe Tip Material Technical ruby
Auto Substrate Detection Automatic Fe/NFe recognition
Statistics Displayed Mean, Min, Max, Standard Deviation, Count
Data Storage Capacity Up to 2000 readings
PC Connectivity USB data export with software included
Measuring Units µm / mm / mil
Operating Temperature 10°C to +50°C (14°F122°F)
Package Includes Gauge, Fe & NFe plates, calibration foils, USB cable, software, case, batteries, manual
What does CM-208Z measure?
It measures thickness of non-magnetic coatings such as paint, powder coating and protective layers applied on metal substrates.
Can it measure on plastic or composite materials?
No. The gauge works only on metal substrates (Fe and NFe). It does not measure coatings on plastic, wood or non-metal bases.
What is the maximum thickness it can measure?
The measuring range is 03000µm (0120 mils), suitable for heavy industrial and marine coating systems.

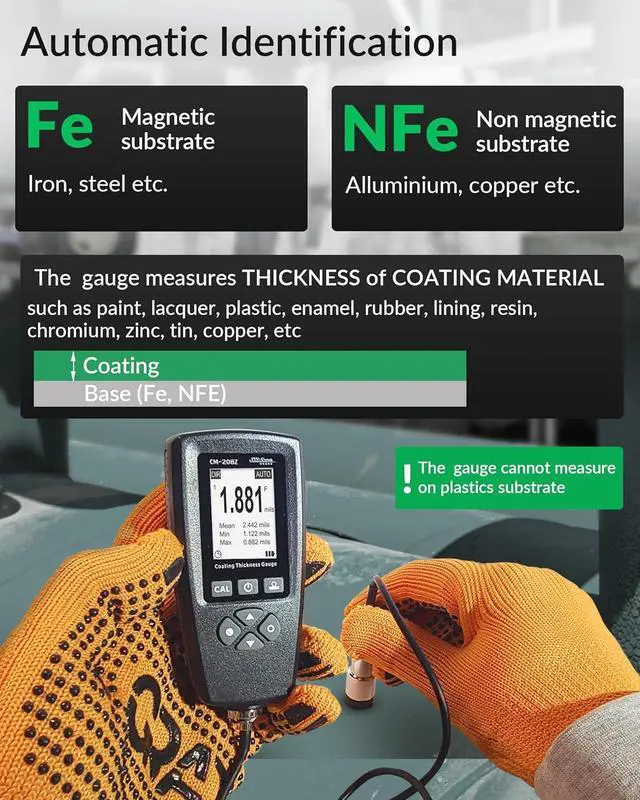

Does it automatically detect metal type?
Yes. The device automatically identifies ferrous and non-ferrous metals without manual switching.
Can measurement data be exported?
Yes. The CM-208Z supports USB data transfer and includes PC software for documentation and reporting.
