BSIDE Handheld Oscilloscope 3.2'' TFT Display Portable Digital Oscilloscope 10MHz Bandwidth Automotive Oscilloscope 48MSa/s Sampling Rate Trigger Function Auto/Nomal/Single

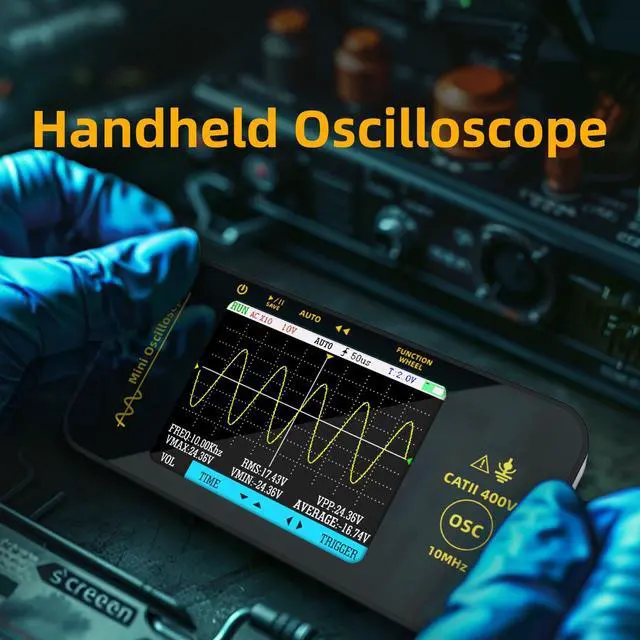

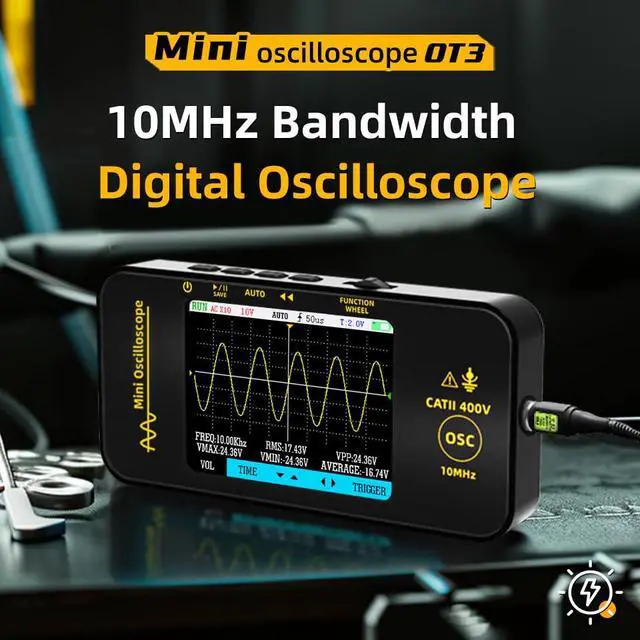

- Handheld Oscilloscope: This OT3 digital oscilloscope has a 10MHz bandwidth, a high sampling rate of 48MSa/s, and can measure voltages up to 400V.
- Professional design: Portable oscilloscopes with complete triggering capabilities (single/normal/automatic) for both periodic analog and non-periodic digital signals.

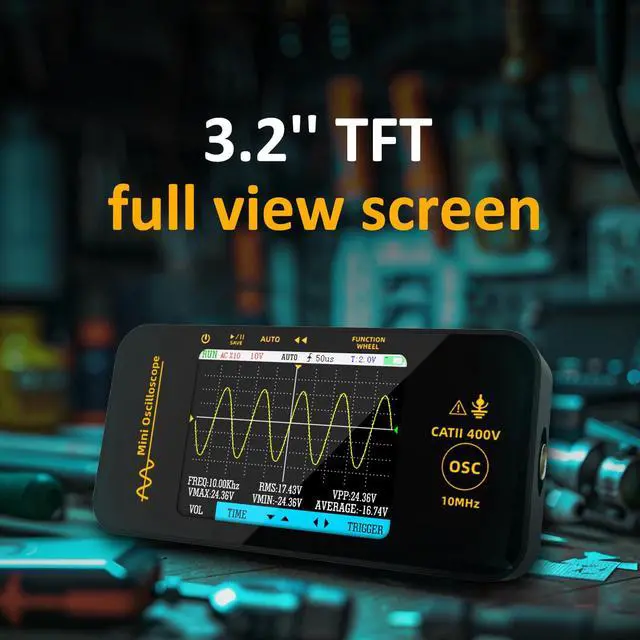

- 3.2 TFT color screen: This flat-panel oscilloscope's full-view display ensures that you can monitor signals more clearly, while intuitive buttons and menu navigation simplify operation.
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

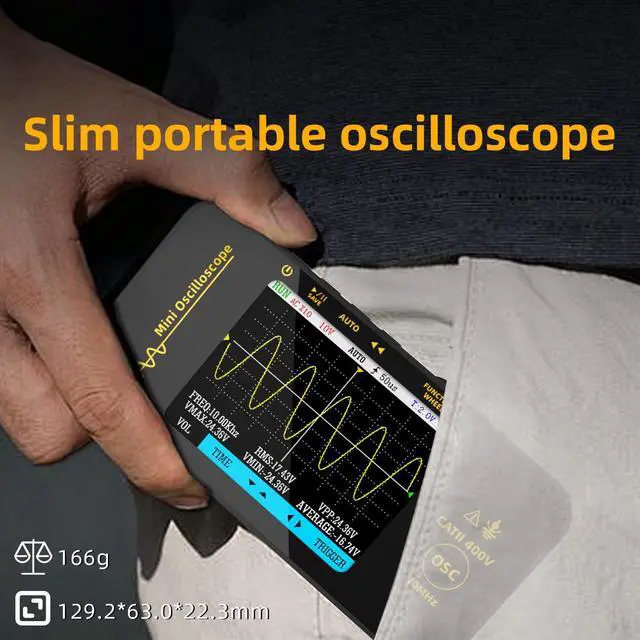

Thin and light body: This flat-panel oscilloscope is paired with a thin and light body, which is more compact and exquisite, and more convenient to use. Complimentary eva organizer bag, go out more portable.

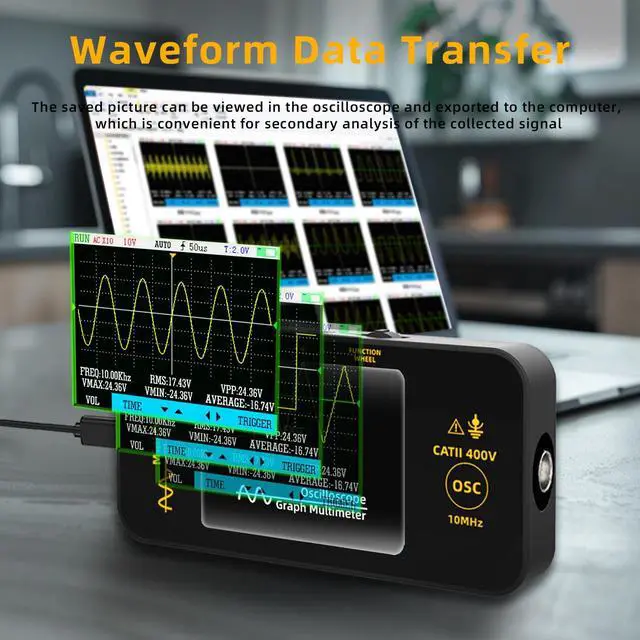

Longer Battery Life: Automotive oscilloscope has a built-in 1000 mAh high-quality lithium battery, no need to replace the battery frequently. Type-C interface supports data transmission and charging, firmware upgrade
Features:
Support Chinese and English switching, auto range, true RMS value display, screen backlight, support data hold, low battery alert, formatting, can be set to automatic shutdown.
1200mA lithium battery lasting battery life
Ultra-thin body, the whole body is equipped with soft silicone cover, shockproof and drop-proof.
With high-end EVA storage bag, more portable.
Specification:
Display: 3.2 -inch TFT color screen
Bandwidth: 10MHz real-time sampling
Real-time sampling rate: 48MSa/s
Number of channels: 1 channel DC AC
Input impedance: 1M, @16pF
Probe attenuation: ×1, ×10
Maximum input voltage: ×1 range ±40V, ×10 range ±400V (DC + AC peak)
Horizontal sampling rate range: 1.5S a/s-48MSa/s
Vertical sensitivity: 20mV/div-10V/div
Size: 129.2 * 63.0 * 22.3 mm
Weight: 268g

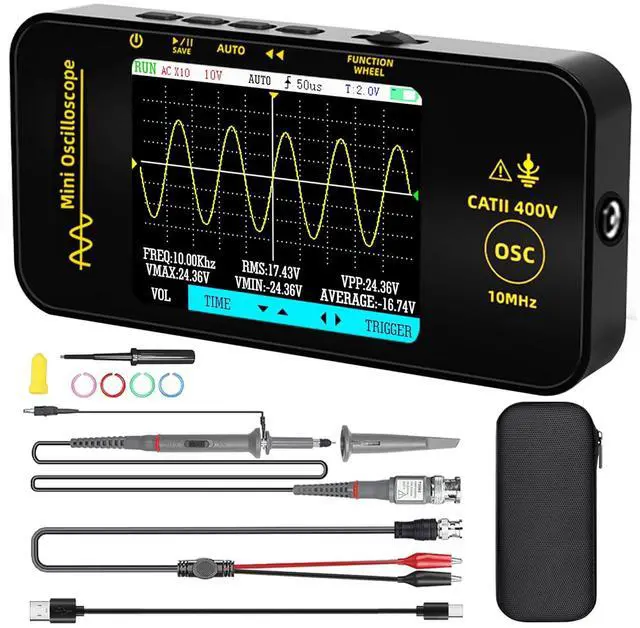

Package content:
1×OT3 portable oscilloscope
1×Oscilloscope probe
1×Red and black alligator clip
1×USB type-C data cable
1×EVA storage bag
1×User's manual
1×Regulating Rod
4×Color ring
Longer Battery Life: Automotive oscilloscope has a built-in 1000 mAh high-quality lithium battery, no need to replace the battery frequently. Type-C interface supports data transmission and charging, firmware upgrade
Features:
Support Chinese and English switching, auto range, true RMS value display, screen backlight, support data hold, low battery alert, formatting, can be set to automatic shutdown.
1200mA lithium battery lasting battery life
Ultra-thin body, the whole body is equipped with soft silicone cover, shockproof and drop-proof.
With high-end EVA storage bag, more portable.
Specification:
Display: 3.2 -inch TFT color screen
Bandwidth: 10MHz real-time sampling
Real-time sampling rate: 48MSa/s
Number of channels: 1 channel DC AC
Input impedance: 1M, @16pF
Probe attenuation: ×1, ×10
Maximum input voltage: ×1 range ±40V, ×10 range ±400V (DC + AC peak)
Horizontal sampling rate range: 1.5S a/s-48MSa/s
Vertical sensitivity: 20mV/div-10V/div
Size: 129.2 * 63.0 * 22.3 mm
Weight: 268g
Package content:
1×OT3 portable oscilloscope
1×Oscilloscope probe
1×Red and black alligator clip
1×USB type-C data cable
1×EVA storage bag
1×User's manual
1×Regulating Rod
4×Color ring
