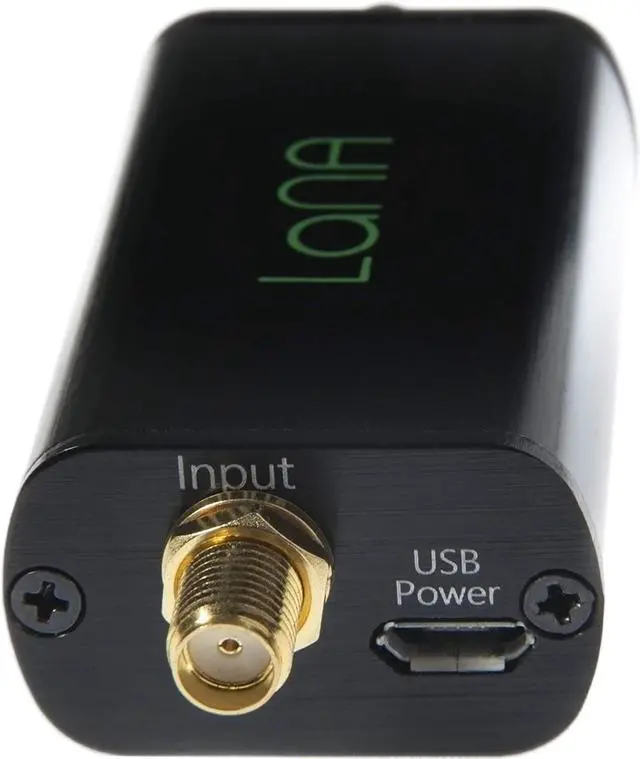

Lana - Ultra Low-Noise Amplifier (LNA) Module for RF & Software Defined Radio (SDR) with Enclosure & Accessories. Wideband 20MHz-4000MHz Frequency Capability with Bias Tee & USB Power Options
- Improve the SNR and performance of your RTL-SDR, SDR or other radio! LaNA is a wideband (20MHz - 4GHz), high-performance, general purpose LNA module with an extremely low noise figure, installed in a quality aluminum enclosure
- Higher gain, lower noise figure, lower power consumption and better linearity than modules based on SPF5189Z and similar LNA MMICs

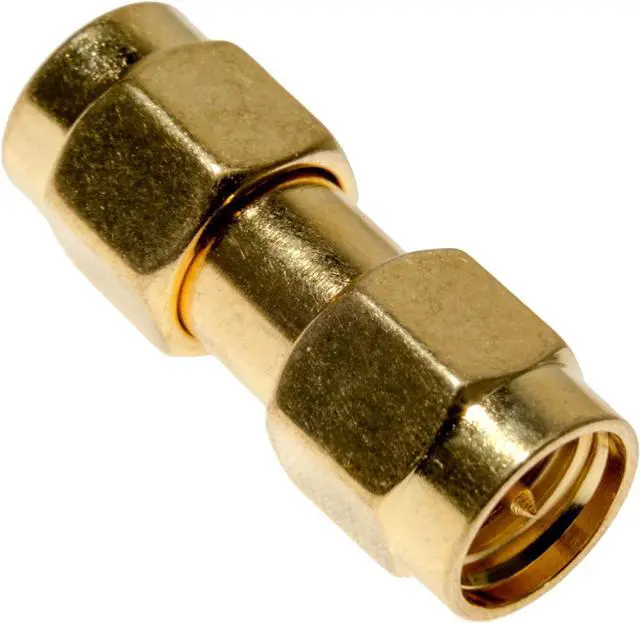

- Can be powered through bias tee (3.3V-5V), USB, or DC power with the included adapter. A free male SMA to male SMA connector is also included
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
NOTE: Some SDRs will require a DC block between the LNA and SDR if utilizing the external power options.
FOR FULL SPECIFICATIONS AND DETAILS, PLEASE REVIEW THE PRODUCT PAGE AT. COM
LaNA is a very high performance, wideband LNA module designed for general purpose SDR applications.
Each module allows for 3 different power options, but you should only power with one option at any given time! The recommended power input through the SMA output port (for bias-tee capable SDRs like the NESDR SMArTee XTR) is 3V-5V DC. Alternatively, if you don't have a bias-tee capable SDR, you can use the external power options--the microUSB port, or DC barrel connector via the included DC to microUSB adapter. The recommended external power input is 3.3V - 5.5V DC.
Though there is protection circuitry on LaNA for overvoltage conditions--and voltages of up to 12V DC should still work and will not damage the device--it is not recommended for long-term usage.
Each LaNA module has an internal EMI shield to protect the sensitive circuitry from external interference and is fully ESD-protected.
FOR FULL SPECIFICATIONS AND DETAILS, PLEASE REVIEW THE PRODUCT PAGE AT. COM
LaNA is a very high performance, wideband LNA module designed for general purpose SDR applications.
Each module allows for 3 different power options, but you should only power with one option at any given time! The recommended power input through the SMA output port (for bias-tee capable SDRs like the NESDR SMArTee XTR) is 3V-5V DC. Alternatively, if you don't have a bias-tee capable SDR, you can use the external power options--the microUSB port, or DC barrel connector via the included DC to microUSB adapter. The recommended external power input is 3.3V - 5.5V DC.
Though there is protection circuitry on LaNA for overvoltage conditions--and voltages of up to 12V DC should still work and will not damage the device--it is not recommended for long-term usage.
Each LaNA module has an internal EMI shield to protect the sensitive circuitry from external interference and is fully ESD-protected.
