photoelectric Sensor 2m Sensing Feedback Reflex photoelectric Switch Sensor E3F-R2NK 6-36VDC NPN NONormally OpenProximity Switch Diameter 18mm E3F-R2N1 (Pack of 2)

Detected object
Type: Non-Transparent;
Head diameter: 1. 6cm/0. 6"; body
Size: 2. 4 x 7. 5cm/0. 9" x 3" (max. D*l); reflector panel
Size: 6. 5 x 4 x 0. 8cm/2. 6' ' x 1. 6' ' x 0. 3' ' (l*w*t)
Cable Length(Approx. ): 1. 25m / 49";
Reflector Size: 6. 5 x 4 x 0. 8cm / 2. 6" x 1. 6" x 0. 3" (L*W*T);
External Material: Plastic ABS
Main Color: yellow, Black;
Weight: 110g

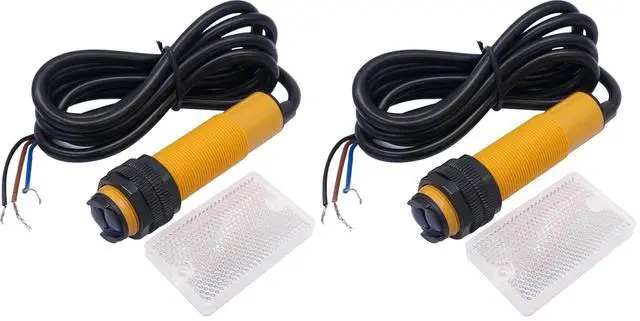

; package content: 1 x Photoelectric switch; 1 x reflector panel: 1 x reflector panel
Inductive type: Feedback reflex;
Induction distance: 2M

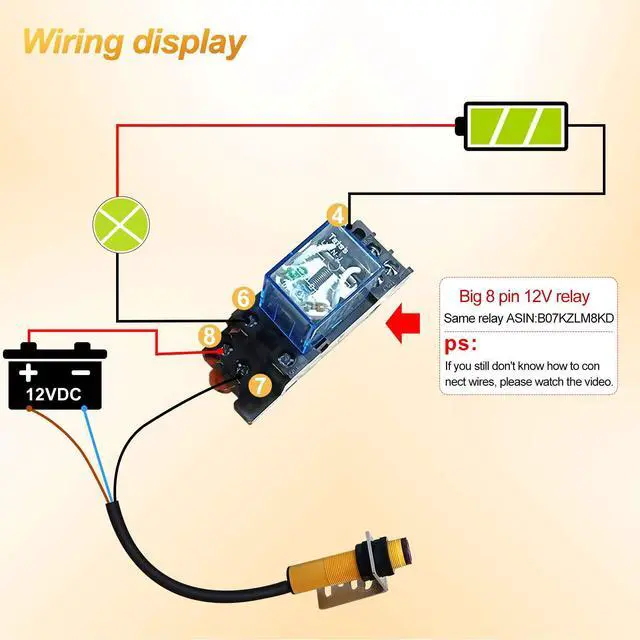

Working voltage: 6-36V both can The positive, blue, black, black, black.
Working environment: temperature -40 to +70 degrees celsius;
Protection level: IP61-IP67;
Corresponding time: the function reset time is below 2.5MS;
Object: transparent, opaque body;
Differential distance: the detection distance is below 20%;
Insulation resistance: greater than or equal to 20M ohm;
Note: 1, switch on the power should be connected to check the wiring is correct, check whether the voltage parameters for the rated value; 2, switch load can not be short circuit, the load should not exceed the maximum output current;
