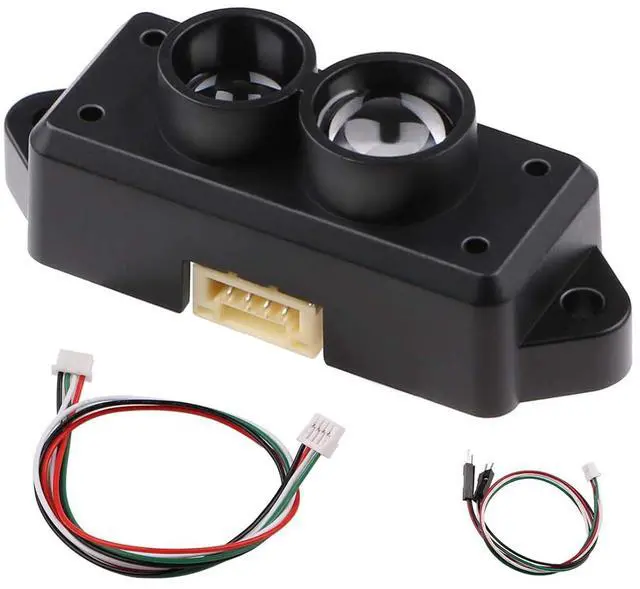

TFmini-s Micro LiDAR Module 0.1-12M LiDAR Range Finder Sensor Obstacle Avoidance Sensor Tiny Module Single Point UART I2C IO Compatible with Pixhawk and Raspberry Pi

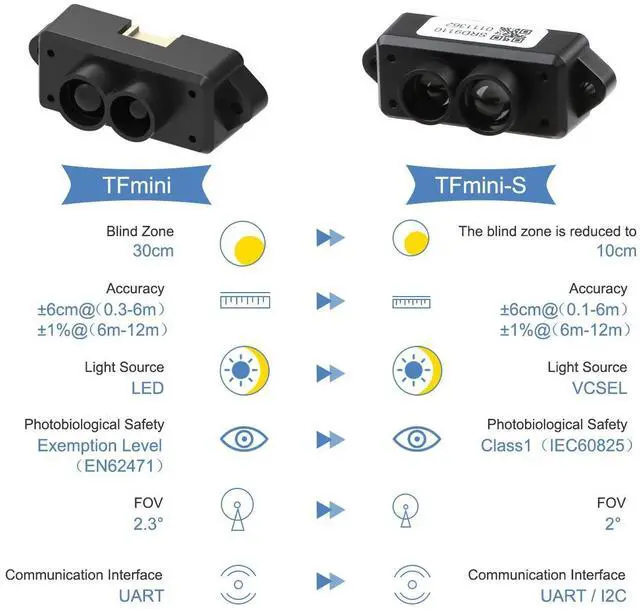

- Upgraded LiDAR Module: TFmini-s is an upgraded single-point micro ranging module based on TFmini. The dead zone is shortened to 10 cm, and the outdoor performance and accuracy of different reflectances are improved
- Tiny Body Yet Big Wisdom: low-cost, small-size and low power consumption. Distance Resolution is 1cm, frame rate is 100Hz, ambient light immunity is 70Klux and central wavelength is 850nm

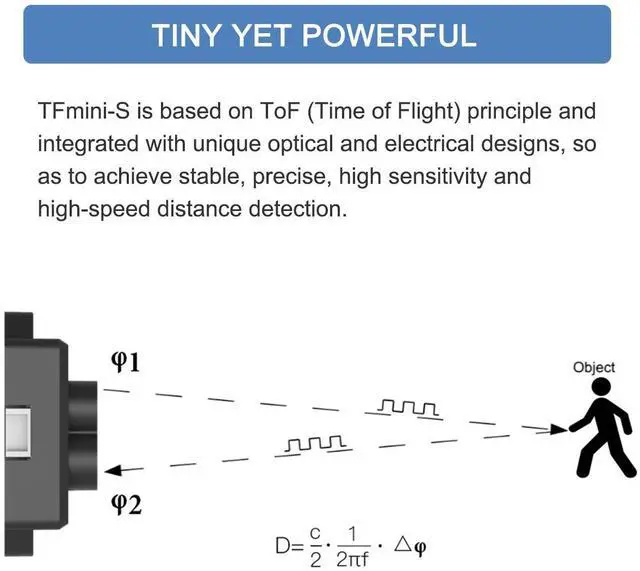

- Tiny Yet Powerful: It is based on ToF (Time of Flight) principle and integrated with unique optical and electrical designs, so as to achieve stable, precise, high sensitivity and high-speed distance detection
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Main Application Scenario: Pedestrian detection, vehicle detection, intelligent barrier gate and altimeter
Note: TFmini-s version is UART by default. If you need I2C, please switch by yourself. It is compatible with Raspberry Pi and
User Manual and Document: Please get the link from Product guides and documents below
TFmini-s is a upgraded single-point micro ranging module based on TFmini.
The blind zone is shortened to 10cm, the outdoor performance and accuracy of different reflectivity are improved, it can achieve stable, accuracy, sensitive and high frequency range detection.
TFmini-s is compatible with both the UART and I2C interface.
Different interfaces can be switched by commands.
Performance:
Operating Range: 0.1 m~12m@90%Reflectivity
Accuracy: ±6cm@( 0.1 -6m), ±1% @ (6m-12m)
Distance Resolution: 1cm
Frame Rate: 100Hz
Ambient Light Immunity: 70Klux
Operating Temperature: 0~60
Electrical Parameters:
Supply Voltage: 5V± 0.1V
Average Current: 140mA
Power Consumption: 0.7W
Peak Current: 200mA
Communication Level: LVTTL( 3.3V )
Communication Interface: UART / I2C
Main application scenario:
Pedestrian detection
Vehicle detection
Intelligent barrier gate and altimeter
Note: TFmini-s version is UART by default. If you need I2C, please switch by yourself. It is compatible with Raspberry Pi and
User Manual and Document: Please get the link from Product guides and documents below
TFmini-s is a upgraded single-point micro ranging module based on TFmini.
The blind zone is shortened to 10cm, the outdoor performance and accuracy of different reflectivity are improved, it can achieve stable, accuracy, sensitive and high frequency range detection.
TFmini-s is compatible with both the UART and I2C interface.
Different interfaces can be switched by commands.
Performance:
Operating Range: 0.1 m~12m@90%Reflectivity
Accuracy: ±6cm@( 0.1 -6m), ±1% @ (6m-12m)
Distance Resolution: 1cm
Frame Rate: 100Hz
Ambient Light Immunity: 70Klux
Operating Temperature: 0~60
Electrical Parameters:
Supply Voltage: 5V± 0.1V
Average Current: 140mA
Power Consumption: 0.7W
Peak Current: 200mA
Communication Level: LVTTL( 3.3V )
Communication Interface: UART / I2C
Main application scenario:
Pedestrian detection
Vehicle detection
Intelligent barrier gate and altimeter
