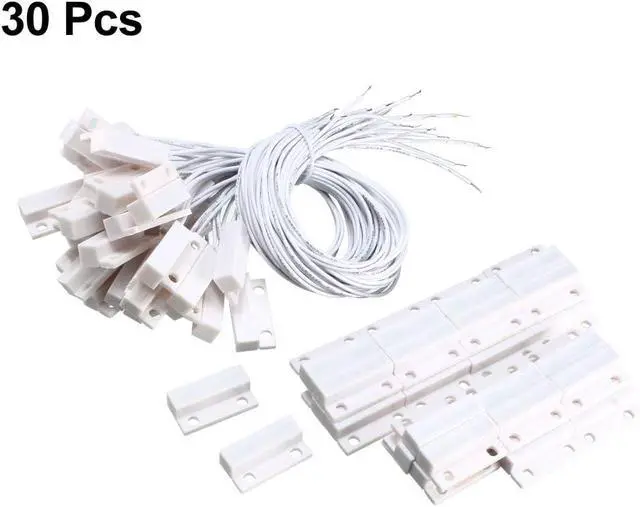

30pcs MC-38 Surface Mount Wired NC Door Sensor Alarm Magnetic Reed Switch White
- ABS Normally Closed Door Contact Switch
- 0.5A Maximum Switch Current
- Will make Sense Door Closer at Roughly 10-15mm
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Self-Adhesive Mount, Screw Surface Mount
Long wire lead that is side mounted
Description:
1. Self-Adhesive Mount, Screw Surface Mount contact, ABS Housing. Long wire lead that can side mounted.
2.

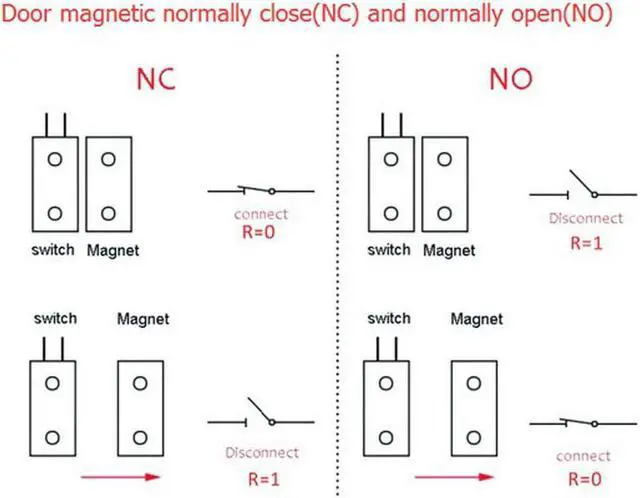

Switch Type: NC means
Normally Closed: When the magnet together, the circuit is conductive ( light on ); when the magnet separate, the circuit is not conductive ( light off ).
3. Work as an anti-theft alarm, perfect for wood door and window.
Specification:

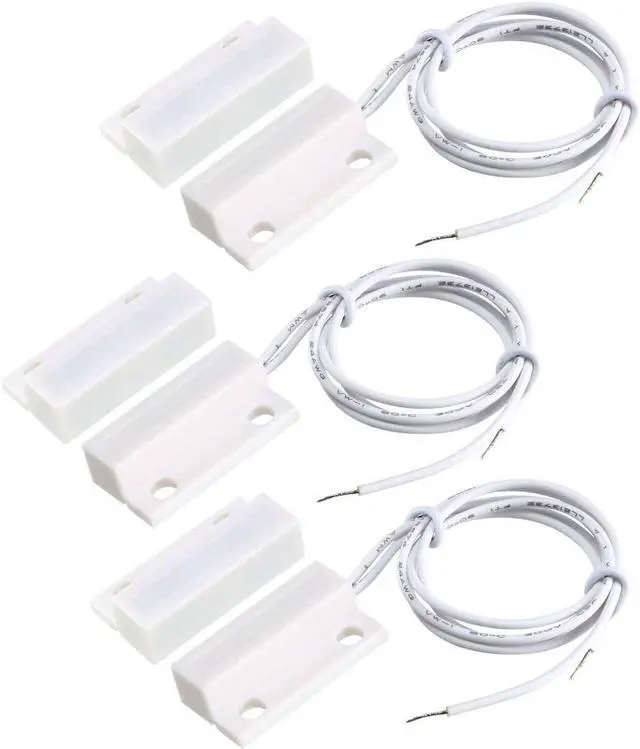

Product Name: Magnetic Door Switch
Model: MC-38
Contact Type: NC (Normally Closed)
Actuation Distance: 10-15mm
Max.
Current: 0.5A
Max.
Power: 10W
Working Voltage: DC100V
Each Size (Approx): 27 x 14 x 7.5 mm / 1.06 -inch x 0.55 -inch x 0.3 -inch (L*W*H)
Mounting Hole Diameter: 4mm/ 0.16 -inch
Cable Length (Each): 26cm / 10.24 -inch
Material: ABS (Housing)
Wire Type: 1007UL#24AWG
Color: White
Net Weight: 320g
Package Content:

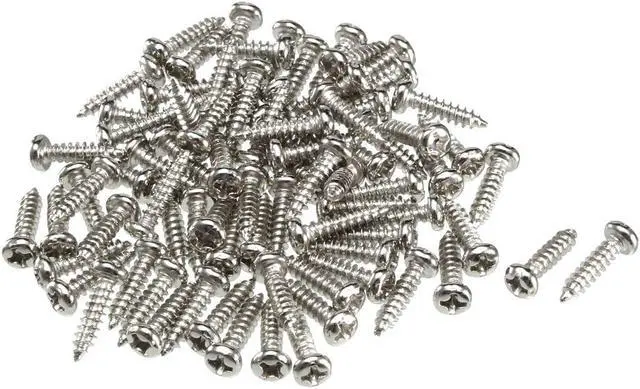

30pcs x Magnetic Door Switch, Some Install Parts
Note: Door magnetic induction can only provide a switch signal, which can not directly load the power, nor directly connect the lamp!
Long wire lead that is side mounted
Description:
1. Self-Adhesive Mount, Screw Surface Mount contact, ABS Housing. Long wire lead that can side mounted.
2.
Switch Type: NC means
Normally Closed: When the magnet together, the circuit is conductive ( light on ); when the magnet separate, the circuit is not conductive ( light off ).
3. Work as an anti-theft alarm, perfect for wood door and window.
Specification:
Product Name: Magnetic Door Switch
Model: MC-38
Contact Type: NC (Normally Closed)
Actuation Distance: 10-15mm
Max.
Current: 0.5A
Max.
Power: 10W
Working Voltage: DC100V
Each Size (Approx): 27 x 14 x 7.5 mm / 1.06 -inch x 0.55 -inch x 0.3 -inch (L*W*H)
Mounting Hole Diameter: 4mm/ 0.16 -inch
Cable Length (Each): 26cm / 10.24 -inch
Material: ABS (Housing)
Wire Type: 1007UL#24AWG
Color: White
Net Weight: 320g
Package Content:
30pcs x Magnetic Door Switch, Some Install Parts
Note: Door magnetic induction can only provide a switch signal, which can not directly load the power, nor directly connect the lamp!
