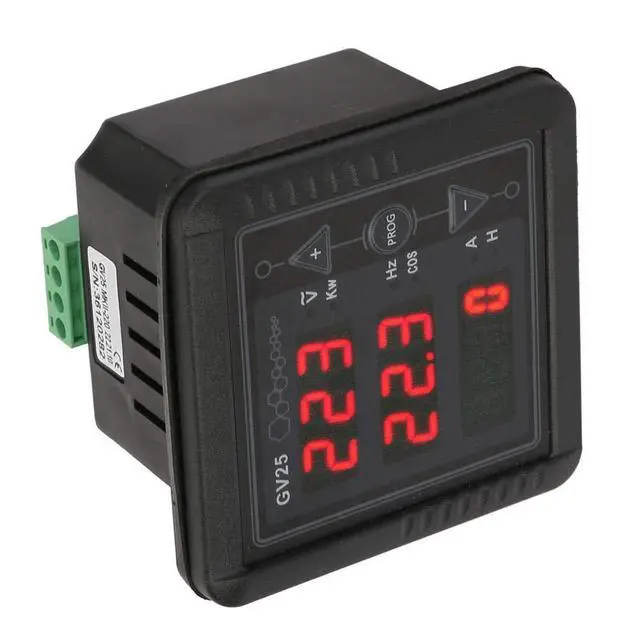

LED Digital Display Multifunction Power Energy Meter Voltage Current Frequency Tester 110/220V System Generator Panel Meter for Electric Equipment Monitoring
- After installation, the panel front reaches IP54 level and is to use.Ability to measure and display voltage, frequency and current simultaneously.
- 3-digit high-brightness LED digital tube displays the measured value for easy reading.The current transformer ratio can be set and the is simple.
- Parameter display: AC voltage, frequency, current, power, power factor, accumulated working time, range and accuracy.
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
6-in-1

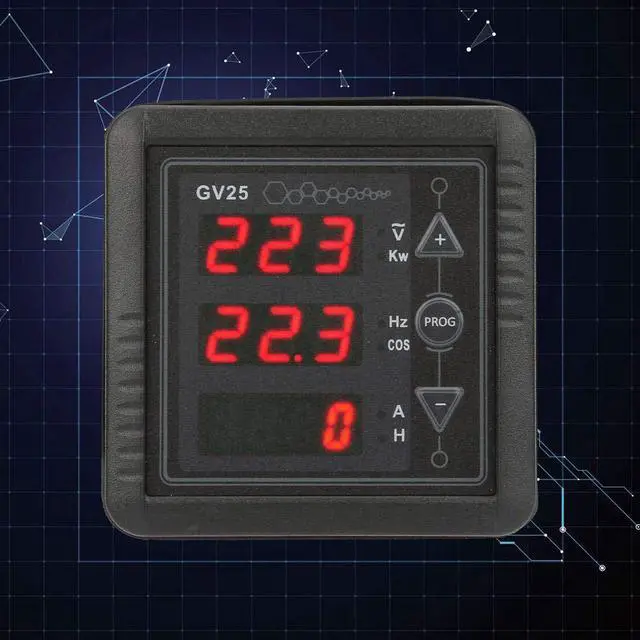

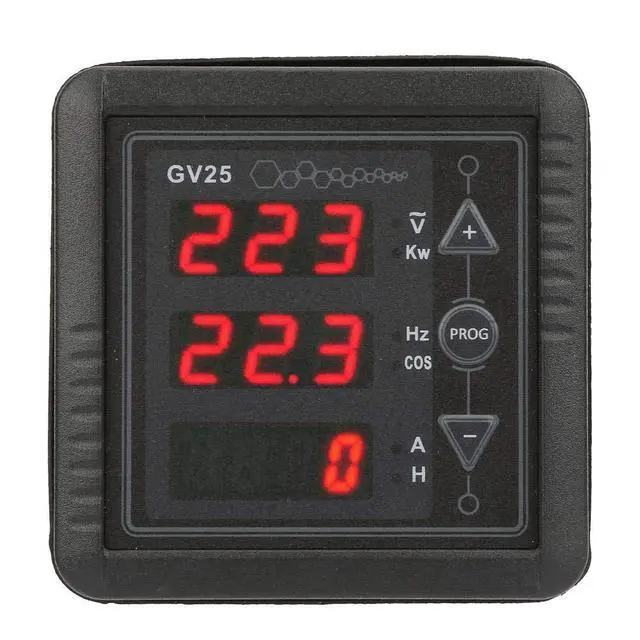

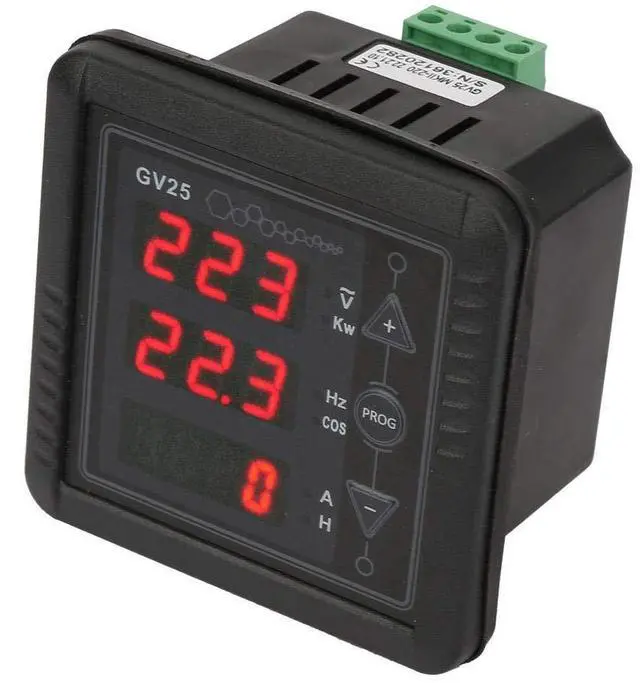

Generator Digital Meter: single-phase AC voltage, current, frequency, power, power factor, cumulative time, three-screen LED display with screen change button

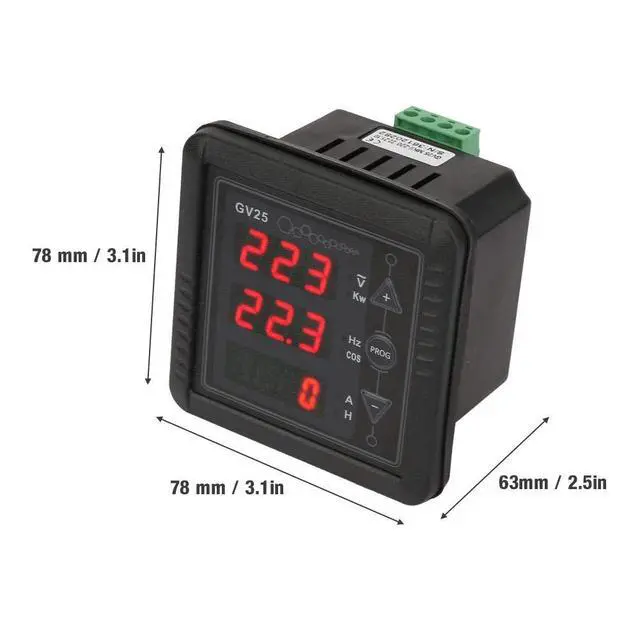

Volume size (W * H * D): Approx. 78 mm * 78 mm * 63 mm / 3.1 * 3.1 * 2.5 in Install open hole (W *
H): Approx. 67mm * 67mm / 2.6 * 2.6 in
Package List: 1 * Digital Meter 2 * Fixing screw
Note:
1. 110V, 220V is universal, 380V needs to be ordered separately.

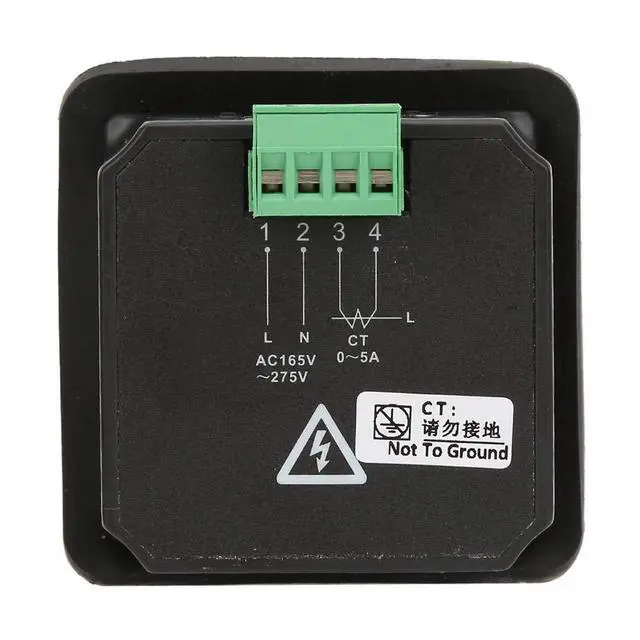

2. With the L version, you need to match the dedicated current transformer.
3. Please allow slight error due to manual measurement. Thanks for your understanding.
4. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.
Specification
Item Type Generator Digital Meter
Power consumption MAX 1W
Operating temperature range -20 ~ 65
Volume size (W * H * D) Approx. 78 mm * 78 mm * 63 mm / 3.1 * 3.1 * 2.5 in
Install open hole (W * H) Approx. 67mm * 67mm / 2.6 * 2.6 in
Protection Level IP54 (after installation, front panel)
Voltage 110V system: AC90 ~ 130V, error
± 1% 220V system: AC165 ~ 265V, error
± 1% 380V system: AC360-440V, error ± 1%
Frequency 50Hz system: 45-60Hz, error ± 0.5 % 60Hz system: 55-65Hz, error ± 0.5 %
Secondary current 5A: 5-6000 A, error ± 2.5 %
Secondary current 50mA: 1-200A, error ± 2.5 %
Power Error ± 3%, within the range
Power factor COS 0-1, error ± 1%
Accumulated working time 0.0 -9999 hours, minimum time 0.1H
Working power supply 110V,
220V system: AC85 ~ 265V, 50
/ 60Hz 380V system: AC360 ~ 440V, 50Hz
Generator Digital Meter: single-phase AC voltage, current, frequency, power, power factor, cumulative time, three-screen LED display with screen change button
Volume size (W * H * D): Approx. 78 mm * 78 mm * 63 mm / 3.1 * 3.1 * 2.5 in Install open hole (W *
H): Approx. 67mm * 67mm / 2.6 * 2.6 in
Package List: 1 * Digital Meter 2 * Fixing screw
Note:
1. 110V, 220V is universal, 380V needs to be ordered separately.
2. With the L version, you need to match the dedicated current transformer.
3. Please allow slight error due to manual measurement. Thanks for your understanding.
4. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.
Specification
Item Type Generator Digital Meter
Power consumption MAX 1W
Operating temperature range -20 ~ 65
Volume size (W * H * D) Approx. 78 mm * 78 mm * 63 mm / 3.1 * 3.1 * 2.5 in
Install open hole (W * H) Approx. 67mm * 67mm / 2.6 * 2.6 in
Protection Level IP54 (after installation, front panel)
Voltage 110V system: AC90 ~ 130V, error
± 1% 220V system: AC165 ~ 265V, error
± 1% 380V system: AC360-440V, error ± 1%
Frequency 50Hz system: 45-60Hz, error ± 0.5 % 60Hz system: 55-65Hz, error ± 0.5 %
Secondary current 5A: 5-6000 A, error ± 2.5 %
Secondary current 50mA: 1-200A, error ± 2.5 %
Power Error ± 3%, within the range
Power factor COS 0-1, error ± 1%
Accumulated working time 0.0 -9999 hours, minimum time 0.1H
Working power supply 110V,
220V system: AC85 ~ 265V, 50
/ 60Hz 380V system: AC360 ~ 440V, 50Hz
