Thermal Camera MLX90640-D55 IR Array Thermal Imaging Camera,I2C Interface 32 * 24 Pixel Infrared Array,55 Degree Field of View

4. Noise Equivalent Temperature Difference (NETD) is 0.1K RMS @ 1Hz refresh rate
5. Available for open development resources and tutorials which are intended for Raspberry Pi Development Board

Overview:

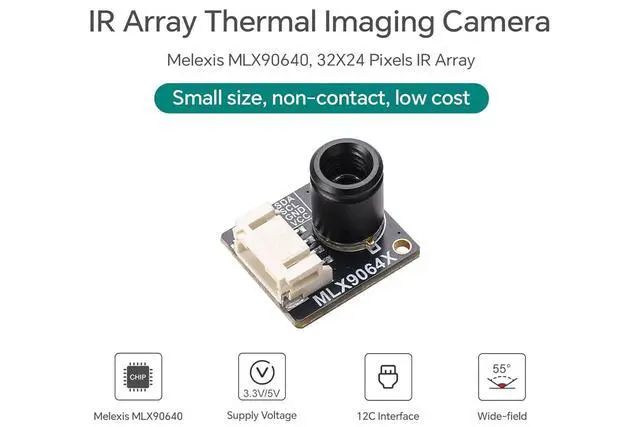

Thermal Camera MLX90640-D55 is a far-infrared thermal sensor array designed with MLX90640.
With a resolution of 32*24, it provides great performance for applications that do not require high-resolution images or high frame rate,
and provides a cost-effective alternative to more expensive high-end infrared thermal camera.
Typical applications for the MLX90640 include fire protection systems, intelligent buildings,
Intelligent lighting, IP/surveillance cameras, HVAC equipment and vehicle seat occupancy detection.

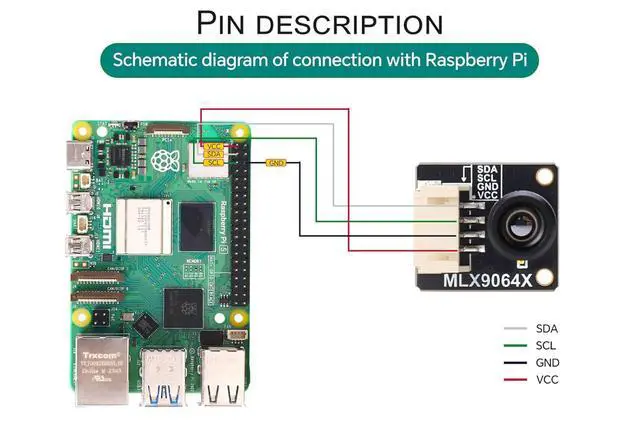

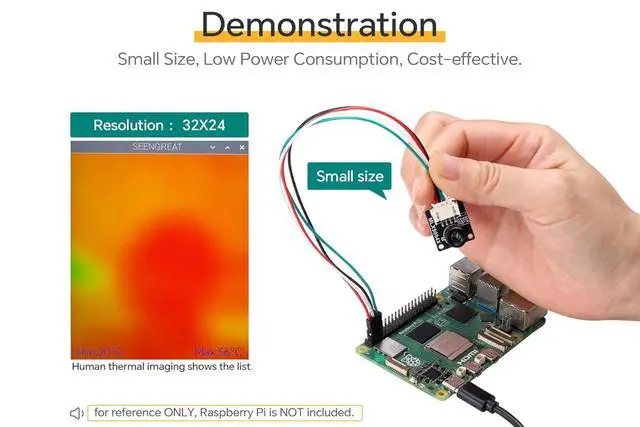

This product provides demo codes intended for Raspberry Pi platform. The demo codes is divided into C and python versions,
both of which include thermal image display function.

Specifications

:
Dimensions: 20mm (length) *18mm (width)
Resolution: 32*24
Refresh Rate: 0.5H z~64Hz
Field Of View (FOV): 55°×35°
Communication Interface: I2C
Supply Voltage: 3.3V /5V
Working Current: <23mA
Operating Temperature: -45~85
Temperature Measuring Range: -40300
Absolute Accuracy: ±2
Package contents:

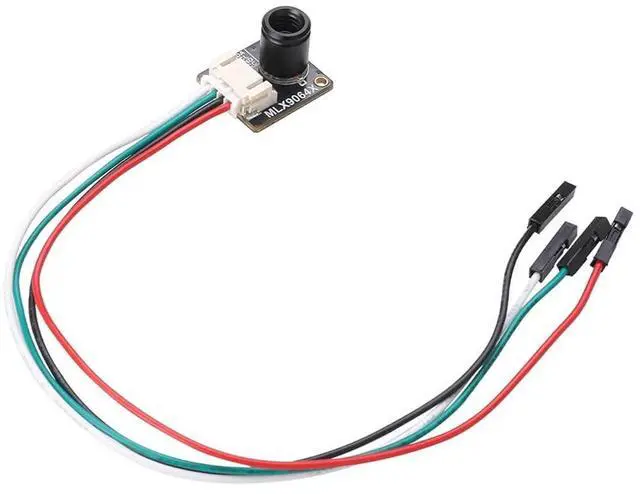

1. Thermal Camera MLX90640-D55×1
2. PH 2.0 4PIN wire×1
