AMG8833 8 * 8 IR Thermal Camera Sensor Breakout Imager Array Temperature Sensor Module Grid-Eye 8x8 Infrared Camera Module Array Board IIC I2C 3-5V for Raspberry Pi AMG-8833
- AMG8833 of 8x8 thermal IR sensor, returns an array of 64 individual infrared temperature readings over I2C (default address 0x69, optional 0x68)
- The IR 8x8 sensor only supports I2C and has a configurable interrupt pin that can be triggered when any single pixel is above or below your set threshold.
- AMG8833 IR 8*8 thermal imager array temperature sensor module Simply supply power and connect the digital communication pins (I2C) to your motherboard, ESP8266, Raspberry Pi, etc.Perfect for creating your own human detector or mini thermal camera.
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
AMG8833 compatible with both 5V and 3.3V power and logic.
AMG8833 IR 8*8 Infrared sensor camera module can detect humans from a distance of up to 7 meters (23) feet. It is a perfect fit for creating your own human detector or mini camera.
Features:
Temperature range: 0~80°C (32~176°F)
This breakout PCB facilitates using the BME680 sensor, specially on solderless breadboards.

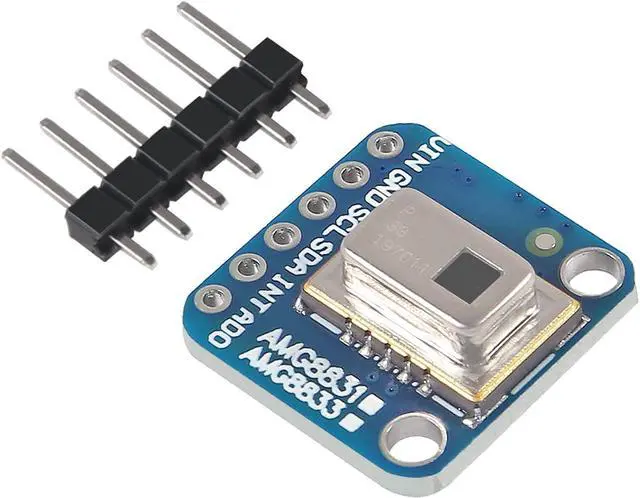

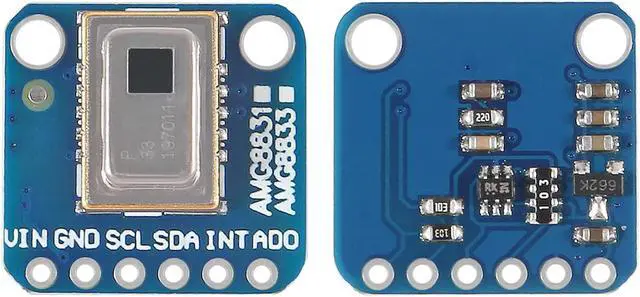

Sturdy ( 1.6 mm), blue PCB with a 6-pin header on on side (VIN, GND, SDA, SCL, INT, and AD0)
6-Pin header included (soldering needed)

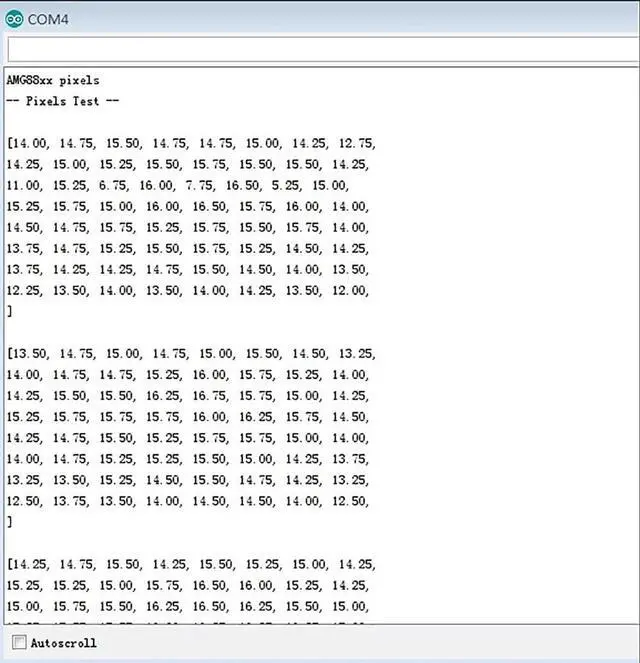

The AMG8833 returns an array of 64 individual infrared temperature readings over I2C to your microcontroller or single-board computer (Raspberry Pi).
It's like those fancy thermal cameras, but compact and simple enough for easy integration.
This part will measure temperatures ranging from 0~80°C (32~176°F) with an accuracy of ± 2.5 °C ( 4.5 °F). It can detect a human from a distance of up to 7 meters (23) feet.
with a maximum frame rate of 10Hz, It's perfect for creating your own human detector or mini thermal camera.
Package include
1 X AMG8833 Module
AMG8833 IR 8*8 Infrared sensor camera module can detect humans from a distance of up to 7 meters (23) feet. It is a perfect fit for creating your own human detector or mini camera.
Features:
Temperature range: 0~80°C (32~176°F)
This breakout PCB facilitates using the BME680 sensor, specially on solderless breadboards.
Sturdy ( 1.6 mm), blue PCB with a 6-pin header on on side (VIN, GND, SDA, SCL, INT, and AD0)
6-Pin header included (soldering needed)
The AMG8833 returns an array of 64 individual infrared temperature readings over I2C to your microcontroller or single-board computer (Raspberry Pi).
It's like those fancy thermal cameras, but compact and simple enough for easy integration.
This part will measure temperatures ranging from 0~80°C (32~176°F) with an accuracy of ± 2.5 °C ( 4.5 °F). It can detect a human from a distance of up to 7 meters (23) feet.
with a maximum frame rate of 10Hz, It's perfect for creating your own human detector or mini thermal camera.
Package include
1 X AMG8833 Module
