HD-SDI to Fiber Converter, Uncompressed Optical Extender Kit for Security Camera CCTV Video, Support 1080P Over Single-Mode SMF up to 20km, Mini Design with Type-C Power, a Pair
- What You Get: 1 pair single-mode fiber optic extenders; 2 x Type-C Power Adapters; 1 x User Manual. Wide voltage input (100V-240V), 5V DC powered. UL certified.
- Long-Distance HD VideoTransmits uncompressed HD-SDI video up to 20km over fiber with zero latency. Built-in auto calibration ensures broadcast-grade signal quality.
- Plug & PlayAuto-detects and connects to all HD-SDI devicesno configuration needed. Supports 270Mbps to 1.485Gbps signals and 8-channel embedded audio.
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Rugged & ReliableOperates from -20°C to +70°C in harsh conditions. All-metal housing provides superior heat dissipation and durability.

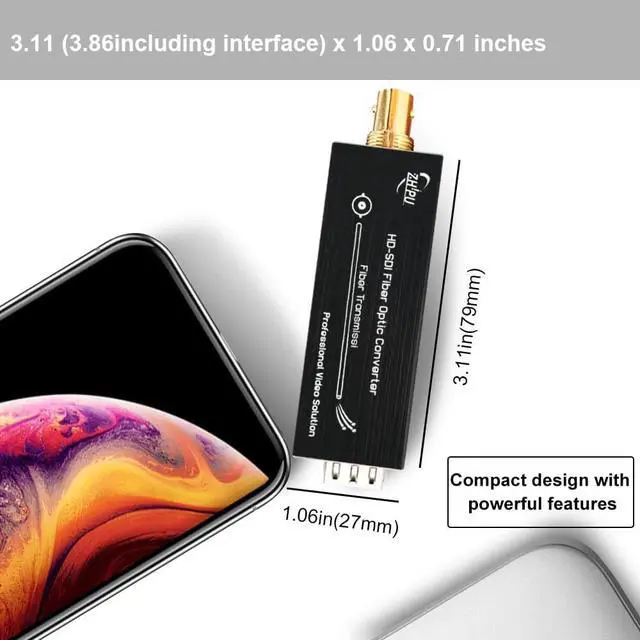

Compact & EfficientUltra-compact design ( 3.74 * 1.06 * 0.71 inches) with under 3W power consumption. Universal Type-C power and hot-swap support for easy integration.

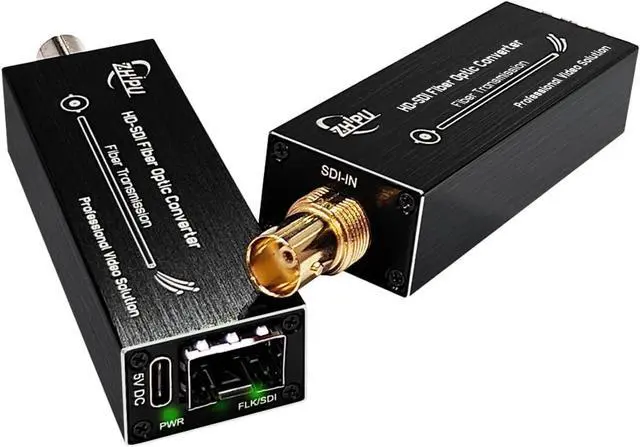

The mini HD-SDI Fiber optic Converter supports 1-channel HD-SDI video ( embedded audio ), supports plug and play, 1080P 30Hz (1080i 60Hz) without compression and damage. And the long distance transmission over single mode can reach 20 km (doesn't come with modules but module is available at the store)
Each channel includes 8-channel audio embedded; Directly compatible with HD-SDI camera systems; fully digital non-compression broadcast level transmission; LED Status Indication tomonitor the working conditions
Supported 1.25G modules wavelengths: singlemode 1310/1550nm 20km; multimode 850nm 550m
HD SDI over Fiber Extender 5V Type-C

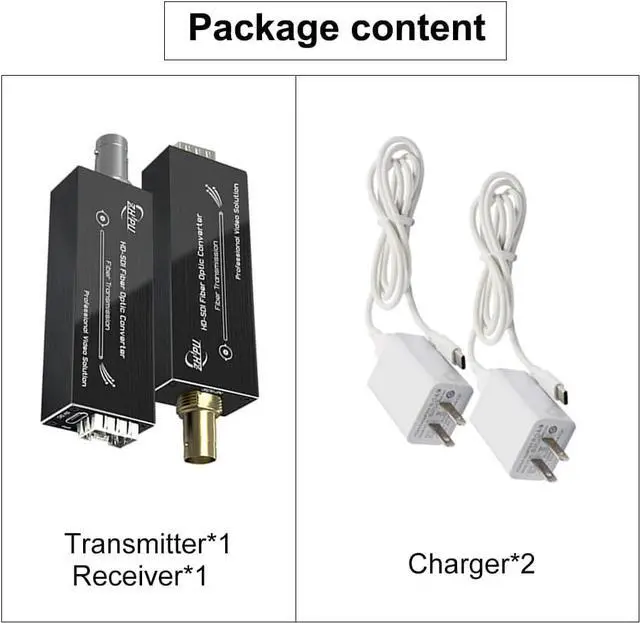

What's inside?
One SDI-IN Transmitter
One SDI-OUT Receiver
Two Type-C 5V/2A Power Adapters
One Mini HD SDI Optical Fiber Converter Users Manual
Tips:

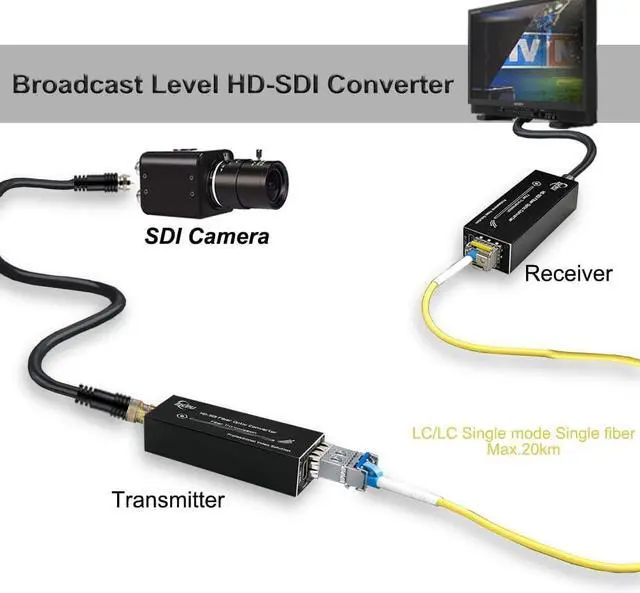

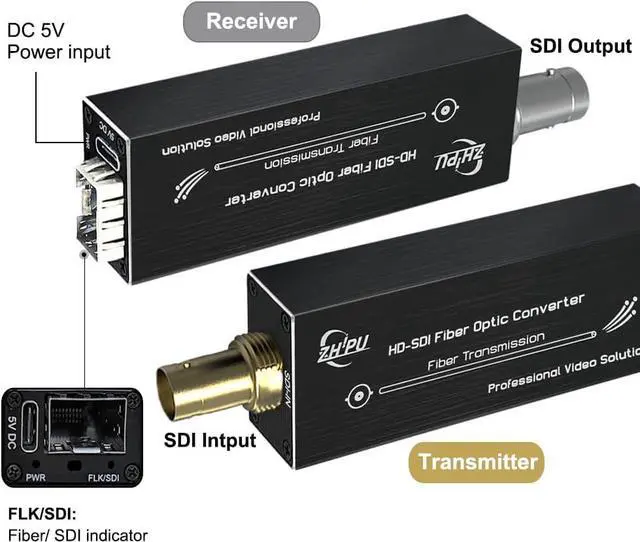

SDI-IN: Connect the SDI camera with sdi cable (50m).
SDI-OUT: Connect the SDI display with sdi cable (50m). 5V
DC: Plug the 5V DC power supply into the unit, can support rechargeable power supply.
Fiber interface 1000Base-X SFP
Video interface BNC
Video Signal HD-SDI Signal
SDI standard 270Mbps (SD-SDI)/ 1.485G bps (HD-SDI)
SDI format support 625/25PAL; 525/ 29.97NTSC; 525/ 23.98NTSC; 720p50; 720p 59.94; 1080P 23.98 /24/30; 1080i 23/24/30/50/ 59.94
Dimensions (LxWxH) 79 (95 include interface) x 27 x 18 mm; 3.11 ( 3.86 ) x 1.06 x 0.71 inch
Power adaptor DC 5V/2A
Power Consumption 5W
Operating Temperature 060
Technical standard SMPTE
Compact & EfficientUltra-compact design ( 3.74 * 1.06 * 0.71 inches) with under 3W power consumption. Universal Type-C power and hot-swap support for easy integration.
The mini HD-SDI Fiber optic Converter supports 1-channel HD-SDI video ( embedded audio ), supports plug and play, 1080P 30Hz (1080i 60Hz) without compression and damage. And the long distance transmission over single mode can reach 20 km (doesn't come with modules but module is available at the store)
Each channel includes 8-channel audio embedded; Directly compatible with HD-SDI camera systems; fully digital non-compression broadcast level transmission; LED Status Indication tomonitor the working conditions
Supported 1.25G modules wavelengths: singlemode 1310/1550nm 20km; multimode 850nm 550m
HD SDI over Fiber Extender 5V Type-C
What's inside?
One SDI-IN Transmitter
One SDI-OUT Receiver
Two Type-C 5V/2A Power Adapters
One Mini HD SDI Optical Fiber Converter Users Manual
Tips:
SDI-IN: Connect the SDI camera with sdi cable (50m).
SDI-OUT: Connect the SDI display with sdi cable (50m). 5V
DC: Plug the 5V DC power supply into the unit, can support rechargeable power supply.
Specifications
Fiber interface 1000Base-X SFP
Video interface BNC
Video Signal HD-SDI Signal
SDI standard 270Mbps (SD-SDI)/ 1.485G bps (HD-SDI)
SDI format support 625/25PAL; 525/ 29.97NTSC; 525/ 23.98NTSC; 720p50; 720p 59.94; 1080P 23.98 /24/30; 1080i 23/24/30/50/ 59.94
Dimensions (LxWxH) 79 (95 include interface) x 27 x 18 mm; 3.11 ( 3.86 ) x 1.06 x 0.71 inch
Power adaptor DC 5V/2A
Power Consumption 5W
Operating Temperature 060
Technical standard SMPTE
