Red Line Laser Module, 110° Fan Angle, 90 cm Focus Length, Class 1 (<0.39 mW), 635nm, VLM-635-56 LPO-D110-F90, Stainless Steel Housing, 3~6 VDC, Medical & scientific measurement

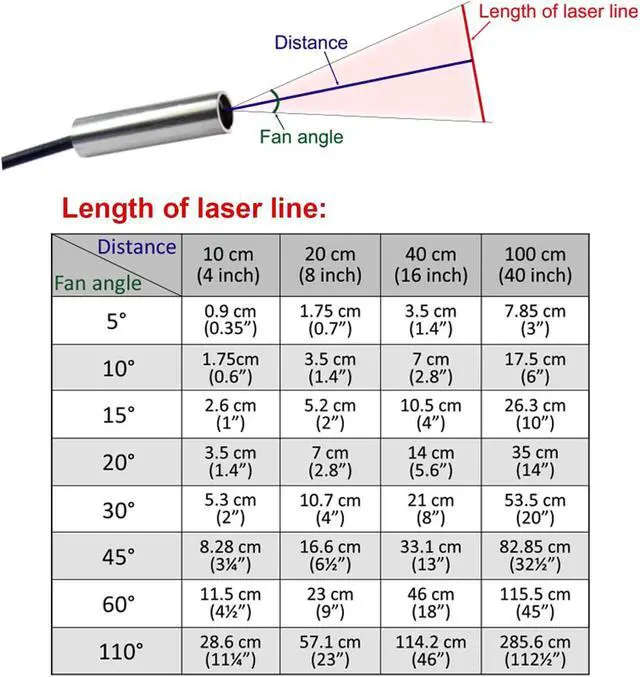

- 110° WIDE-ANGLE UNIFORM RED LASER LINE: VLM-635-56 LPO-D110-F90 projects a precise and uniform red laser line with a 110° fan angle, delivering a line length of 300 cm at 100 cm distance (118.11 at 40 inches). Designed for close-range machine vision, automation, and alignment applications requiring consistent brightness and high accuracy.

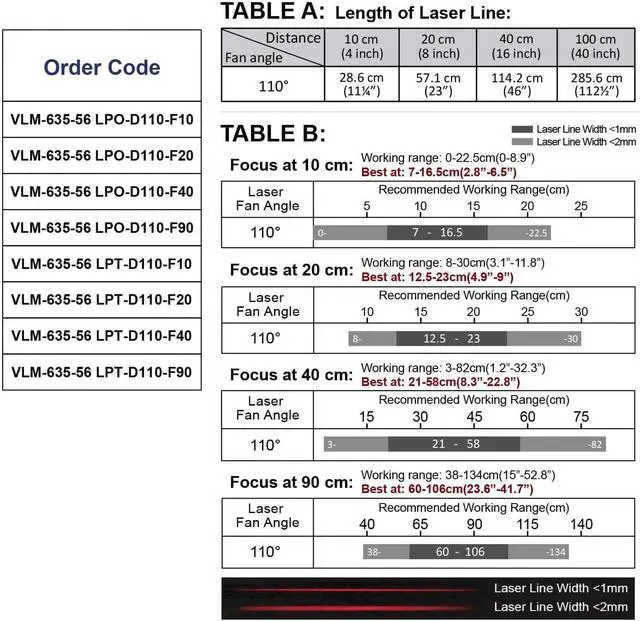

- HIGH-PRECISION OPTICS FOR SHORT-RANGE PERFORMANCE: Built with a dual-glass optical system - glass line lens + aspherical glass collimating lens - to maintain sharp, evenly distributed illumination without bright centers or edge fading. Optimized for a 90 cm focus length, with recommended working range 38~134cm (14.96~52.76 inches) and best performance at 60~106 cm (23.62~41.73 inches)
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
ENGINEERED INDUSTRIAL-GRADE SPECIFICATIONS:
Wavelength: 630~665 nm (Red);

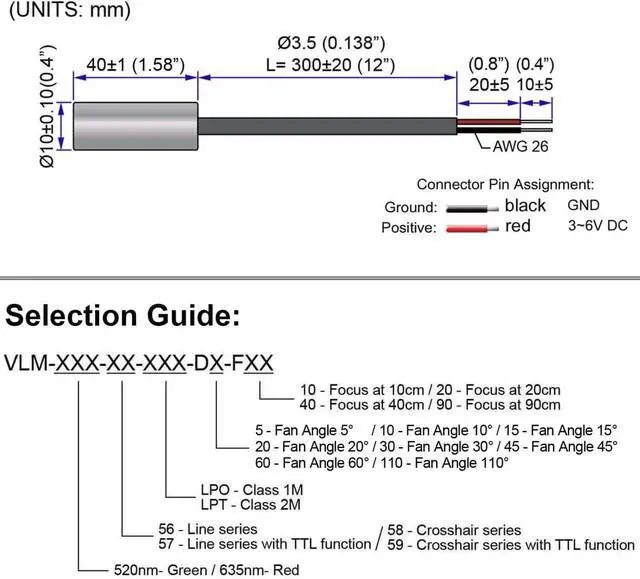

Laser Output Power: Class 1 ( <0.39 mW) at 90 cm (IEC-60825-1 compliant); Dimensions: Ø10 × 40 mm (Ø0.39" x 1.575"). Weight: 22g (0.776 oz.); Line width achievable down to sub-millimeter precision depending on system setup. Designed for integration into automation equipment requiring stable, consistent line projection
BUILT FOR DURABILITY & SYSTEM INTEGRATION: Rugged stainless steel housing provides excellent corrosion resistance for laboratory, medical, inspection, or industrial environments. Internal electronic protections include reverse polarity, over-current, surge, and short-circuit protection, enabling safe integration without additional external driver boards.

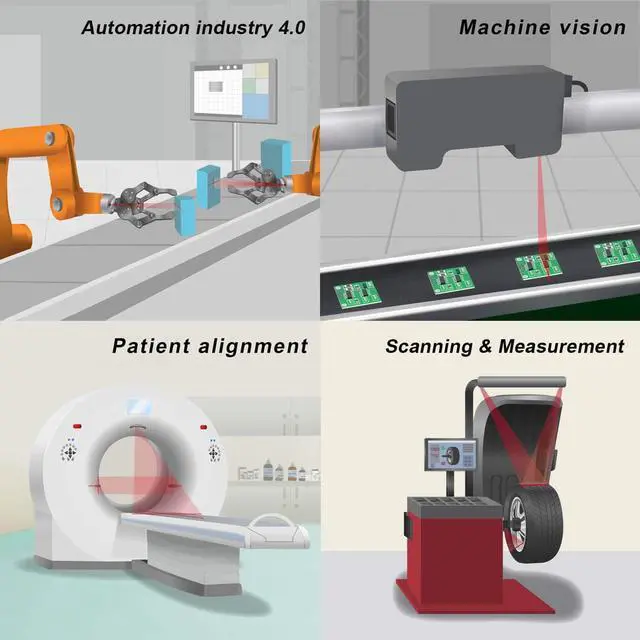

OPTIMIZED FOR MACHINE VISION & AUTOMATION: Crafted in Taiwan by, this module supports close-range precision tasks including: machine vision, image processing, medical & scientific devices, scanning, measurement, 3D profiling, counting systems, and general automation alignment. Ideal for environments requiring reliable and uniform near-field laser line projection.
Wavelength: 630~665 nm (Red);
Laser Output Power: Class 1 ( <0.39 mW) at 90 cm (IEC-60825-1 compliant); Dimensions: Ø10 × 40 mm (Ø0.39" x 1.575"). Weight: 22g (0.776 oz.); Line width achievable down to sub-millimeter precision depending on system setup. Designed for integration into automation equipment requiring stable, consistent line projection
BUILT FOR DURABILITY & SYSTEM INTEGRATION: Rugged stainless steel housing provides excellent corrosion resistance for laboratory, medical, inspection, or industrial environments. Internal electronic protections include reverse polarity, over-current, surge, and short-circuit protection, enabling safe integration without additional external driver boards.
OPTIMIZED FOR MACHINE VISION & AUTOMATION: Crafted in Taiwan by, this module supports close-range precision tasks including: machine vision, image processing, medical & scientific devices, scanning, measurement, 3D profiling, counting systems, and general automation alignment. Ideal for environments requiring reliable and uniform near-field laser line projection.
