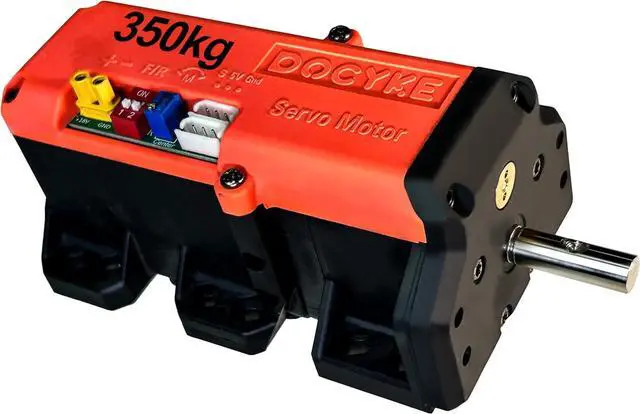

350kg High Torque RC Servo, 2 in 1 Mode 16V~24V High Voltage Full Metal Gear Digital Servo Angle 360°

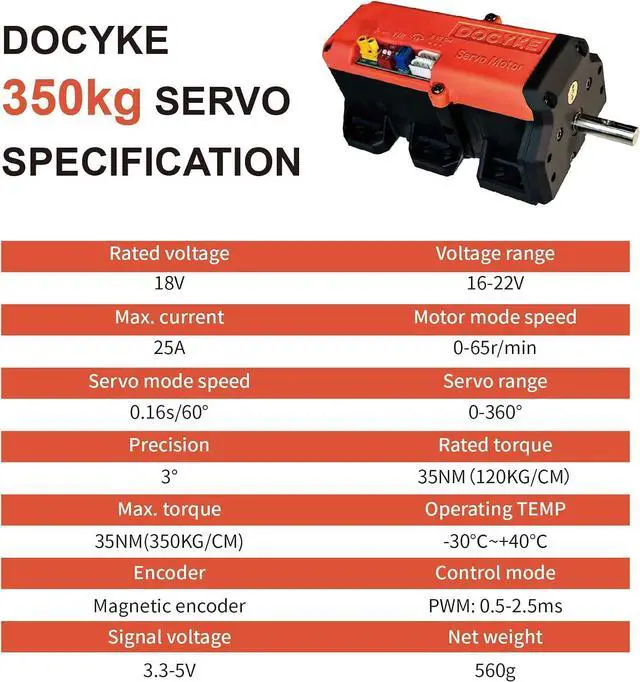

- 16V-24V (Rate 18V); Speed ( 18v): 0.16s/60°. Max Torque: 350kg.cm(35NM) ; Rated torque: 150kg.cm ; Angle range: 0-360 ° ; Input signal: PWM: 50us ~ 2200us, 50-400Hz.
- Magnetic encoder feedback ; hardness steel planetary gear transmission ; Overcurrent protect; jam protection; over temperature protection;
- The signal port will provide 5V/1A for the control device, such as remote control receiver, PCB, and we can greatly simplify the power supply of the device.
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

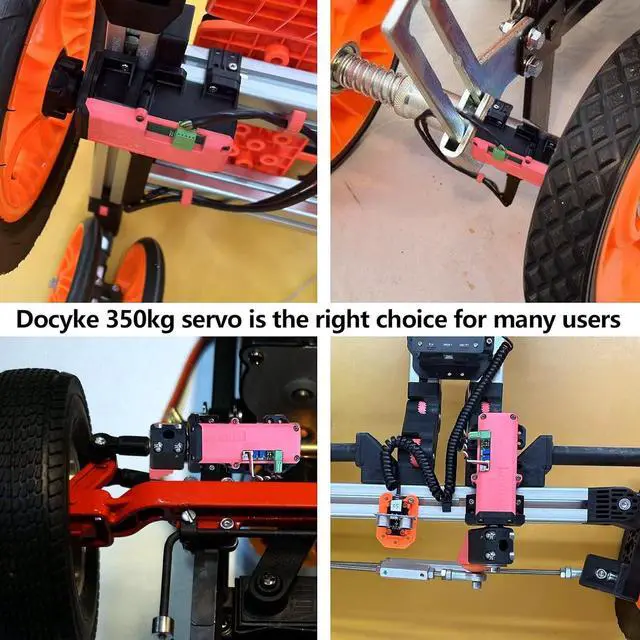

You can use like normal Servo or motor, DIY an advanced robot, robotic arms, PTZ cameras, Remote control vehicle, and other mechanical projects. At Motor Mode, you can use like wheel-drive, or DC motor. It can perfectly compatible with for Futaba, for JR, for SANWA, for Hitec and other remote systems and PCB

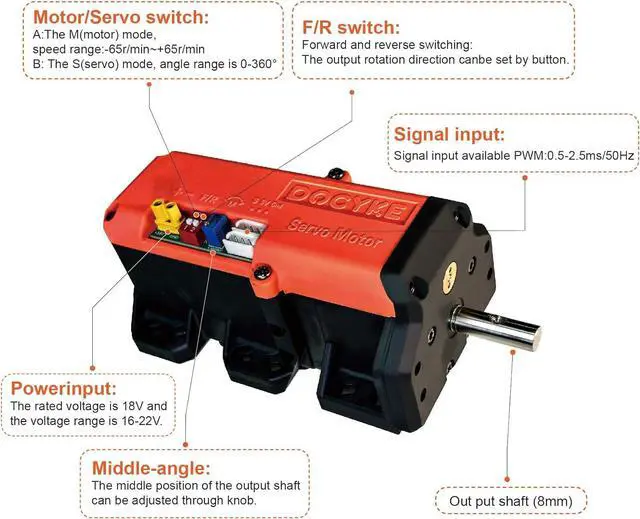

Two modes: servo and motor, which is selected by a DIP switch. In servo mode the shaft rotation 0-360 degrees for 5 to 20mSec pulse width. There are gain and offset potentiometers to calibrate the motion. There is also a reversing DIP switch to change the sense of the rotation.
NOTE! As this is a high-power servo, so a high-power power supply (16-24V, 25A) is required, We recommend using 20V battery.

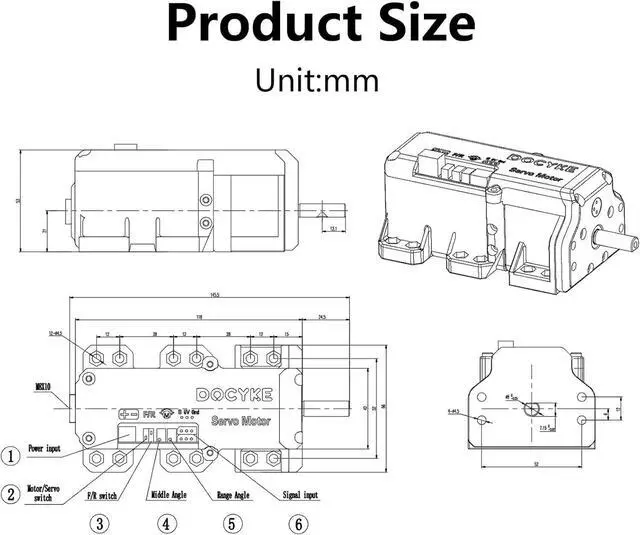

Servo Size: L143mm; W66mm; H58m.
Weight: 550g.
Product included: 350kg Servo*1, Accessories: big Bracket *2, small Bracket *2, cable*1
Two modes: servo and motor, which is selected by a DIP switch. In servo mode the shaft rotation 0-360 degrees for 5 to 20mSec pulse width. There are gain and offset potentiometers to calibrate the motion. There is also a reversing DIP switch to change the sense of the rotation.
NOTE! As this is a high-power servo, so a high-power power supply (16-24V, 25A) is required, We recommend using 20V battery.
Servo Size: L143mm; W66mm; H58m.
Weight: 550g.
Product included: 350kg Servo*1, Accessories: big Bracket *2, small Bracket *2, cable*1
