Fuel Line Quick Connect Kit 24PCS,Assorted 5/16 3/8 Fuel Line Fittings Nylon Straight Push-On Release Hose Connector

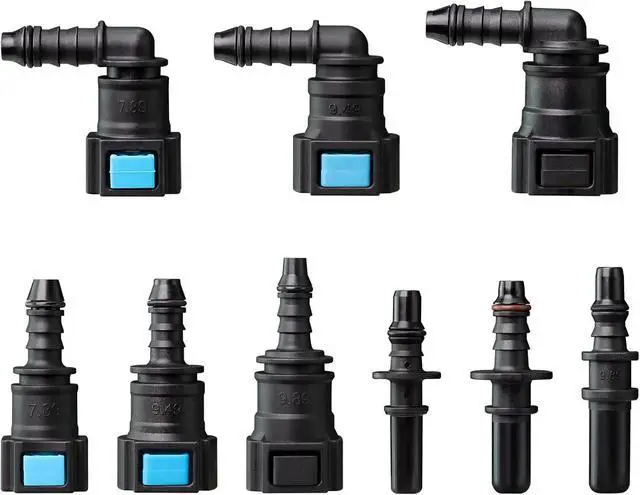

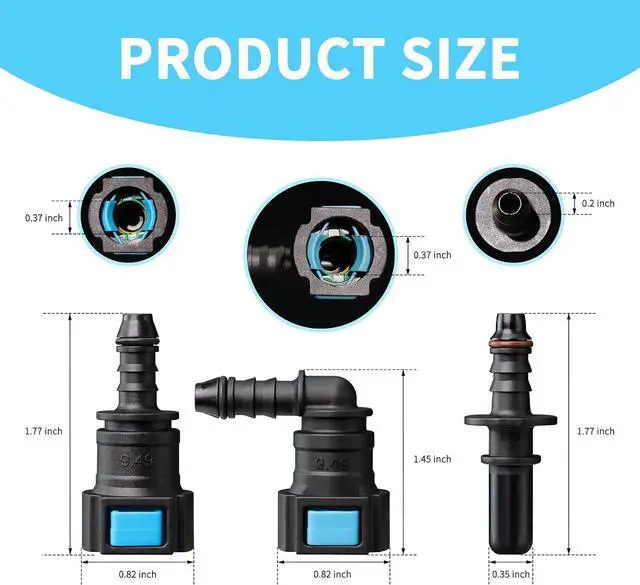

- Full Specification Compatibility:Provides 3 types of fittings (90° elbow / straight / mini straight tube) in 9 size combinations, covering 7.89mm / 9.49mm / 9.89mm × 8mm standard tubing diameters. The kit includes 24 fittings to meet various piping connection needs.

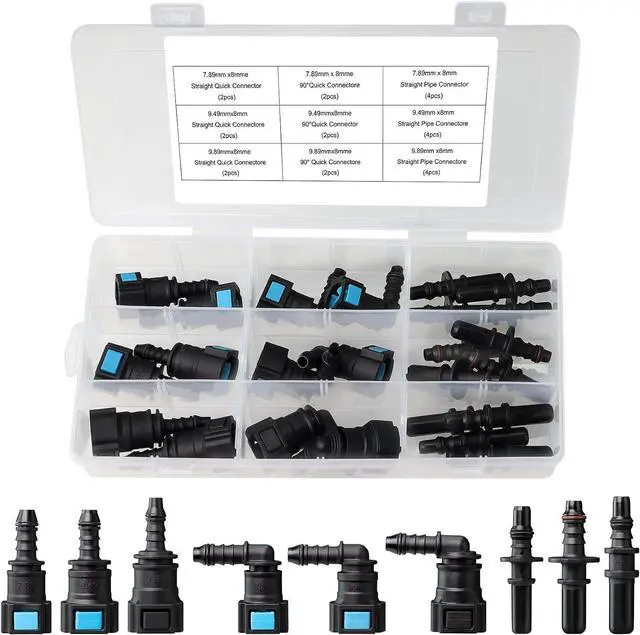

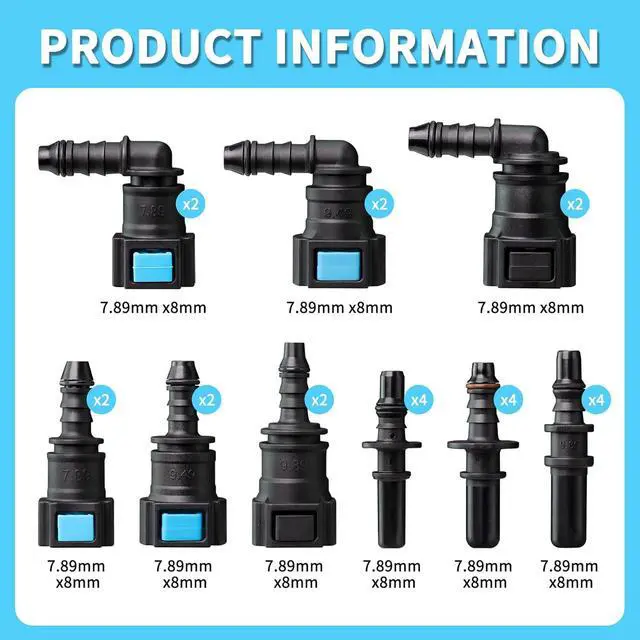

- Product Details: 90° Elbow Connector: 7.89mm × 8mm (2 pcs), 9.49mm × 8mm (2 pcs), 9.89mm × 8mm (2 pcs) Straight Female Quick-Connect: 7.89mm × 8mm (2 pcs), 9.49mm × 8mm (2 pcs), 9.89mm × 8mm (2 pcs) Male Quick-Connect: 7.89mm × 8mm (4 pcs), 9.49mm × 8mm (4 pcs), 9.89mm × 8mm (4 pcs).
- Military-Grade Durability:Made from high-quality PA12 nylon (black, one-piece construction), ensuring high strength and corrosion resistance for extended service life in harsh environments.
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Quick-Connect Installation: Push-to-lock barbed fitting for instant secure connections. One-button release mechanismjust press and pull to disconnect. Saves 80% installation time compared to traditional fittings.

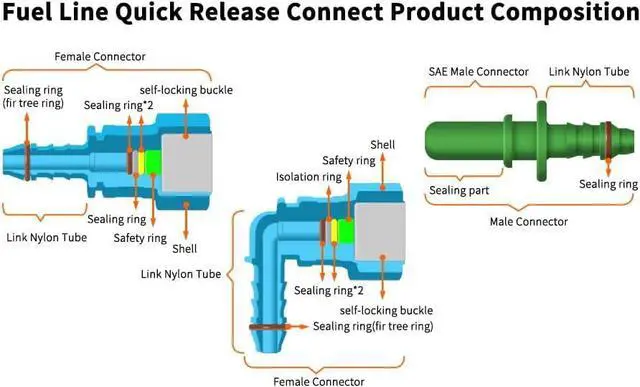

Leak-Proof Guarantee: Triple-seal design (O-ring + axial compression + radial locking), Pressure-tested for safety, ensuring zero leakage.
ALL YOUR NEED IN ONE PACKAGE

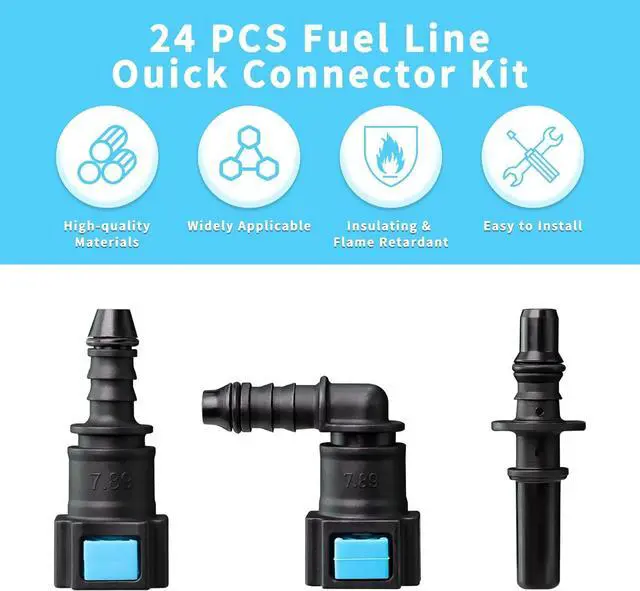

The package set of 24-piece quick disconnect fuel line connectors. It contains three types (90° elbow, straight female quick-connect, and male quick-connect), each available in three common sizes (for different fuel hose diameters). This kit covers the essential specifications for automotive fuel line repair and is very practical.
Usage Recommendations
Safety First: Before starting any work, ensure the vehicle is off and relieve the fuel system pressure.
Check for Leaks: After installation, turn the ignition on (but do not start the engine) to pressurize the system. Carefully check all connection points for any fuel seepage.
One-Time Use: The internal locking tabs and O-rings in these connectors can be damaged upon disassembly. For safety, it is highly recommended to treat them as one-time use parts after replacement.

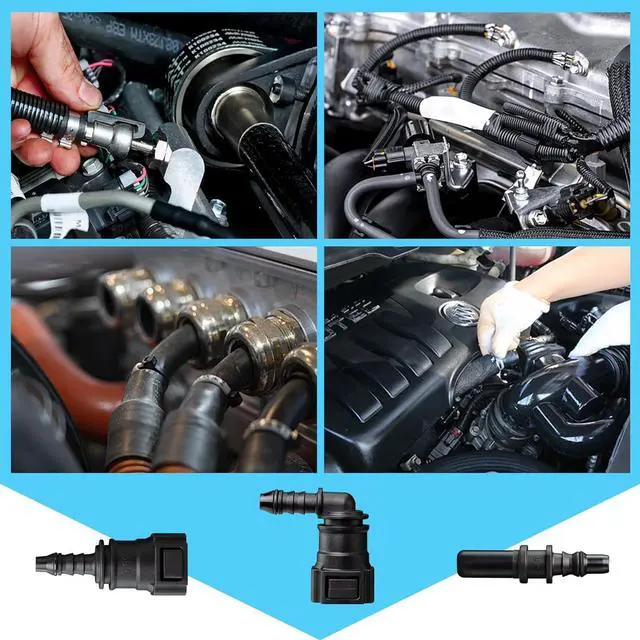

How it Works: The barbed end is inserted into the fuel hose, and a standard hose clamp is often used to secure it for extra safety. The quick-connect end then simply pushes and clicks onto the vehicle's existing fuel line nipple until it locks.
Leak-Proof Guarantee: Triple-seal design (O-ring + axial compression + radial locking), Pressure-tested for safety, ensuring zero leakage.
ALL YOUR NEED IN ONE PACKAGE
The package set of 24-piece quick disconnect fuel line connectors. It contains three types (90° elbow, straight female quick-connect, and male quick-connect), each available in three common sizes (for different fuel hose diameters). This kit covers the essential specifications for automotive fuel line repair and is very practical.
Usage Recommendations
Safety First: Before starting any work, ensure the vehicle is off and relieve the fuel system pressure.
Check for Leaks: After installation, turn the ignition on (but do not start the engine) to pressurize the system. Carefully check all connection points for any fuel seepage.
One-Time Use: The internal locking tabs and O-rings in these connectors can be damaged upon disassembly. For safety, it is highly recommended to treat them as one-time use parts after replacement.
How it Works: The barbed end is inserted into the fuel hose, and a standard hose clamp is often used to secure it for extra safety. The quick-connect end then simply pushes and clicks onto the vehicle's existing fuel line nipple until it locks.
