PS100PRO Automotive Circuit Tester & Short Finder 12V/24V Power Circuit Probe Kit with AC/DC Voltage Tester, Current Probe & Component Activation, Includes 20FT+20FT Cable
- Meeting All Automotive Circuit Needs: Circuit tester integrates eight core functions including voltage testing, component activation, positive/negative terminal testing, current waveform testing, resistance testing, diode testing, continuity testing, and frequency testing. Whether you're checking battery voltage, activating components like starters/fuel pumps/headlights, or troubleshooting circuit continuity and measuring resistance/frequency
- High Compatibility and Extended Battery Life: Circuit tester short finder supports two flexible power supply methods: it can be directly connected to an external battery or a car battery, or powered via the cigarette lighter to avoid power interruptions. With a 6-meter main test cable and a 6-meter extension cable, it easily connects to any part of the vehicle. Even hard-to-reach areas like deep in the engine compartment or under the chassis can be tested without frequently moving the device or the vehicle
+
+
Overview
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

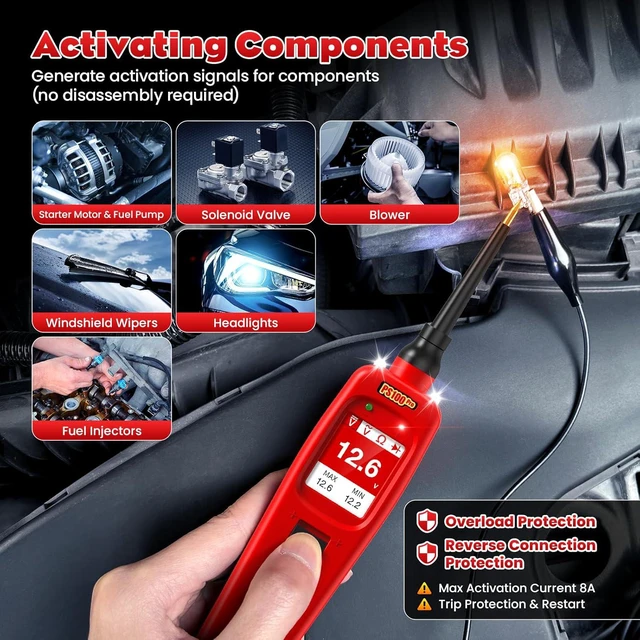

Dual Safety Protection: Electrical tester features built-in overload protection and reverse connection protection. If the activation current exceeds 8A, the device will automatically trip and can be reset by restarting. Theres no need to worry about damaging the device due to reverse polarity when connecting the battery terminals, reducing the risk of operational errors and ensuring safe use even for beginners.

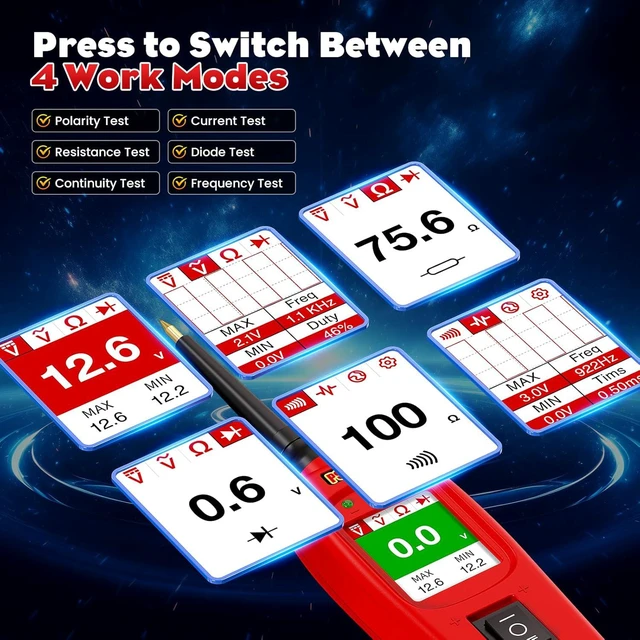

High-Definition Display: Electrical tester is equipped with a 1.8 -inch TFT color screen that clearly displays key data such as voltage, resistance, frequency, and duty cycle, while also supporting real-time reading of maximum/minimum values. It includes both a buzzer and dual-color red/green LED indicatorsfor example, the red LED lights up and the buzzer beeps when the positive terminal is detected, and a continuous beep with a red LED indicates circuit continuity. An LED light can also be turned on for visibility in dark environments, making testing status instantly recognizable.
User-Friendly Operation Design: The toggle switch supports single-click to switch interfaces/enter tests, double-click to lock the current display (for easy data comparison), and long-press to rotate the screen 180° (adapting to different testing angles). Before resistance testing, a "Do not test under power" prompt appears to guide proper operation. The device supports 12 language options, catering to users from different regions worldwide, with a low learning curve and quick mastery.
Wide Voltage Compatibility: The input voltage range is 8V~32V, with a testing voltage range of 0V~80V and an operating current of only 80mA. It is compatible with both 12V household cars and 24V trucks or construction machinery, making it suitable for a wide range of vehicles. The core components are made of high-quality materials and undergo rigorous performance testing, ensuring stable operation in common complex automotive repair environments such as high/low temperatures and vibrations, with a long service life.
All-in-One Electrical Diagnostic Tool
The video showcases the product in use. The video guides you through product setup. The video compares multiple products. The video shows the product being unpacked.
PS100PRO Automotive Circuit Tester
All-in-one circuit probe kit for 12-24V vehicle electrical systems.
Perform circuit testing, component activation, short circuit location, ground contact check, and more
Read Frequency, Duty Cycle, and Peak Voltages Instantly
View frequency, duty cycle, max/min voltages at a glance for faster
Unlock hidden AC circuit insights with real-time waveform display and key data readings.
All-in-One Diagnostic Tool with Visual Data, Polarity LED & Extended Cable
Designed with user-friendly functions like screen lock and 180° rotation to enhance efficiency.
Get Your Circuit Tester Ready
Get your Circuit Tester up and running in just 4 simple steps
Attach the probe, connect to power, select your mode, and start testing. No complicated setup required.
The Thoughtful Design of PowerScan Probe
12-language support for global users, clear LCD scree
High-Definition Display: Electrical tester is equipped with a 1.8 -inch TFT color screen that clearly displays key data such as voltage, resistance, frequency, and duty cycle, while also supporting real-time reading of maximum/minimum values. It includes both a buzzer and dual-color red/green LED indicatorsfor example, the red LED lights up and the buzzer beeps when the positive terminal is detected, and a continuous beep with a red LED indicates circuit continuity. An LED light can also be turned on for visibility in dark environments, making testing status instantly recognizable.
User-Friendly Operation Design: The toggle switch supports single-click to switch interfaces/enter tests, double-click to lock the current display (for easy data comparison), and long-press to rotate the screen 180° (adapting to different testing angles). Before resistance testing, a "Do not test under power" prompt appears to guide proper operation. The device supports 12 language options, catering to users from different regions worldwide, with a low learning curve and quick mastery.
Wide Voltage Compatibility: The input voltage range is 8V~32V, with a testing voltage range of 0V~80V and an operating current of only 80mA. It is compatible with both 12V household cars and 24V trucks or construction machinery, making it suitable for a wide range of vehicles. The core components are made of high-quality materials and undergo rigorous performance testing, ensuring stable operation in common complex automotive repair environments such as high/low temperatures and vibrations, with a long service life.
All-in-One Electrical Diagnostic Tool
The video showcases the product in use. The video guides you through product setup. The video compares multiple products. The video shows the product being unpacked.
PS100PRO Automotive Circuit Tester
All-in-one circuit probe kit for 12-24V vehicle electrical systems.
Perform circuit testing, component activation, short circuit location, ground contact check, and more
Read Frequency, Duty Cycle, and Peak Voltages Instantly
View frequency, duty cycle, max/min voltages at a glance for faster
Unlock hidden AC circuit insights with real-time waveform display and key data readings.
All-in-One Diagnostic Tool with Visual Data, Polarity LED & Extended Cable
Designed with user-friendly functions like screen lock and 180° rotation to enhance efficiency.
Get Your Circuit Tester Ready
Get your Circuit Tester up and running in just 4 simple steps
Attach the probe, connect to power, select your mode, and start testing. No complicated setup required.
The Thoughtful Design of PowerScan Probe
12-language support for global users, clear LCD scree
