WS2812B WS2811 DMX to SPI Controller Decoder, W/ 99 Color Modes, 5 Channel DMX 512 RGB WW Decoder Controller for WS2815 SK6812 WS2801 WS2813 LP6803 1903 RGBWW LED Pixels Light Strip DC5V~24V

Be the first to review this product...

Input voltage: DC5V/DC12V/DC24V; Input current: 15A max, please don't use for project that draws more than 15A current.

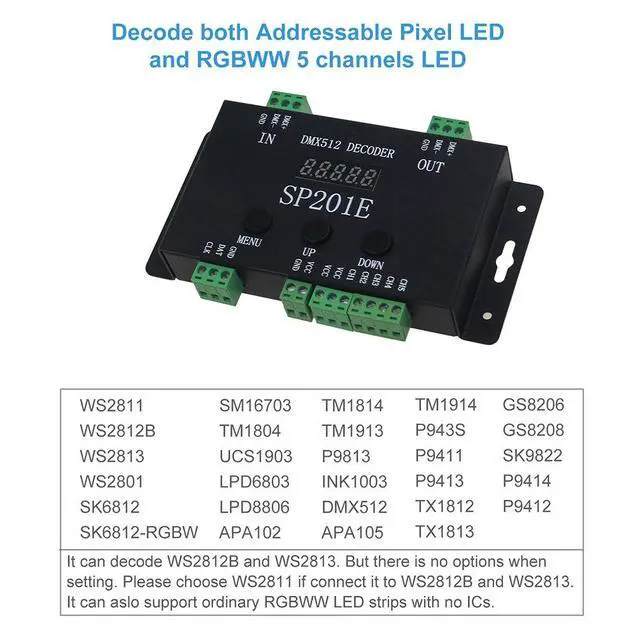

Support almost all the one-wire or two-wire LED driver ICs, such as WS2811,WS2812B, WS2815, WS2801, SK6812, SK6812-RGBW, WS2813, LPD6803, LPD8806, APA102, TM1913, UCS1903, SM16703, DMX512, etc.

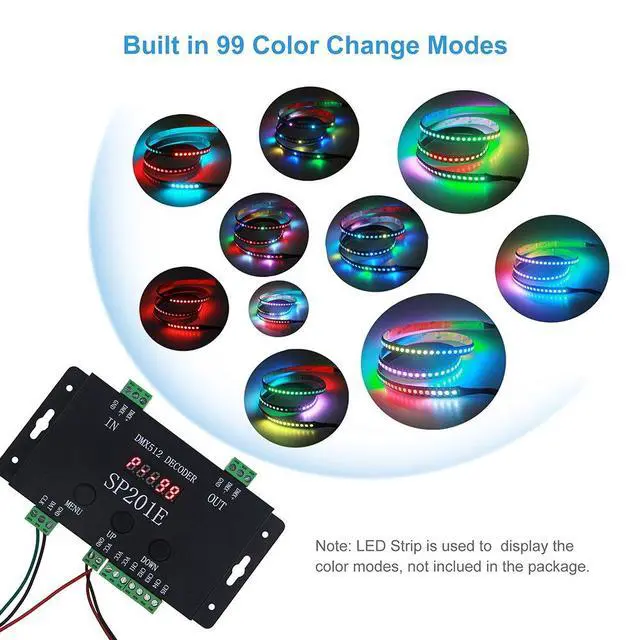

When no DMX signal input, it can work as SPI controller and control up to 1024 pixels. 99 kinds of built-in dynamic color modes are available, such as flash, glow, fading, smooth, chasing, stream, spreading, strobe, which are vivid and beautiful. Speed is adjustable.

Overview

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

When DMX signal input, it can identify DMX512 automatically and work as DMX decoder with standard DMX512 compliant interface. Decoding channels are adjustable.
Compared with other DMX decoders which can only decode one kind of LED, DMX decoder can decode both smart addressable pixel LED and RGBWW 5 channels LED.

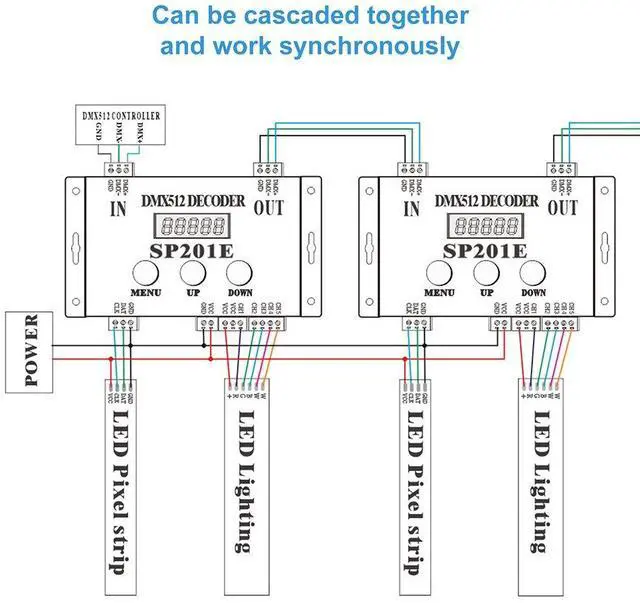

The DMX controllers / decoders can be cascaded together and work synchronously. DC 5V~24V wide working voltage; LCD display; Save user setting when power off. Reverse connection protection; hot swap protection.
