RS232/485/422 to RJ45 Ethernet Module, TCP/IP to Serial, with POE Function, Bi-Directional Transparent Transmission, Suitable for Data Acquisition, Intelligent Instrument Monitoring, etc

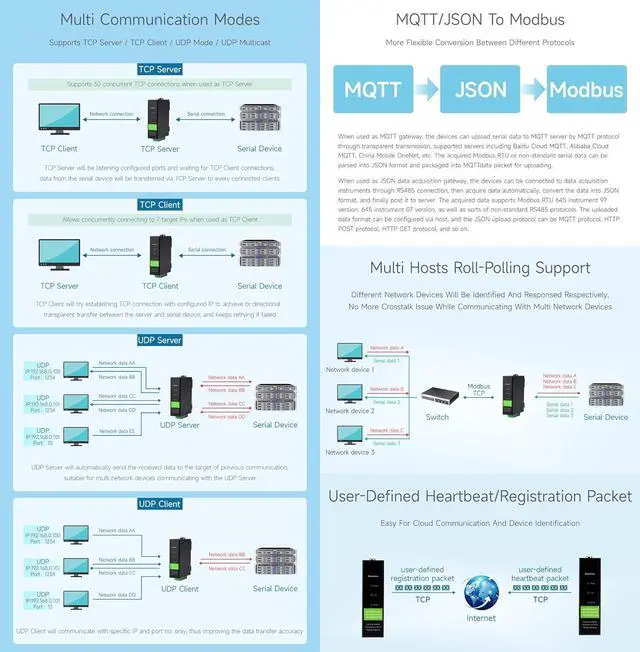

Support multiple communication modes. Support TCP server/TCP client/UDP mode/UDP multicast. MQTT/JSON to Modbus. More flexible conversion of multiple protocols. Support multi hosts roll polling. Different Network devices will be identified and responded respectively, No more Crosstalk issue while communicating with multi Network devices
User-Defined Heartbeat/Registration Packet. Easy for Cloud Communication and Device Identification. Support NTP Protocol. Getting Network Time Info for serial output or data Upload. Suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring

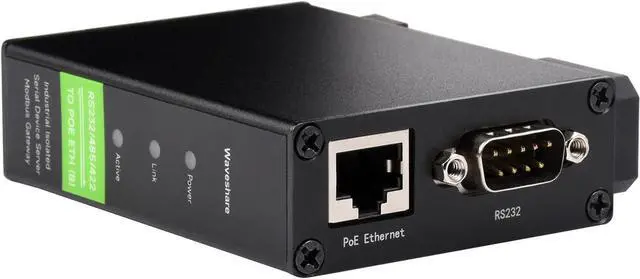

Rail-Mount Serial Server, RS232/485/422 To RJ45 Ethernet Module, TCP/IP To Serial, POE Function Optional

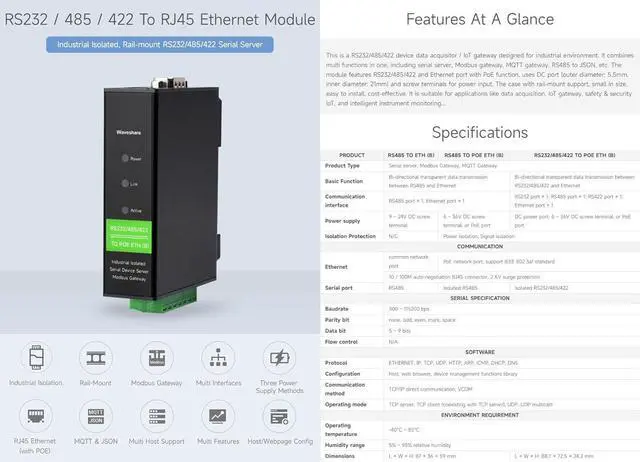

Features At A Glance
This is a RS232/485/422 device data acquisitor / IoT gateway designed for industrial environment. It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS485 to JSON, etc. The module features RS232/485/422 and Ethernet port (PoE function optional), uses
DC port (outer diameter: 5.5 mm, inner
diameter: 21mm) and screw terminals for power input. The case with rail-mount support, small in size, easy to install, cost-effective. It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring...

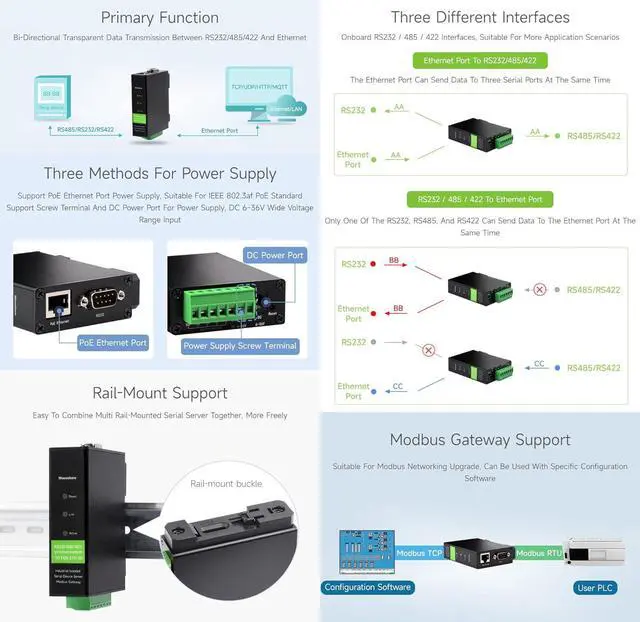

Rail-Mount Support
Easy To Combine Multi Rail-Mounted Serial Server Together, More Freely
NTP Protocol Support
Getting Network Time Info For Serial Output Or Data Upload
Multi Configuration Methods
Supports Web Browser Configuration, Obtaining Dynamic IP Via DHCP, DNS Protocol Connected Domain Server Address
Multiple Protection, Safe And Stable
Onboard power supply and signal isolation, it can provide stable isolation voltage with high reliability and strong anti-interference. Built-in TVS (transient voltage suppression tube) can effectively suppress the surge voltage and transient peak voltage in the circuit, lightningproof & ESD protection. Built-in resettable fuse and protection diode to ensure stable output of current and voltage, prevents over-current and over-voltage proof, improve shock resistance
