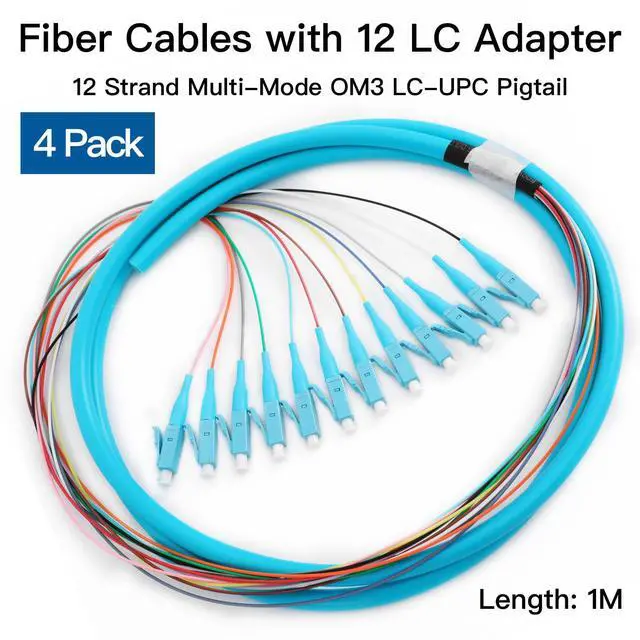

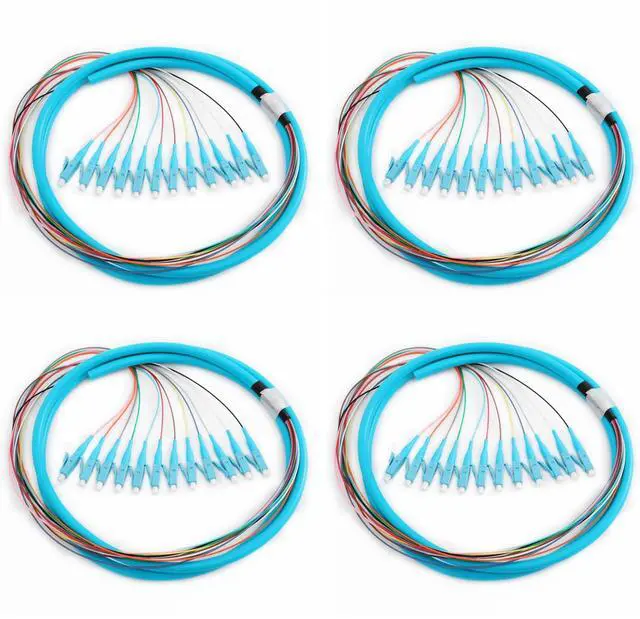

4 Pack LC-OM3 12 Pigtail 12 Strand Multimode OM3/OM4 50/125 LC-UPC Fiber Pigtail, 1.5 Meter 4 Pcs

Zirconia Ceramic Ferrule Adopt high quality ceramic ferrule, with better coaxiality and size precision. high quality porcelain bushing can provide low insertion loss and better durability; The protective outer jacket is removable, for tighter bend radius requirements or high density installations.
Widely Used Perfect for use in Data Centers, premise installations, Optical Fiber LAN, WAN, Telecommunication and Data Processing Networks CATV, instruments, Communication System;

Package Included
4 x 12 Strand Fiber Optic Pigtail

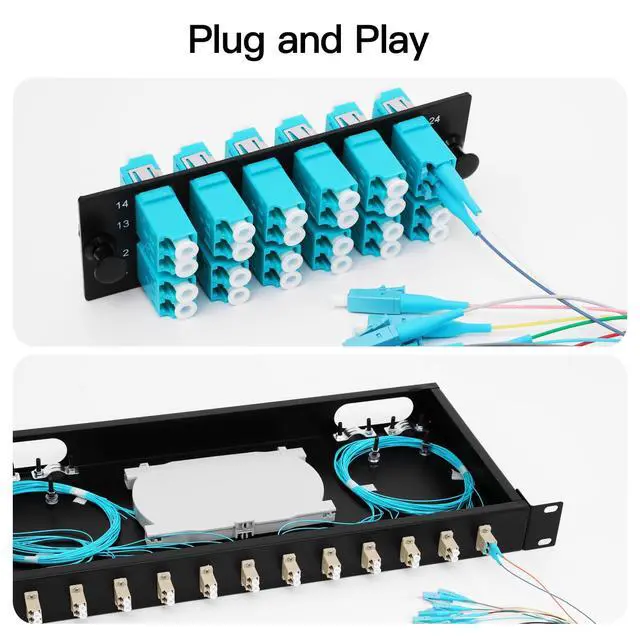

1M OM3 Cable MultiMode with 12 Strand LC-UPC Connectors which connect to the end equipment, like an adapter panel or optical transceiver.
4PACK 1M OM3 Cable MultiMode12 Strand LC/UPC Fiber optic 12 pigtails are great for fusion splicing inside of a fiber optic enclosure. Each strand is terminated on one end and the other end is left blunt so that it can be spliced to your drop cable to eliminate the need of pesky field terminations.
Specification
1.
Excellent Feature: Lower Insertion Loss, High Return Loss, Environmentally Stable & Repeatability; All fiber bushing are made of high quality porcelain so that fiber tail cable and patch cord of any configuration can make optical signal loss very small.
2. Fiber pigtails are machine polished, and the result is a much lower light loss than can be achieved by hand polishing in the field.

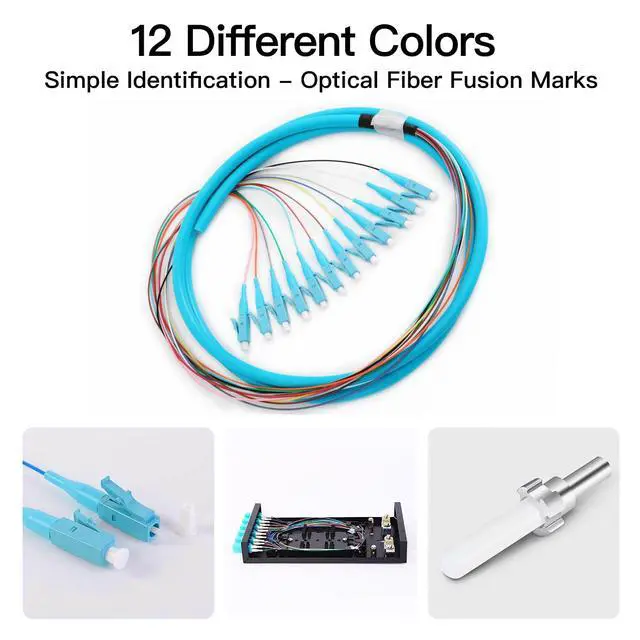

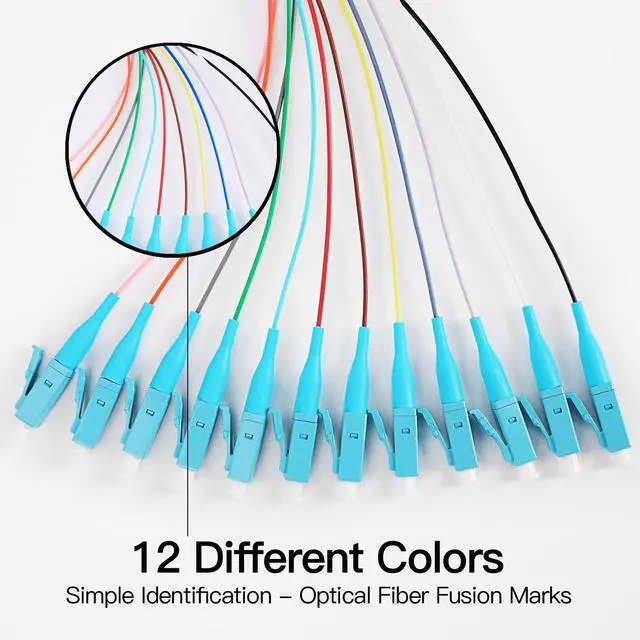

12 Color Mark
1. Splice-ready 900um buffered cables are color-coded according to industry standards for easy identification and the pre-terminated connectors at the opposite end are machine polished for optimal performance.
2. Each cable is fully inspected and contains a test report. Our pigtails are also available with different connectors, polishes, strand counts and styles; like armored and waterproof.
Parameters
1.
Fiber Type: OM3 Cable MultiMode, Connector
(s): LC Connector, Cable
Length: 1M;
Minimum Bending Radius: 3.8 cm.
2.
Ferrule material: ceramic;
Working Wavelength: 1310-1550nm.
3.
Insertion loss: 0.3;
Plug: Ceramic Ferrule;
Echo wear: 50;
Tensile type: 4KG.
4.
Interchangeability: Operating
temperature: -40 ~ +80;
Storage temperature: -40 ~+85;
Number of plugs: 1000.
Application
Telecom and Datacom, Storage Network, CATV & Multimedia Application, Systems Integration for Long Haul, Metro and Access Network, Fiber to the Indoor (FTTX) Test.
