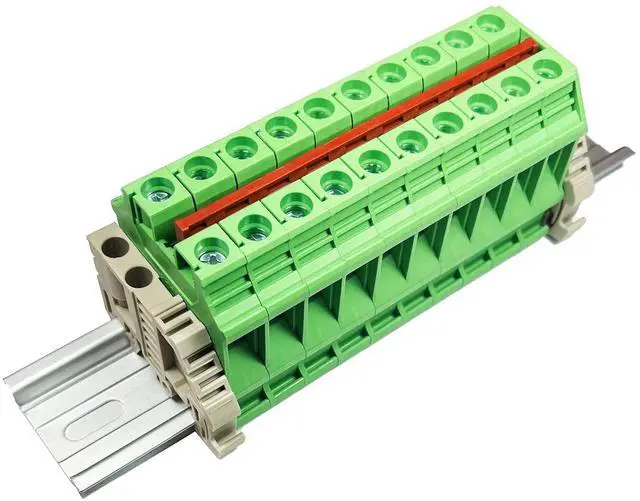

Main image of Dinkle Combiner DK10N-GN 10 Gang with Jumper Inserted DIN Rail Terminal Blocks, 6-20 AWG, 60 Amp, 600 Volt Green Bus Bar Busbar

Shop All WUQ Products | Visit Grandwood Tech Limited Store

Dinkle Combiner DK10N-GN 10 Gang with Jumper Inserted DIN Rail Terminal Blocks, 6-20 AWG, 60 Amp, 600 Volt Green Bus Bar Busbar

Be the first to review this product...

Made in USA
Solar Combiner, Power Distribution, or Busbar
UL 600V Rating

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

UL 6-20 AWG Rating
UL 60A Rating
Terminals made common with jumper
This combiner includes 10 DK10N-GN Dinkle terminal blocks, 2 SS2 end brackets, and 1 DK10NC-GN end cover, 1 DSS10N-10P jumper, all mounted on a 7" piece of aluminum RoHS rail. These are 20 wire connections made in common by the inserted jumper. Technical Data (UL)
Rated Voltage: 600V
Rate Current: 60A Conductor Cross-section, Solid
(AWG): 20-6 Conductor Cross-section, Flexible
(AWG): 20-6
Rated Impulse Withstand Voltage: 8KV
Torque (N-m): 1.3
Screw: M4
Wire Strip Length: 12-14mm
Insulating Material: PA
TxHxW (mm): 10 x 49.3 x 42.9 (Individual
Blocks) DIN Rail (mm): 35, 32
Jumper/Bridge: Press-fit/Insertion. Accepts TM49W marking tags.
