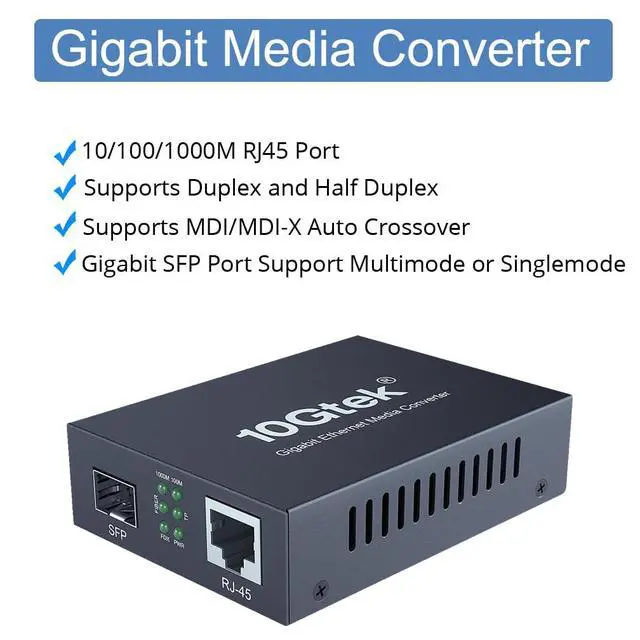

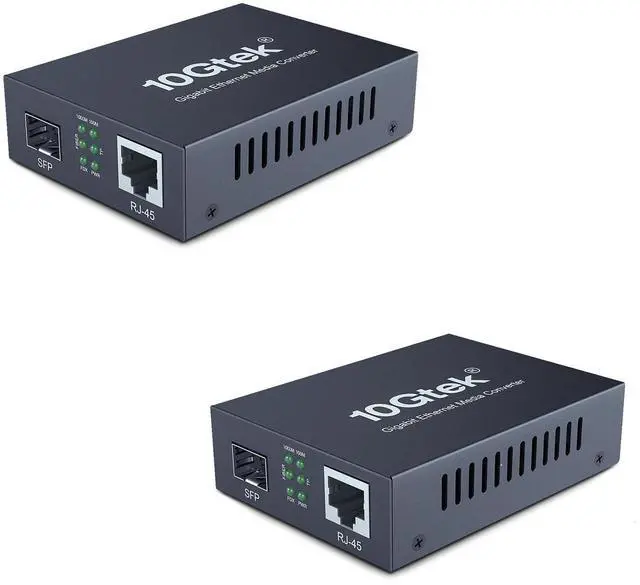

A Pair of Gigabit Multi-Mode LC Fiber Media Converter, with 2 Pcs SFP SX Modules, Fiber to Ethernet Converter, 1000Base-SX to 10/100/1000M RJ45, MMF, 850nm, up to 550m
- What You Get: 2x Gigabit SFP to RJ45 Media Converters, 2x Multi-Mode 1000Base-SX Modules, 2x external power supply, 1x Product Manual; We provide 30 Days Free-returned, 3 Year Free Warranty and Lifetime Technology Support

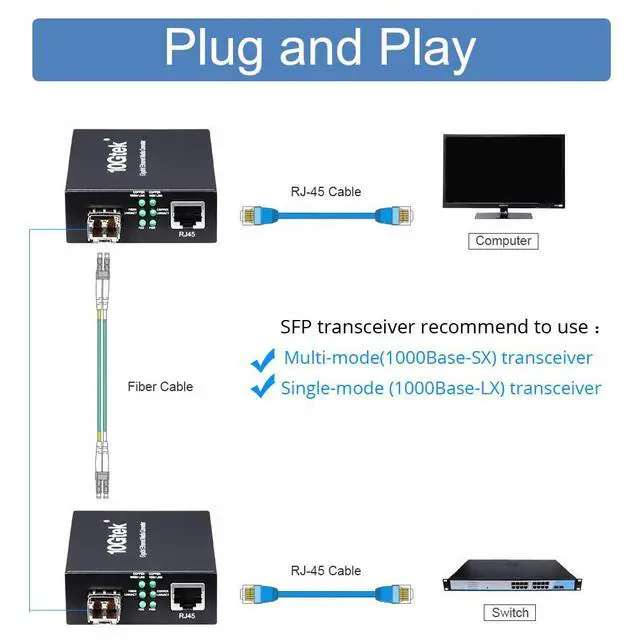

- SFP Fiber Port: 1000Base-SX Multi-Mode Module Plug in SFP Fiber Port of media converter, link Multi-Mode Dual LC Fiber cable (OM1/OM2/OM3/OM4), 850nm wavelength, up to 550m
- RJ45 Ethernet Port: RJ45 Port provides 1000Mbps stable Ethernet connection, downward compatible with 10/100 Mbps; Fiber to Ethernet converter supports Full/ Half Duplex, MDI/MDI-X auto crossover, and 9K-byte jumbo frames
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Visualized LED Indicators: Easy-to-view LED indicators provide status to monitor network activity easily; Media Converter support wide power supply voltage (100V-240V), operating voltage is 5VDC / 1.0A
Easy to Use: Media Converter instantly use without any configuration, plug and play; Complies with IEEE 802.3, IEEE 802.3 u, IEEE 802.3 z, IEEE 802.3 ab, IEEE 802.3 x
HiFiber's A7S2 series Media Converter is use to expanding existing Gigabit Ethernet networks. The easy implementation and expansion of 1000Base-TX/FX networks can be further assured with this converter. The converter is completely transparent when connected so the network performs exactly the way it did before - only now, it allows the co-existence of both copper and fiber mediums.
Main Features: Complies with IEEE 802.3, IEEE 802.3 u, IEEE 802.3 z, IEEE 802.3 ab, IEEE 802.3 x Auto negotiation function allows UTP port to auto select 10M, 100M or 1000M Ethernet port supports MDI/MDI-X auto crossover Extends distances up to 550M/ 20KM/ 40KM/ 60KM/ 80KM/ 100KM/ 120KM (multi mode fiber or single mode fiber) Auto MDI/MDI-X support on RJ-45 port Support Full Duplex and Half Duplex Status LED's for TX, FX LINK/ACT, POWER, FDX to easily monitor network status 1Mbit RAM for data buffer Supports jumbo frame size 9K bytes
Optical Port: 850nm
Multimode Connectors: LC
Connector Ethernet Port:
Connectors: RJ-45
Connector LED Indicators: FX, TX, Link/Act(Left/Right), FDX, PWR
FX: Light on when fiber speed is 1000Mbps, else light off
TX: Light on when TP speed is 1000Mbps, else light off
Link/ACT: Left side is indicate for fiber port link/act and right side for TP, light flashing when data transmitting and receiving
FDX: Light on when TP full-duplex mode is active, light off when TP half-duplex mode is active
PWR: Light on when DC power on, else light off
voltage: 5VDC 1.0A
Power dissipation: 3 watts
Housing: Metal enclosure

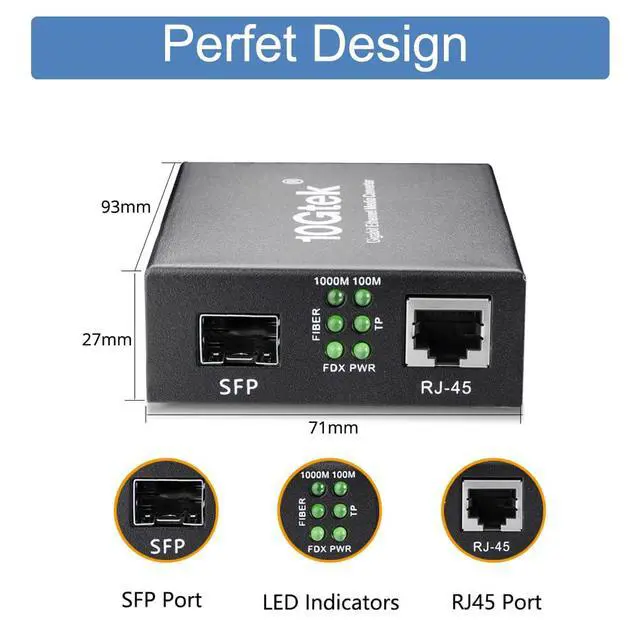

Dimensions: 93 x 71 x 27mm
Weight: 0.5 kg
Operating Temperature: 0°C to 60°C
Storage Temperature: -20°C to 70°C
Warranty: 2 years
Easy to Use: Media Converter instantly use without any configuration, plug and play; Complies with IEEE 802.3, IEEE 802.3 u, IEEE 802.3 z, IEEE 802.3 ab, IEEE 802.3 x
HiFiber's A7S2 series Media Converter is use to expanding existing Gigabit Ethernet networks. The easy implementation and expansion of 1000Base-TX/FX networks can be further assured with this converter. The converter is completely transparent when connected so the network performs exactly the way it did before - only now, it allows the co-existence of both copper and fiber mediums.
Main Features: Complies with IEEE 802.3, IEEE 802.3 u, IEEE 802.3 z, IEEE 802.3 ab, IEEE 802.3 x Auto negotiation function allows UTP port to auto select 10M, 100M or 1000M Ethernet port supports MDI/MDI-X auto crossover Extends distances up to 550M/ 20KM/ 40KM/ 60KM/ 80KM/ 100KM/ 120KM (multi mode fiber or single mode fiber) Auto MDI/MDI-X support on RJ-45 port Support Full Duplex and Half Duplex Status LED's for TX, FX LINK/ACT, POWER, FDX to easily monitor network status 1Mbit RAM for data buffer Supports jumbo frame size 9K bytes
Optical Port: 850nm
Multimode Connectors: LC
Connector Ethernet Port:
Connectors: RJ-45
Connector LED Indicators: FX, TX, Link/Act(Left/Right), FDX, PWR
FX: Light on when fiber speed is 1000Mbps, else light off
TX: Light on when TP speed is 1000Mbps, else light off
Link/ACT: Left side is indicate for fiber port link/act and right side for TP, light flashing when data transmitting and receiving
FDX: Light on when TP full-duplex mode is active, light off when TP half-duplex mode is active
PWR: Light on when DC power on, else light off
Specifications
: Outputvoltage: 5VDC 1.0A
Power dissipation: 3 watts
Housing: Metal enclosure
Dimensions: 93 x 71 x 27mm
Weight: 0.5 kg
Operating Temperature: 0°C to 60°C
Storage Temperature: -20°C to 70°C
Warranty: 2 years
