CA-60 AC/DC Current clamp Transmitter Probe 60A CA-60
- CA-60 AC / DC mA Current Clamp transmitter probe
- Measuring Range : 0~60A Clamp Caliber : 9mm (3/8) Signal Output : 1 mV / 10mA or 1 mV / 100mA DC Accurary : ±1.5% AC Accurary : ±2.0% (40~2K Hz) / ±4.0% (2K~10K Hz) Frequency Response : 20K Hz
- Working Environment : 0~40°C / 30~80%RH without dew Storage Environment : -10~50°C / 35~70%RH without dew Elevation Limitation : Lower than 1,000 meters Power Supply : 1.5v Battery (AAA) x 2 Dimension : 7.7 x 2.8x 1.3 Accessory : Battery Manual
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

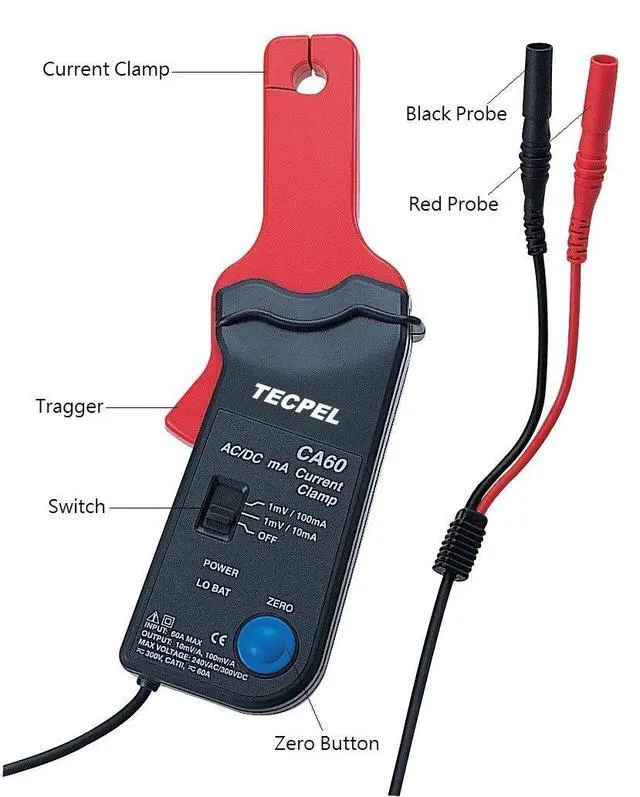

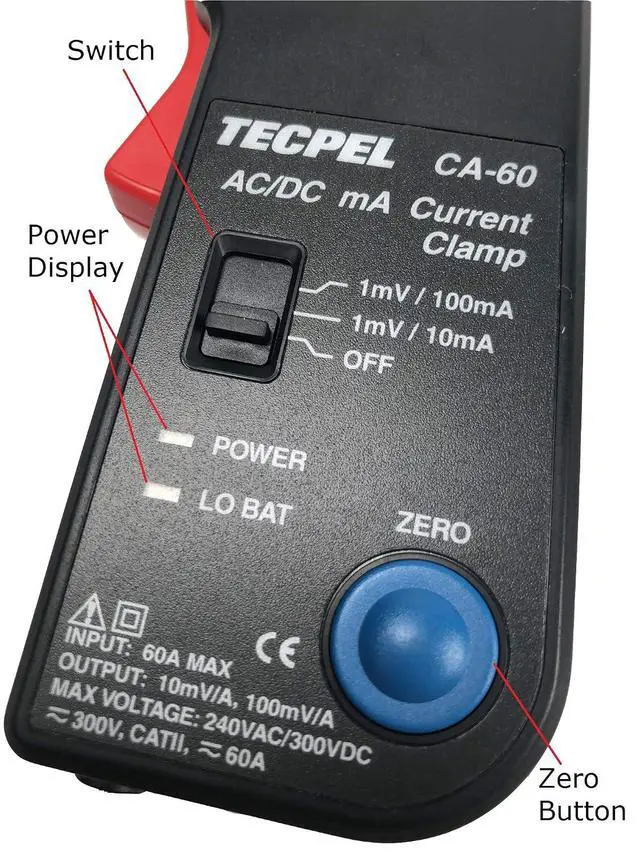

CA-60 DC/AC Clamp Transmitter

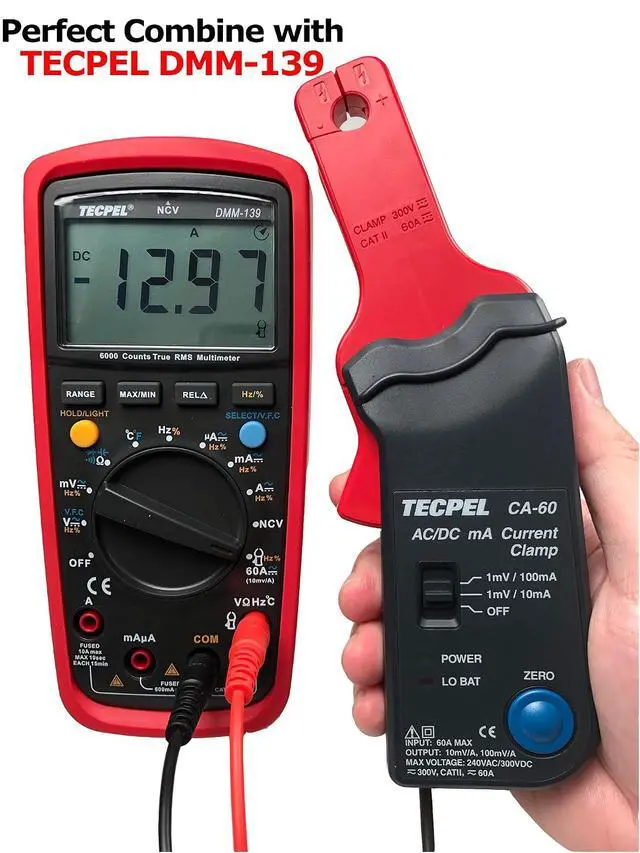

The CA-60 DC/AC current hook is mainly used to convert the measured current into a voltage output mode, so that the equipment in the later stage can obtain the current measurement value. CA-60 can be used with a digital meter or oscilloscope.
Measurement Specification
Measuring Range: 0~60A
Clamp Caliber: 9mm (3/8)
Signal Output: 1 mV / 10mA or 1 mV / 100mA
DC Accurary: ± 1.5 %
AC Accurary: ± 2.0 % (40~2K Hz) / ± 4.0 % (2K~10K Hz)
Frequency Response: 20K Hz
Product Information
Working Environment 0~40°C / 30~80%RH without dew
Storage Environment -10~50°C / 35~70%RH without dew
Elevation Limitation Lower than 1, 000 meters
Power Supply 1.5 v Battery (AAA) x 2
Dimension 7.7 x 2.8 x 1.3
Accessory Battery Manual
The CA-60 DC/AC current hook is mainly used to convert the measured current into a voltage output mode, so that the equipment in the later stage can obtain the current measurement value. CA-60 can be used with a digital meter or oscilloscope.
Measurement Specification
Measuring Range: 0~60A
Clamp Caliber: 9mm (3/8)
Signal Output: 1 mV / 10mA or 1 mV / 100mA
DC Accurary: ± 1.5 %
AC Accurary: ± 2.0 % (40~2K Hz) / ± 4.0 % (2K~10K Hz)
Frequency Response: 20K Hz
Product Information
Working Environment 0~40°C / 30~80%RH without dew
Storage Environment -10~50°C / 35~70%RH without dew
Elevation Limitation Lower than 1, 000 meters
Power Supply 1.5 v Battery (AAA) x 2
Dimension 7.7 x 2.8 x 1.3
Accessory Battery Manual
