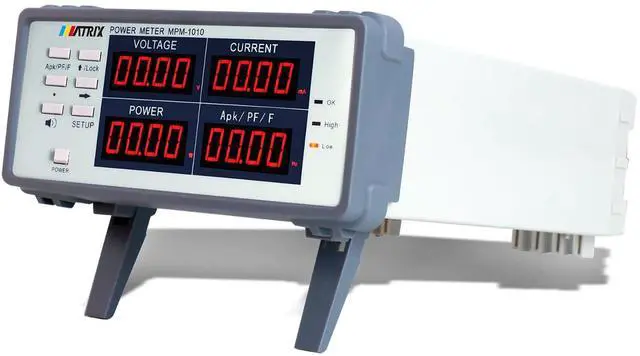

MPM-1010 High Precision Bench Digital AC Power Meter - Voltage Current Power Factor and Frequency Meter with Upper and Lower Limit Set and Sound Light Alarm
- HIGH PRECISION DIGITAL POWER METER SPEC: MPM-1010 power meter can provide input of 1V - 300V, 2mA - 10A, 0.3W - 3000W, and a frequency response of AC 15Hz - 650Hz. Accuracy is 0.4%RD + 0.1%FS + 1d. Power factor -1/+1. Built-in high-speed processor, measuring accuracy is not affected by waveform
- 6 POWER MEASUREMENT PARAMETERS: MPM-1010 digital electrical parameter measuring instrument provides 6 parameters V, A, P, PF/Apk/F. 4 windows simultaneously display RMS voltage, RMS current, power, peak current, power factor, frequency. When measuring below 100V, the voltage is shown in 3 digits, the rest is a 4-digit measurement display
- FEATURES: The digital AC power meter can set the upper and lower limit of power factor, current, and power. And there is a sound light alarm, suitable for production line batch tests
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
UNIQUE DESIGN: MPM-1010 bench power watt meter connect of loads applies direct plug mode instead of traditional terminal posts, saving the trouble of wiring and improving safety and convenience. Precision resistance direct sampling instead of traditional transformer sampling, ensures the original data is undistorted and improves the accuracy of the instrument
WIDLY USES: MPM-1010 digital power meter is specially adapted to some half wave and other various waveform measurements of DC components, testing full wave resistance, the distorted wave, half wave, symmetrical and unsymmetrical square wave, triangle wave, sawtooth wave, and other special waveform under AC mode. Widely used in mobile phone chargers, adapters, switch power, household appliances, transformers, and other industries
MPM-1010 high-precision power meter applies direct plug mode instead of traditional according to customers' suggestion, to improve safety and convenience. The voltage and current sampling section uses precision resistance direct sampling instead of traditional transformer sampling, which ensures the original data is undistorted and improves the accuracy of the instrument. This machine is specially adapted to some half wave and other various waveform measurements of DC components, testing full wave resistance, the distorted wave, half wave, symmetrical and unsymmetrical square wave, triangle wave sawtooth wave, and other special waveform under AC mode. It is a highly cost-effective product with a novel appearance and scientific design. It is widely used in mobile phone charger adapter switches power household appliances, transformer, and other industries.

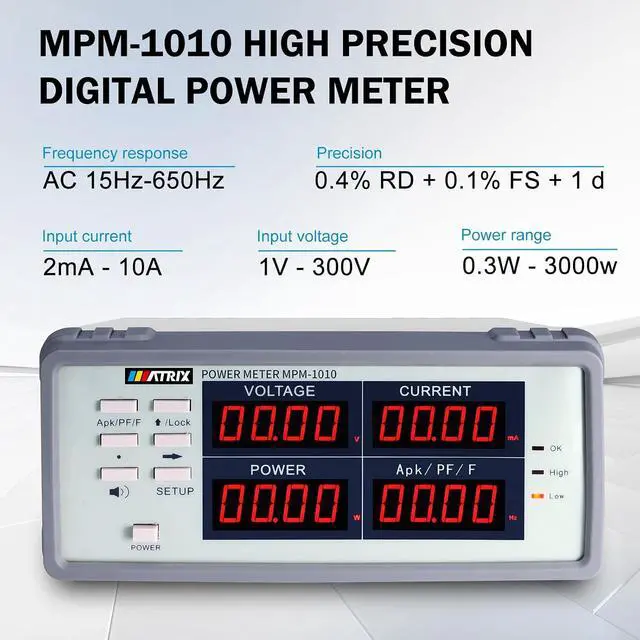

4 Digit Display
Voltage, Current, Power, Apk/PF/F are displayed at the same time for easy data reading and recording
Convenient to use
Button Settings
Power factor, current, power upper and lower limit settings, and sound and light alarm, suitable for production line batch testing

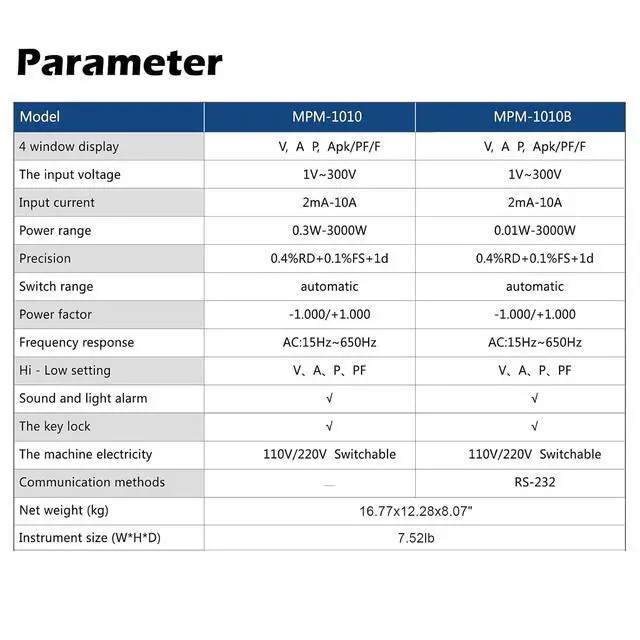

Product Data Reference
Model MPM-1010
4 window display V, A, P, Apk/PF/F
the input voltage 1V-300V
input current 2mA-10A
power range 0.3W -3000W
Precision 0.4 %RD+ 0.1 %FS+1d
Switch range automatic
Power factor -1000/+ 1.000
Frequency response AC: 15Hz~650Hz
Hi-Low setting V. A. PPF VA. PPF
Sound and light alarm
The key lock
The machine electricity 110V/220V Switchable
Net weight (kg) 2.5
WIDLY USES: MPM-1010 digital power meter is specially adapted to some half wave and other various waveform measurements of DC components, testing full wave resistance, the distorted wave, half wave, symmetrical and unsymmetrical square wave, triangle wave, sawtooth wave, and other special waveform under AC mode. Widely used in mobile phone chargers, adapters, switch power, household appliances, transformers, and other industries
MPM-1010 high-precision power meter applies direct plug mode instead of traditional according to customers' suggestion, to improve safety and convenience. The voltage and current sampling section uses precision resistance direct sampling instead of traditional transformer sampling, which ensures the original data is undistorted and improves the accuracy of the instrument. This machine is specially adapted to some half wave and other various waveform measurements of DC components, testing full wave resistance, the distorted wave, half wave, symmetrical and unsymmetrical square wave, triangle wave sawtooth wave, and other special waveform under AC mode. It is a highly cost-effective product with a novel appearance and scientific design. It is widely used in mobile phone charger adapter switches power household appliances, transformer, and other industries.
4 Digit Display
Voltage, Current, Power, Apk/PF/F are displayed at the same time for easy data reading and recording
Convenient to use
Button Settings
Power factor, current, power upper and lower limit settings, and sound and light alarm, suitable for production line batch testing
Product Data Reference
Model MPM-1010
4 window display V, A, P, Apk/PF/F
the input voltage 1V-300V
input current 2mA-10A
power range 0.3W -3000W
Precision 0.4 %RD+ 0.1 %FS+1d
Switch range automatic
Power factor -1000/+ 1.000
Frequency response AC: 15Hz~650Hz
Hi-Low setting V. A. PPF VA. PPF
Sound and light alarm
The key lock
The machine electricity 110V/220V Switchable
Net weight (kg) 2.5
