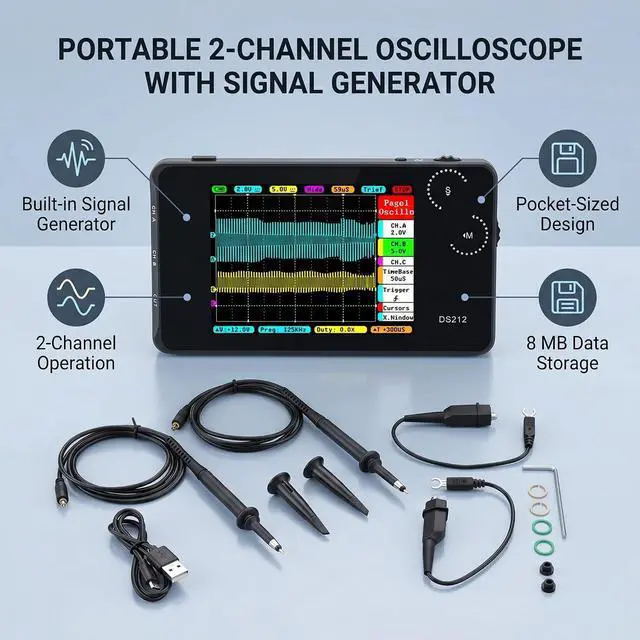

DS212 Mini Oscilloscope Portable Digital Storage Oscilloscope Pocket Size 2 Channel Oscilloscope with USB Interface for Electronic Engineering Repair

Synchronous mode: Auto, Normal, Single, None, Scan.
Auto measurement: frequency, cycle time, duty cycle, RMS voltage/Vpp /Vmaximum/Vmin/Vavg.
Pocket size digital storage oscilloscope meets basic electronic engineering requirements. 320x240 Colorful display, mini and compact.

Function Parameter:
Mode: With Auto, Normal, Single, None, Scan sync mode
Trigger mode: with rising/falling edge trigger mode
Configurable mode: Adaptive horizontal, vertical range, trigger threshold mode can be set
Measurement signal: measurable signal frequency/period/duty cycle, voltage peak-to-peak/RMS/maximum/minimum/average
Signal source: built-in 10Hz~1MHz square wave (adjustable duty ratio) or 10Hz~20KHz analog sine wave/triangle wave/sawtooth wave test signal source
DS212 Performance Parameters:
Sampling rate: 10Msa/s (MAX)
Analog channel signal bandwidth: 1MHz
Sample memory depth: 8K (MAX)
Standard input impedance of analog channel: 1M
Analog channel input voltage: ±40V (MAX, X1 probe)
Analog channel input coupling method: AC/DC
Analog channel input sensitivity range: 20mv/Div~10V/Div (1-2-5 steps)
Horizontal scan time base range: 1uS/Div~2S/Div (1-2-5 step)
Product Parameters:
Storage capacity: Built-in U disk storage capacity of 8MB, which can store waveform data and waveform images
Battery: Built-in 500mAh lithium battery, charged with Micro USB port
Display: Color TFT LCD display (resolution 320×240)
Overall size: 100mm× 56.5 mm× 10.7 mm
Host weight: 88g
Packing size: 198*112*45mm
Packing weight: 385g
