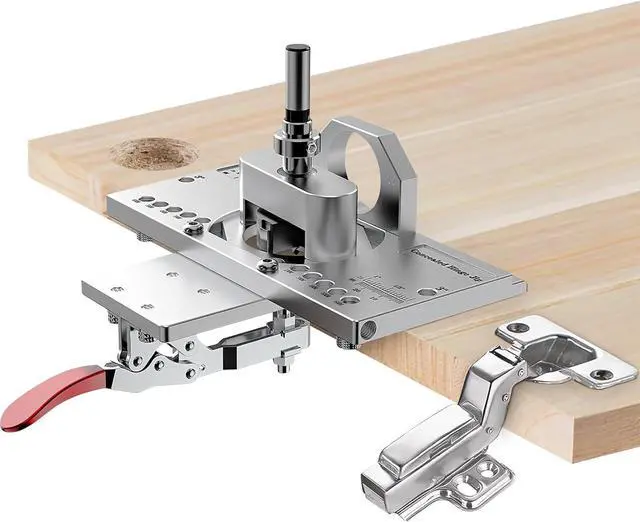

35mm Concealed Cabinet Hinge Jig, Hinge Hole Drilling Guide with Quick Clamp & Dust Port Adapter, Precision Metal Woodworking Template for Accurate Door Hinge Installation
- Durable and Accurate - This all-metal cabinet hinge jig includes a sharp 5/64" drill bit, providing a solid and complete hinge mounting solution. Equipped with a quick clamp, it allows drilling depths of up to 0.6 inches, making it ideal for installing cabinet door hinges.

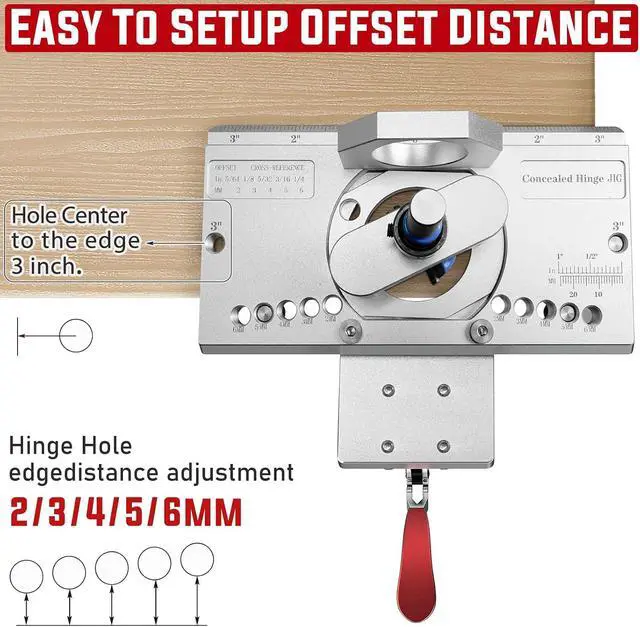

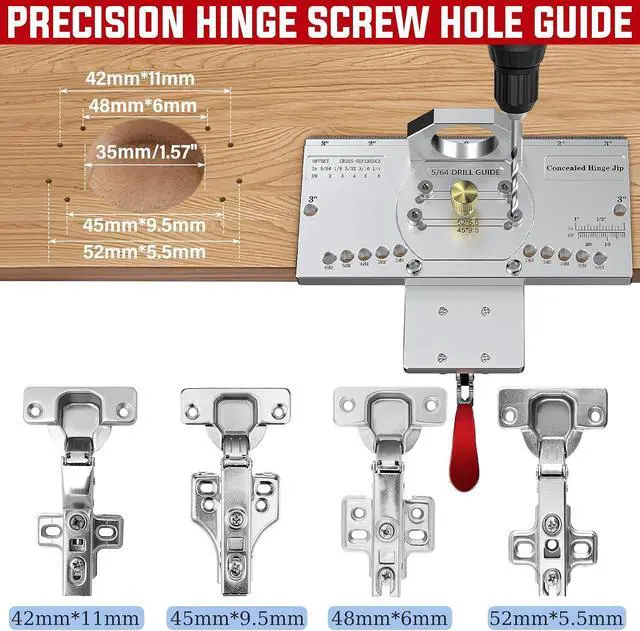

- Precision Hinge Alignment System- The 35mm cabinet hinge jig offers 5 offset adjustments (2mm, 3mm, 4mm, 5mm, and 6mm) and 4 screw drilling hole spacing options (42×11mm, 48×6mm, 52×5.5mm, 45×9.5mm) for perfect concealed door hinge installation. Features quick-set thumbscrew fence for foolproof setup every time.
- Dust-Free Drilling System- This concealed hinge jig features a 1-3/8" vacuum adapter that connects easily to most shop vacuums, allowing for completely clean installations with no sawdust. Using cabinet hardware jig improves both efficiency and precision while keeping your workspace perfectly clean.
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

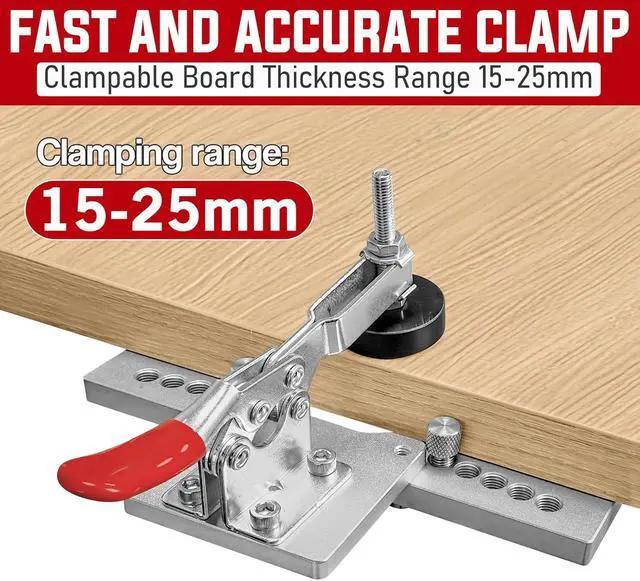

All-Metal Precision Jig - Heavy-duty aluminum alloy construction outperforms plastic jigs for durable, accurate hinge drilling. Features dual-bearing smooth operation and a sharp 35mm carbide bit for fast, press-quality holes in cabinet doors.
Quick-Clamp Hinge Jig - Secures instantly to workpieces for fast, precise hinge drilling. Perfect for kitchen cabinets, wardrobes, TV units, bookcases, and fine furniture installation.
35mm Concealed Cabinet Hinges Jig
The material of our cabinet hinges is high quality solid aluminum-alloy mental, durable and perfect for kitchen cabinet doors, wardrobes, and TV cabinets, bookcases, wine cabinets, and other luxury door connections.

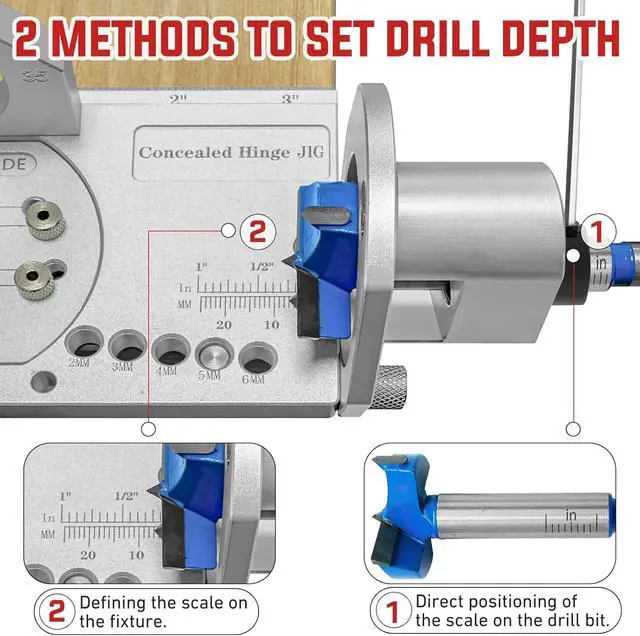

Easy Determination Of Drilling Depth
You can set the drilling depth using the gauge on the fixture or on the Forstner bit. Simply attach the drill guide to the fixture and adjust to the desired depth. The recess hole insert includes a centered drill bushing and a built-in stop to prevent drilling too deep.
Update Design
Rubber Anti- Slip Mats
This clamp has non-slip pads and is made of rubber. Designed for quick and easy clamping under the table for true stability and non-slip grip.

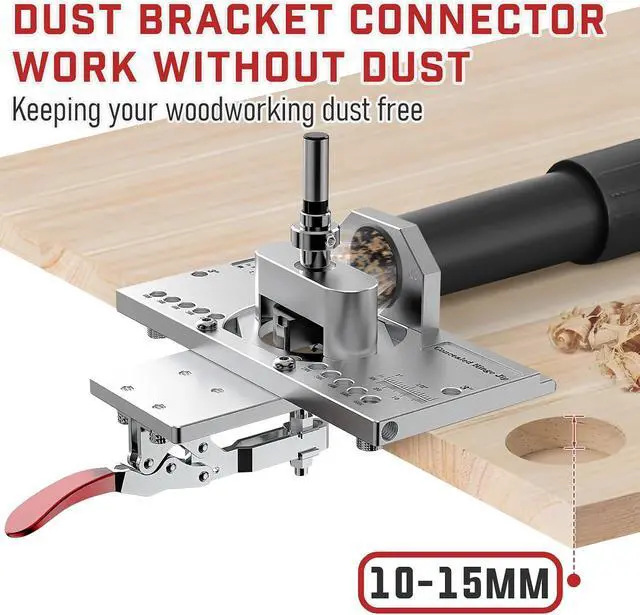

35mm Dust Bracket Connector
Equipped with a Ø 35mm shop vac dust port for attaching a dust collector. It collects shavings when drilling cabinet hinges.
Usage Guidelines
Confirm Hinge Depth
Place the hinge onto the fixture to verify the hinge depth.
Fixed Drill Bit Depth
Adjust the drill bit to the same depth, then secure the bearing.

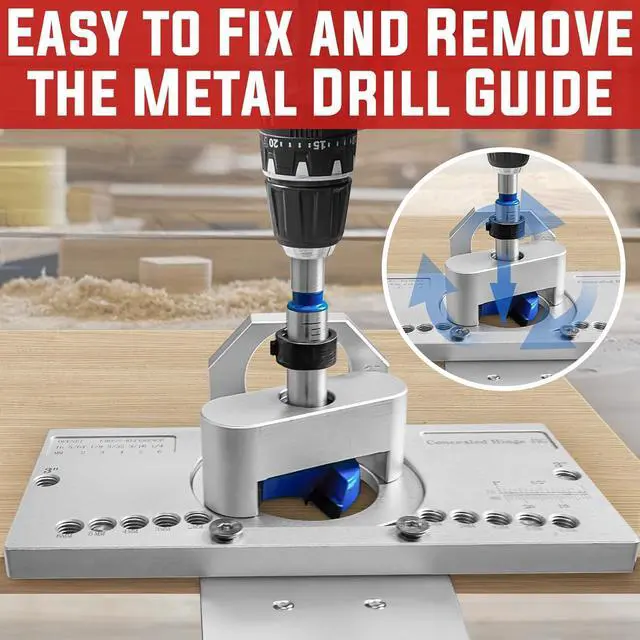

Lock Drill Guide
Fit kit in your drill attached and attach it to the base plate, rotating it 1/4 turn to lock it in place to prevent it from lifting up when cutting.
5/64 Driil Guide
Use thealignment template to mark screw holesand drill 2mm pilot holes.
Perfect Hinge Holes
Drill perfect hinge holes using concealed hinge jig.
Use Cabinet Door Jig to Assist With Installation
Use our cabinet door installation jig to assist in multiple cabinet doors.
Wide Application
Quick-Clamp Hinge Jig - Secures instantly to workpieces for fast, precise hinge drilling. Perfect for kitchen cabinets, wardrobes, TV units, bookcases, and fine furniture installation.
35mm Concealed Cabinet Hinges Jig
The material of our cabinet hinges is high quality solid aluminum-alloy mental, durable and perfect for kitchen cabinet doors, wardrobes, and TV cabinets, bookcases, wine cabinets, and other luxury door connections.
Easy Determination Of Drilling Depth
You can set the drilling depth using the gauge on the fixture or on the Forstner bit. Simply attach the drill guide to the fixture and adjust to the desired depth. The recess hole insert includes a centered drill bushing and a built-in stop to prevent drilling too deep.
Update Design
Rubber Anti- Slip Mats
This clamp has non-slip pads and is made of rubber. Designed for quick and easy clamping under the table for true stability and non-slip grip.
35mm Dust Bracket Connector
Equipped with a Ø 35mm shop vac dust port for attaching a dust collector. It collects shavings when drilling cabinet hinges.
Usage Guidelines
Confirm Hinge Depth
Place the hinge onto the fixture to verify the hinge depth.
Fixed Drill Bit Depth
Adjust the drill bit to the same depth, then secure the bearing.
Lock Drill Guide
Fit kit in your drill attached and attach it to the base plate, rotating it 1/4 turn to lock it in place to prevent it from lifting up when cutting.
5/64 Driil Guide
Use thealignment template to mark screw holesand drill 2mm pilot holes.
Perfect Hinge Holes
Drill perfect hinge holes using concealed hinge jig.
Use Cabinet Door Jig to Assist With Installation
Use our cabinet door installation jig to assist in multiple cabinet doors.
Wide Application
