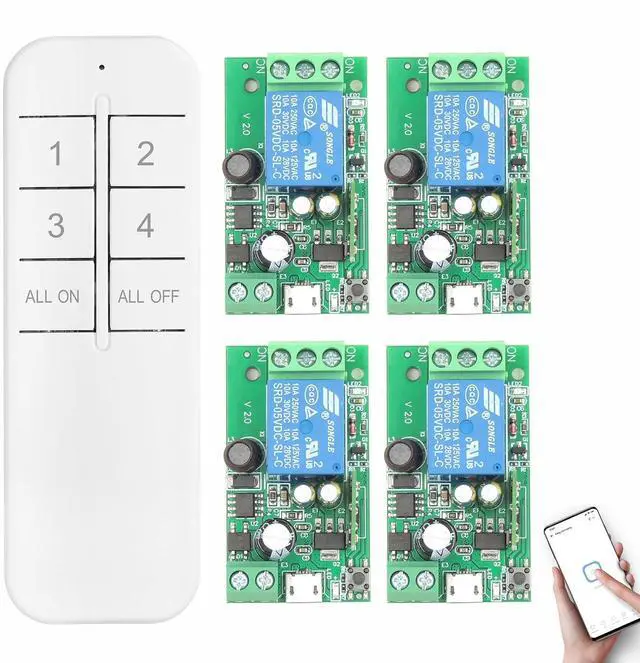

4x1 Channel WiFi Smart Switch with 1x Bluetooth Transmitter, DC 5V 12V 24V Passive Output Relay Module Ewelink APP WiFi Control Compatible with Alexa/Google Home, Inching/Self-Locking Switch
- Excellence designWireless WIFI smart switch relay module. Stable and reliable performance with high reception sensitivity(2.4GHz WIFI). You can remotely operate every machine connect with the relay receiver through the Internet from wherever on the earth.
- APP controlThis smart switch is compatible with "eWelink" APP, which are popular and widely used on the market. Connected this smart switch directly to your Wi-Fi network to achieve unlimited wireless control via your phone (Android and iOS). And also the smart switch is compatible with Alexa ( Echo / Dot / Spot), Google Home. It is able to achieve several kinds of intelligent controls.
- Easy to UseThere are 2 operating mode(inching/toggle mode) can be setup. It can work as a pulse switch(a button) or a switch(a toggle switch). You can easily program by yourself depends on your needs. The operating mode of the smart switch is adjustable.
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

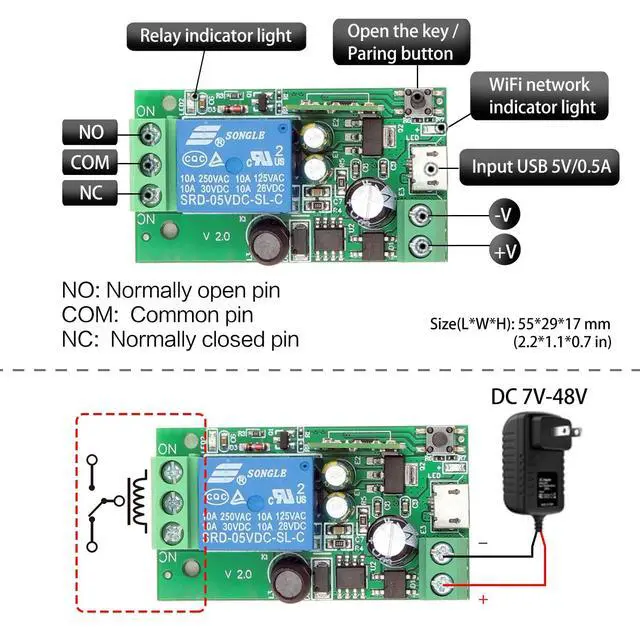

More FlexibilityThis receiver adopts 10A high-quality relay that can be used over 400, 000 times. Let this product is more long-lasting and stable to use. There are 3 terminals(normally open pin, common pin, normally closed pin) for the relay. This is a potential-free contacts relay. Passive output. Dry contacts. The relay is cean. The receiver is suitable for DC 5V or DC 7V~48V voltage, so DC 5V/ 12V/ 24V/ 36V/ 48V voltage can working well.
Wide ApplicationProducts can be used in homes, farms, factories, offices, laboratories, supermarkets and so on. You can remotely operate every device connect with the WIFI smart switch through your phone. such as, garage door opener system, electric lock, Electromagnetic door, lamp, lighting, contactor, signal transmission and DIY remote control switch.
Easy to installThe size of smart switch is 55*29*17 mm ( 2.2 * 1.1 * 0.7 in). It can be easily hidden in most electrical boxes or junction boxes. You can easily install it.
Package Include:
4x WIFI Controller Module
1x Bluetooth transmitter
1x Product manual
Controller Module Parameter:
-Working Voltage: DC 5V or DC 7V~48V
- Relay max current: 10A
-Output type: passive output/ clean relay
-Channel: 1 channel
- WiFi: IEEE 802.11 b/g/n 2.4GH z
- Support Remote Control: RM 2.4G Bluetooth remote control
-Size: 55*29*17 mm ( 2.2 * 1.1 * 0.7 in)
- Working temperature: -30~+80
APP pairing:
1. Your phone has been connected to 2.4GH z Wi-Fi. And turn on the Bluetooth.
2. Long press pairing button for more than 5 seconds until blue LED indicator blinks twice quickly and keeps on once to enter pairing state.
3. Open eWelink APP, tap+ at the bottom of the screen, select Bluetooth Pairing, click Next, it will automatically scan device. And then operate according to the prompts on the APP interface.
Wide ApplicationProducts can be used in homes, farms, factories, offices, laboratories, supermarkets and so on. You can remotely operate every device connect with the WIFI smart switch through your phone. such as, garage door opener system, electric lock, Electromagnetic door, lamp, lighting, contactor, signal transmission and DIY remote control switch.
Easy to installThe size of smart switch is 55*29*17 mm ( 2.2 * 1.1 * 0.7 in). It can be easily hidden in most electrical boxes or junction boxes. You can easily install it.
Package Include:
4x WIFI Controller Module
1x Bluetooth transmitter
1x Product manual
Controller Module Parameter:
-Working Voltage: DC 5V or DC 7V~48V
- Relay max current: 10A
-Output type: passive output/ clean relay
-Channel: 1 channel
- WiFi: IEEE 802.11 b/g/n 2.4GH z
- Support Remote Control: RM 2.4G Bluetooth remote control
-Size: 55*29*17 mm ( 2.2 * 1.1 * 0.7 in)
- Working temperature: -30~+80
APP pairing:
1. Your phone has been connected to 2.4GH z Wi-Fi. And turn on the Bluetooth.
2. Long press pairing button for more than 5 seconds until blue LED indicator blinks twice quickly and keeps on once to enter pairing state.
3. Open eWelink APP, tap+ at the bottom of the screen, select Bluetooth Pairing, click Next, it will automatically scan device. And then operate according to the prompts on the APP interface.
