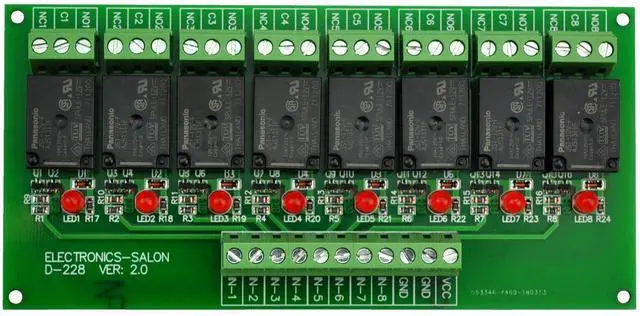

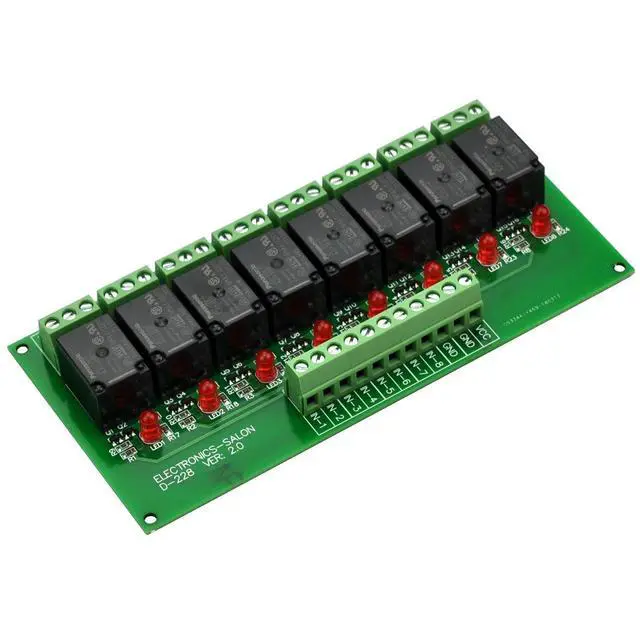

8 Channel 10Amp SPDT Power Relay Module Board (Operating Voltage: DC 12V)
- 8 Channel 10Amp SPDT Power Relay Module Board, Operationg Voltage DC 12V.
- This item has been assembled, and electrical test passed.
- JS1-12V-F series Power Relays. LED indicator for each relay channel. Darlington transistors circuit driving relay, Improve the reliability of action.
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
FR-4 Fiber glass dual layers PCB.

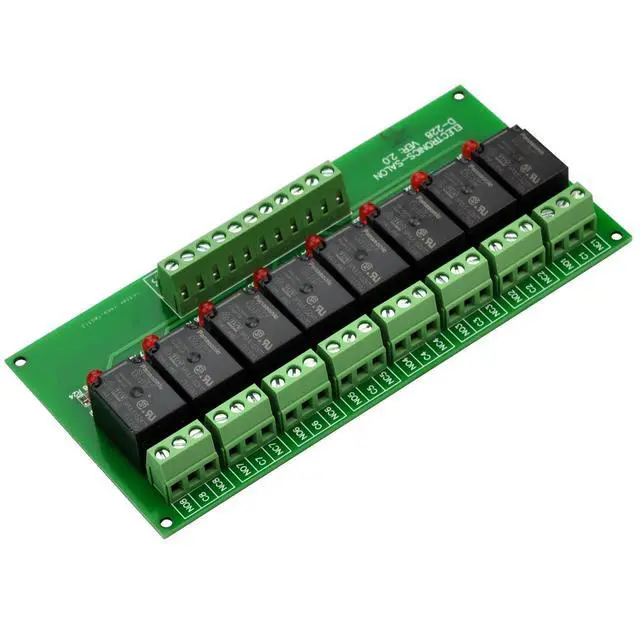

8 Channel 10Amp SPDT Power Relay Module Board.
This item has been assembled, and electrical test passed.

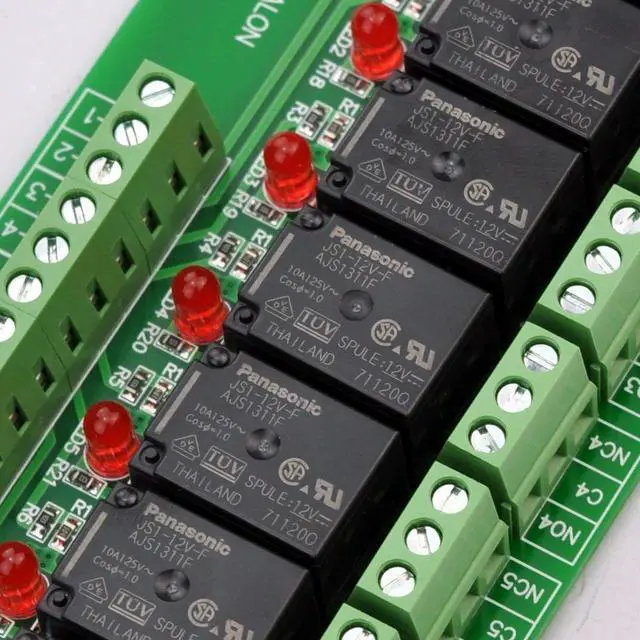

JS1-12V-F Power Relays.
LED indicator for each relay channel.
Darlington transistors circuit driving relay, improve the reliability of action.
FR-4 Fiber glass PCB (Double Layer).
Operating Voltage/Current(max. ): DC12V / 400mA (relay all action).
Input control signal voltage:
0V - 0.5V Low state (relay not-action),
2.5V - 20V High state (relay action).
Input control signal high state current:
2.5V: 0.1 mA.
5V: 0.35 mA.
12V: 1.1 mA.
24V: 2.4 mA.
Relay Spec:
Part Number: JS1-12V-F Power Relays.
Contact Rating: 125VAC/250VAC 10Amp or 30VDC 5Amp.

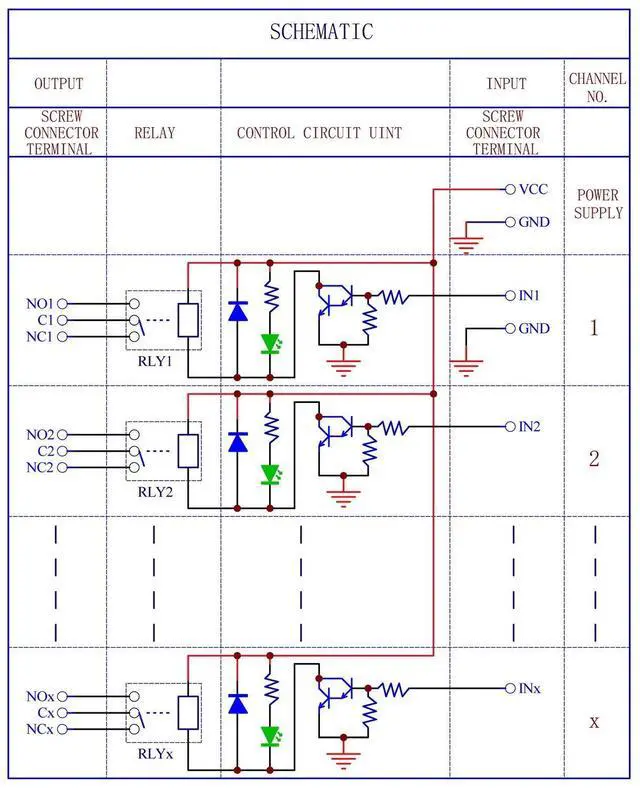

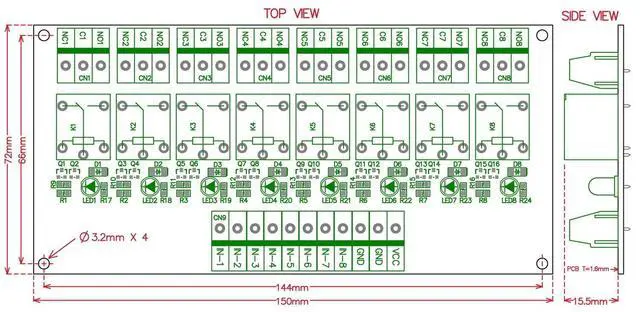

Wire connection and PCB size:
VCC: Power supply input.
GND: Power supply ground and control signal ground.
CH-x: Control signal input, Low: relay OFF, High: relay ON.

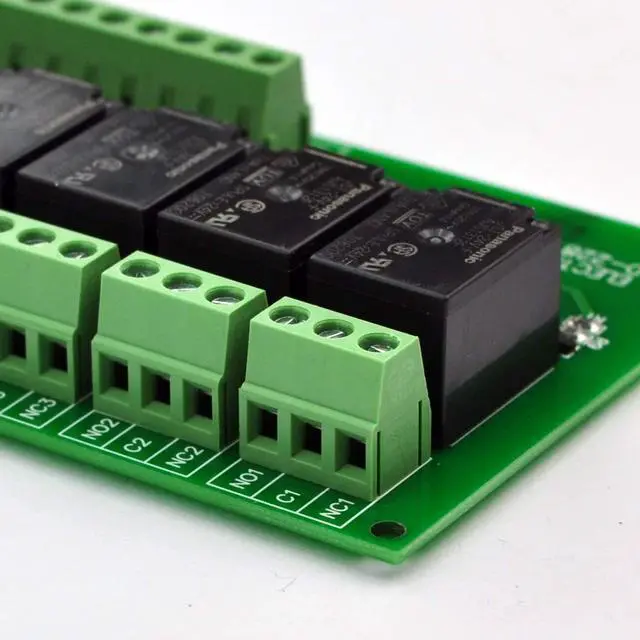

COM / NO / NC: (Cx=COMx).
Control signal state low, the relay OFF, COM - NO disconnected, COM - NC connected.
Control signal stage high, the relay ON, COM - NO connected, COM - NC disconnected.
8 Channel 10Amp SPDT Power Relay Module Board.
This item has been assembled, and electrical test passed.
JS1-12V-F Power Relays.
LED indicator for each relay channel.
Darlington transistors circuit driving relay, improve the reliability of action.
FR-4 Fiber glass PCB (Double Layer).
Operating Voltage/Current(max. ): DC12V / 400mA (relay all action).
Input control signal voltage:
0V - 0.5V Low state (relay not-action),
2.5V - 20V High state (relay action).
Input control signal high state current:
2.5V: 0.1 mA.
5V: 0.35 mA.
12V: 1.1 mA.
24V: 2.4 mA.
Relay Spec:
Part Number: JS1-12V-F Power Relays.
Contact Rating: 125VAC/250VAC 10Amp or 30VDC 5Amp.
Wire connection and PCB size:
VCC: Power supply input.
GND: Power supply ground and control signal ground.
CH-x: Control signal input, Low: relay OFF, High: relay ON.
COM / NO / NC: (Cx=COMx).
Control signal state low, the relay OFF, COM - NO disconnected, COM - NC connected.
Control signal stage high, the relay ON, COM - NO connected, COM - NC disconnected.
