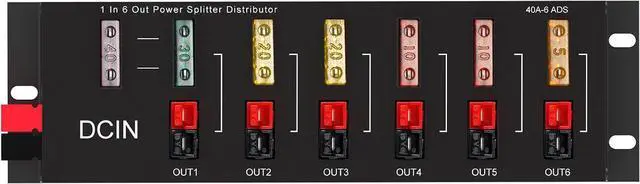

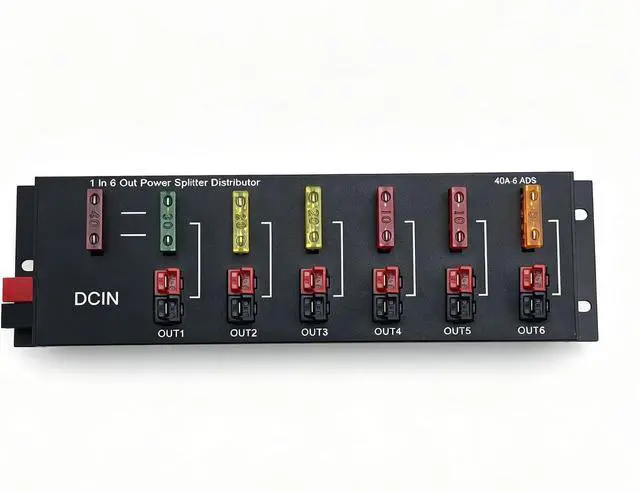

1 in 6Connector Power Divider Power Board 40A Power Pole Distribution Block
- [Product Parameters]:Anderson Powerpole distribution block handles DC power from 0-32V and takes a max input of 40A (protected by a 40A fuse). It has 6 output ports with individual fuses: one 30A, two 20A, two 10A, and one 5A. At 13.8V, it draws less than 8mA when idle with no load connected
- [High Quality Material]:The fused distribution block features an aluminum alloy shell with a black oxidation finish. Compared to standard iron shells with painted coatings, this provides a smoother, more refined feel and offers significantly better resistance to surface wear and scratches
- [Good Safety]:Designed for safety and longevity, this power distribution module includes a high-quality fuse holder that reliably protects your equipment from overload or short circuit risks. The fuse is replaceable, which helps lower long-term operating costs, simplifies maintenance, and extends the product's service life.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
[Easy to

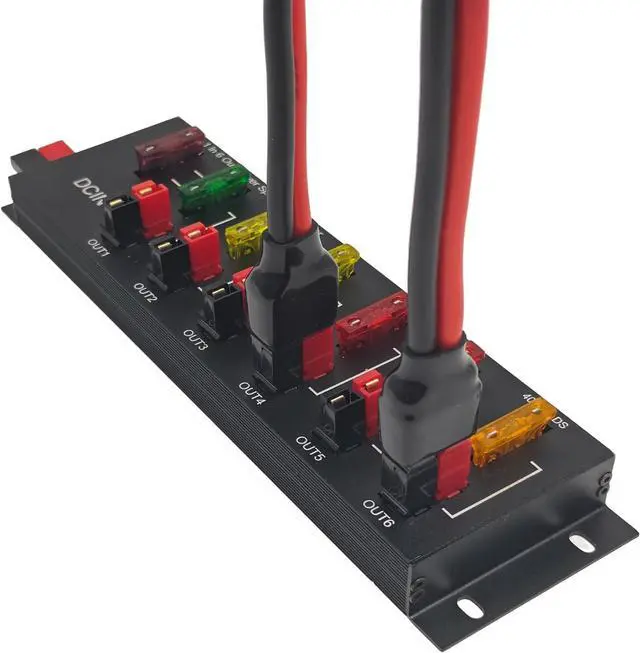

Use]: DC power pole module is built for easy setup, featuring mounting screw holes for a secure installation and a sturdy support base for flexible portable placement. dimensions measure 7.28" L x 2.05" W x 1.18" H
[Package Includes]: 1 DC input distribution module, 7 black and 7 red Anderson Powerpole housings, 2 total silver-plated copper 30A contacts (for 14-12AWG wire), and 2 tinned copper 40A contacts (for 12-10AWG wire)

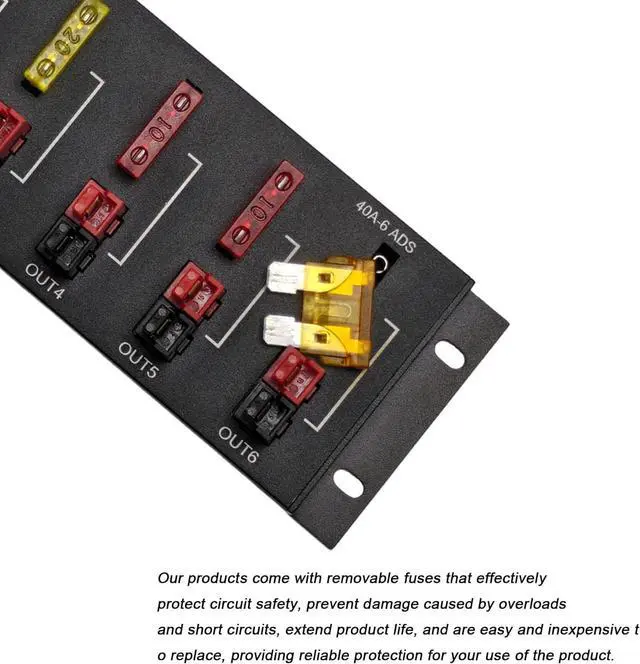

[Tips]: power distribution board features a sturdy fuse holder designed to prevent accidental loosening or detachment. When replacing the fuse, we recommend using a specialized tool, like needle-nose pliers, to grip the fuse end and pull it out vertically
Product
Operating Voltage: DC 0-32V
Maximum Current: 40A
Fuse: 40A
High-Quality Housing: Aluminum Housing
Output ports: 6 output ports
Fuses: 5A × 1, 10A × 2, 20A × 2, 30A × 1
Weight: Gross
weight: 211 g.
Net weight: 170 g

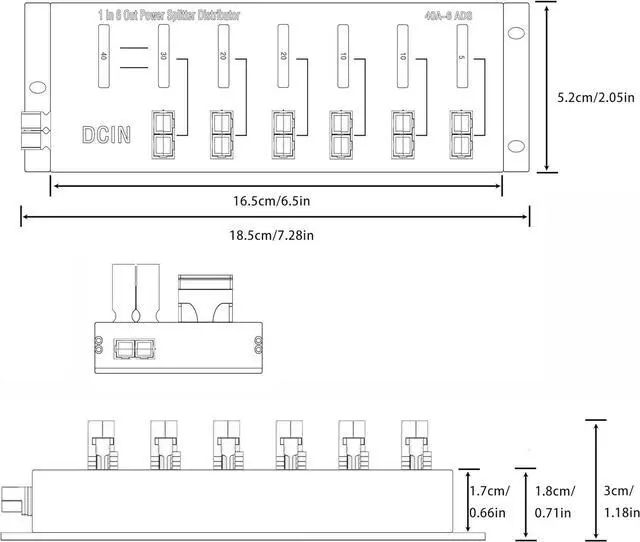

Dimensions: Length 7.28 inches, width 2.05 inches, height 1.18 inches
Product packaging: 1 distribution module
Use]: DC power pole module is built for easy setup, featuring mounting screw holes for a secure installation and a sturdy support base for flexible portable placement. dimensions measure 7.28" L x 2.05" W x 1.18" H
[Package Includes]: 1 DC input distribution module, 7 black and 7 red Anderson Powerpole housings, 2 total silver-plated copper 30A contacts (for 14-12AWG wire), and 2 tinned copper 40A contacts (for 12-10AWG wire)
[Tips]: power distribution board features a sturdy fuse holder designed to prevent accidental loosening or detachment. When replacing the fuse, we recommend using a specialized tool, like needle-nose pliers, to grip the fuse end and pull it out vertically
Product
Specifications
:Operating Voltage: DC 0-32V
Maximum Current: 40A
Fuse: 40A
High-Quality Housing: Aluminum Housing
Output ports: 6 output ports
Fuses: 5A × 1, 10A × 2, 20A × 2, 30A × 1
Weight: Gross
weight: 211 g.
Net weight: 170 g
Dimensions: Length 7.28 inches, width 2.05 inches, height 1.18 inches
Product packaging: 1 distribution module
