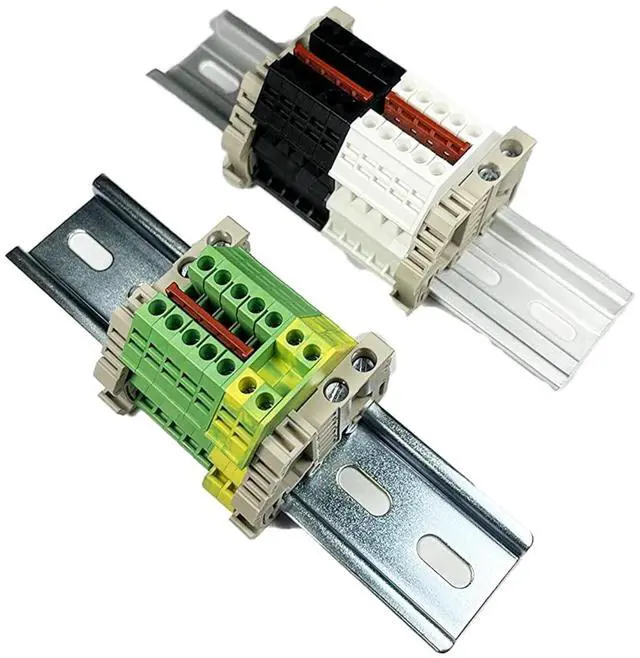

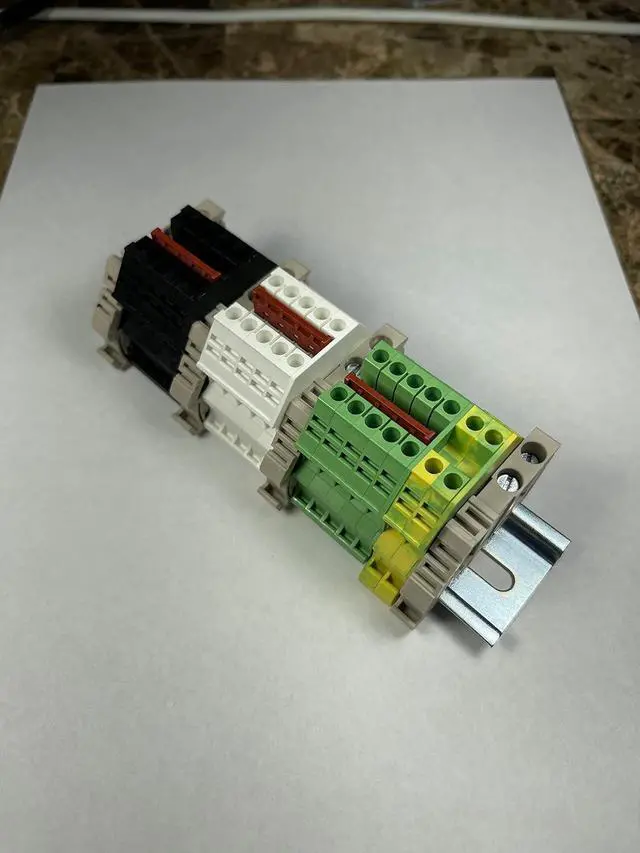

Dinkle UL Listed AC DIN Rail Terminal Block Kit #1 White/Black/Green Dinkle 20 DK2.5N 12 AWG Gauge 20A 600V Ground DK2.5N-PE Jumper DSS2.5N-05P End Covers End Brackets
- Fully Customizable Kit
- UL Listed 600V
- UL Listed 12-22 AWG
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
UL Listed 20A
Ground Blocks, End Covers, Jumpers, and Rails Included
Technical Data (UL) Rated Voltage: 600V
Rate Current: 20A Conductor Cross-section, Solid
(AWG): 22-12 Conductor Cross-section, Flexible
(AWG): 22-12
Rated Impulse Withstand Voltage: 6KV
Torque (N-m): 0.4
Screw: M 2.5
Wire Strip Length: 9-11mm
Insulating Material: PA
TxHxW (mm): 5.1 x 39.6 x 40.5 (Individual
Blocks) DIN Rail (mm): 35, 32

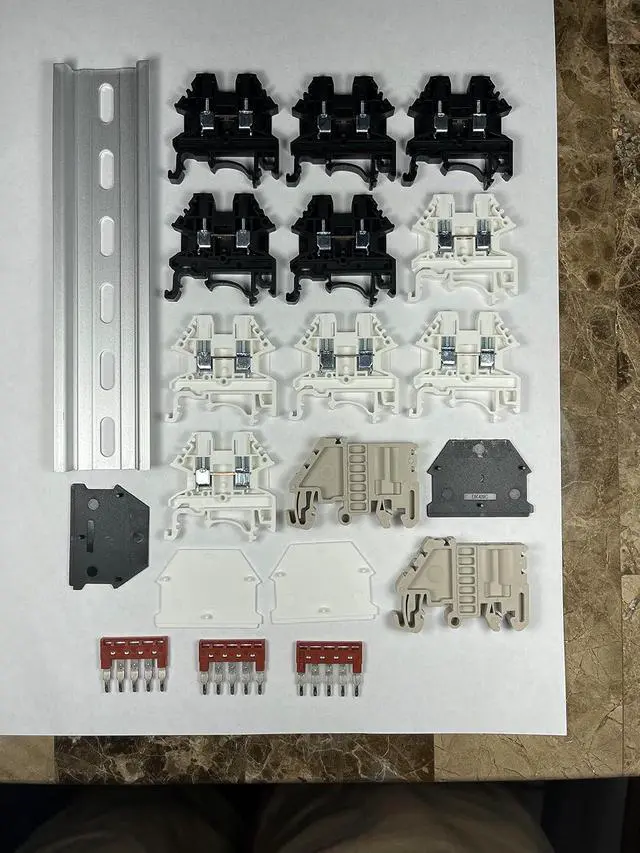

Jumper/Bridge: Press-fit/Insertion. This kit includes 5 DK 2.5N -BK Dinkle terminal blocks, 5 DK 2.5N -WE Dinkle terminal blocks, 5 DK 2.5N -GN Dinkle terminal blocks, 4 SS2 end brackets, 2 DK4NC-BK end covers, 2 DK4NC-WE end covers, 2 DK4NC-GN end covers, 3 DSS 2.5N -05P press-fit jumpers, 2 DK 2.5N -PE Ground Blocks, 2 DK 2.5NC -PE ground block covers, a 6" piece of zinc plated steel RoHS DIN rail, and an 6" piece of aluminum RoHS DIN rail.
Ground Blocks, End Covers, Jumpers, and Rails Included
Technical Data (UL) Rated Voltage: 600V
Rate Current: 20A Conductor Cross-section, Solid
(AWG): 22-12 Conductor Cross-section, Flexible
(AWG): 22-12
Rated Impulse Withstand Voltage: 6KV
Torque (N-m): 0.4
Screw: M 2.5
Wire Strip Length: 9-11mm
Insulating Material: PA
TxHxW (mm): 5.1 x 39.6 x 40.5 (Individual
Blocks) DIN Rail (mm): 35, 32
Jumper/Bridge: Press-fit/Insertion. This kit includes 5 DK 2.5N -BK Dinkle terminal blocks, 5 DK 2.5N -WE Dinkle terminal blocks, 5 DK 2.5N -GN Dinkle terminal blocks, 4 SS2 end brackets, 2 DK4NC-BK end covers, 2 DK4NC-WE end covers, 2 DK4NC-GN end covers, 3 DSS 2.5N -05P press-fit jumpers, 2 DK 2.5N -PE Ground Blocks, 2 DK 2.5NC -PE ground block covers, a 6" piece of zinc plated steel RoHS DIN rail, and an 6" piece of aluminum RoHS DIN rail.
