12V 6 Way Pre-Wired Waterproof Fuse Relay Box, 2 Relays and 6 ATC/ATO Blade Fuses, 5-Pin 40A Relay Block and Kit, for Cars Truck Marine Boat Jeep

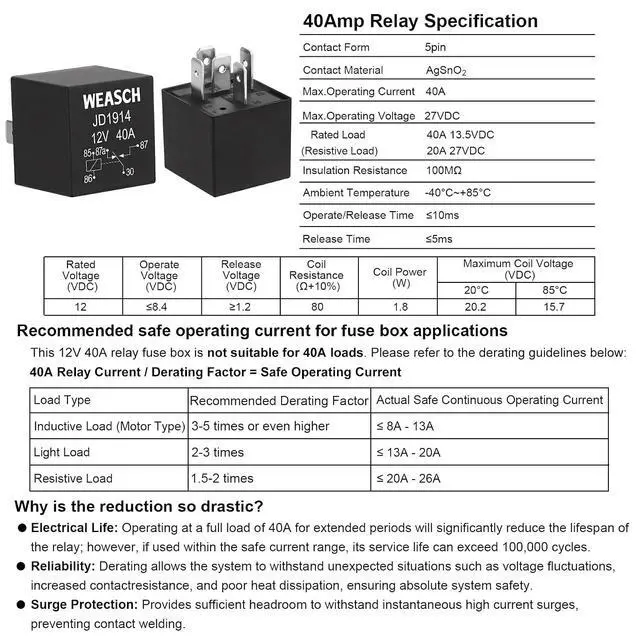

- Specifications: This 12v 6 way relay box package includes 2pcs 5Pin 40A JD1914 Relays, 6pcs 10A, 15A, 30 ATC/ATO blade fuses. You can replace these fuses according to actual needs

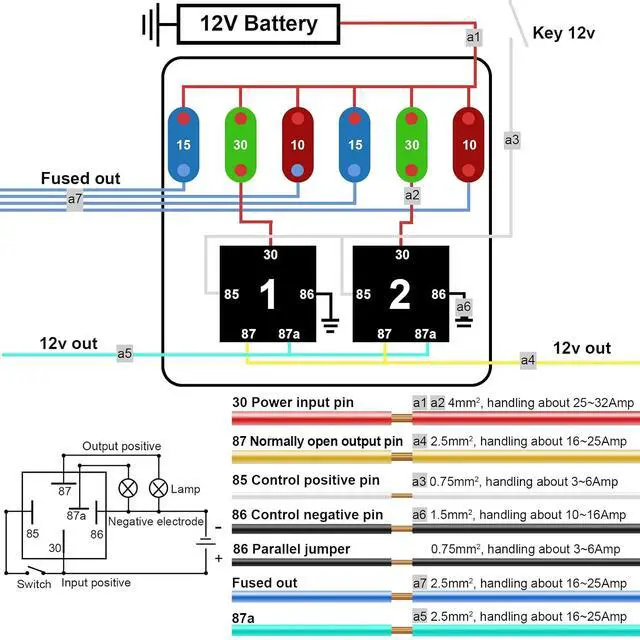

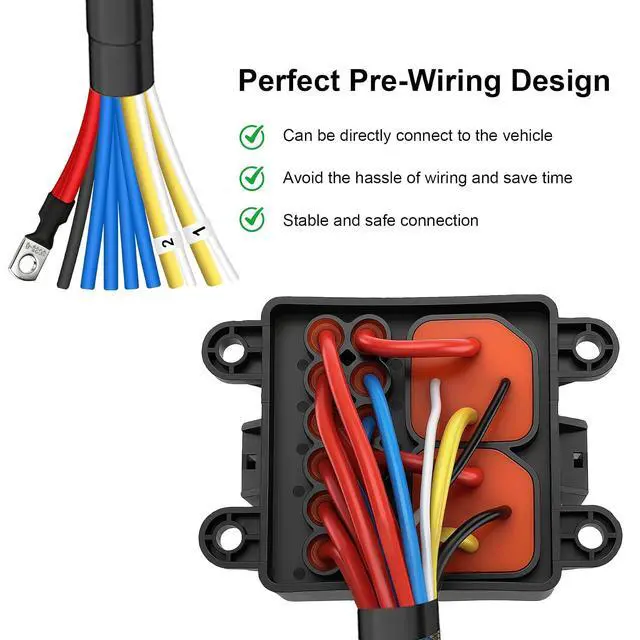

- Pre-Wired: 30 Power input red and 87 Normally open output pin yellow is 4mm² wire, handling about 25~32Amp; 85 Control positive pin White and 86 relay Parallel black is 0.75mm² wire 3~6Amp; 86 Control negative pin is 1.5mm² black wire 10~16Amp; 87a Normally closed pin green and fused out blue is 2.5mm² wire 16~25Amp. Refer to the wiring diagram for details, Please carefully check if the wire gauge meets your requirements before purchasing. We also offer a wireless version for DIY projects
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

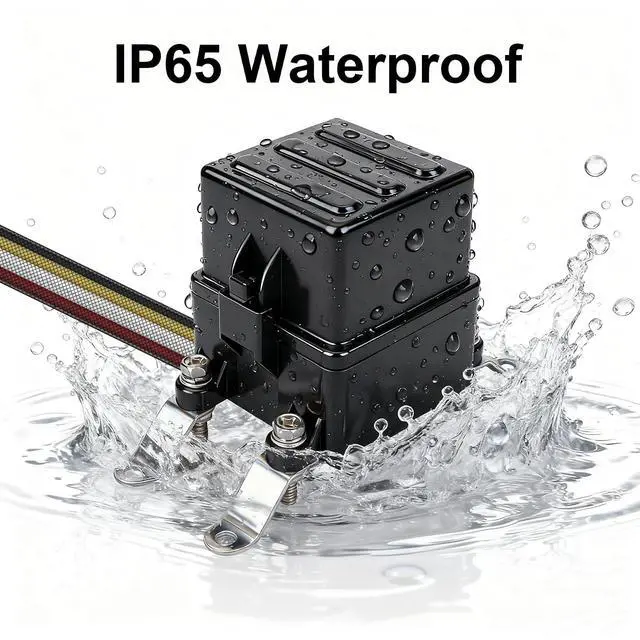

Waterproof & Dustproof: This fuse relay box made of nylon, which is strong and durable. IP65 waterproof, with rubber coil sealing, it is waterproof, dustproof and moisture-proof, Can block most water or dust from entering the relay box, and protect electrical components from being touched by wires, effectively improving usage safety.
Note: Do not place the relay box completely in water!

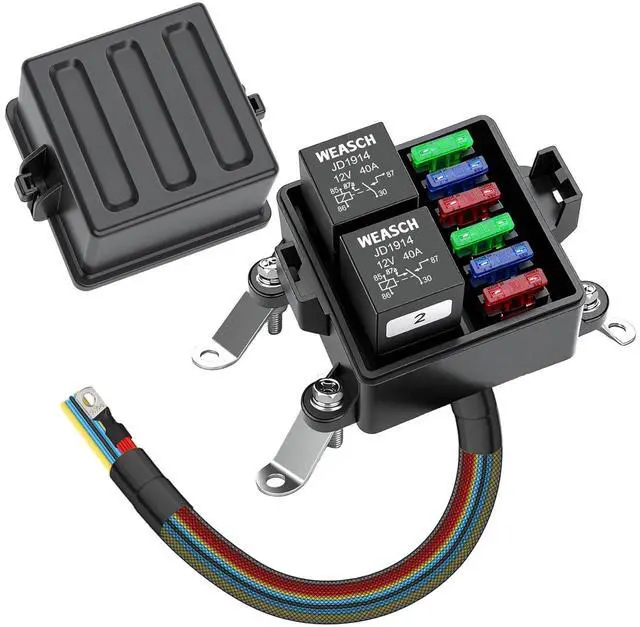

Double protection: The relay box is equipped with 6 fuse slots, 2 of which are wired in series with the relays to provide double overcurrent protection for the circuit. The fuses will blow first, protecting your equipment from damage and ensuring electrical safety
Application: This fuse relay box is suitable for allmost types of vehicles, including 4x4s, Jeep SUVs, UTVs, ATVs, RVs, pickups, trailers, campers, boats, etc. It provides a versatile solution for managing electrical systems in a variety of vehicles, ensuring reliable performance and electrical safety.
Specification:
Fuse Type: ATC & ATO Fuse
Way: 6 Way
Voltage: 12V
Cover Material: Plastic
Base Material: Flame Retardant Nylon Material
Product Shape: Insert Type
package: 2pcs 5Pin 40A JD1914 Relays, 6pcs 10A, 15A, 30 ATC/ATO blade fuses
Note: Do not place the relay box completely in water!
Double protection: The relay box is equipped with 6 fuse slots, 2 of which are wired in series with the relays to provide double overcurrent protection for the circuit. The fuses will blow first, protecting your equipment from damage and ensuring electrical safety
Application: This fuse relay box is suitable for allmost types of vehicles, including 4x4s, Jeep SUVs, UTVs, ATVs, RVs, pickups, trailers, campers, boats, etc. It provides a versatile solution for managing electrical systems in a variety of vehicles, ensuring reliable performance and electrical safety.
Specification:
Fuse Type: ATC & ATO Fuse
Way: 6 Way
Voltage: 12V
Cover Material: Plastic
Base Material: Flame Retardant Nylon Material
Product Shape: Insert Type
package: 2pcs 5Pin 40A JD1914 Relays, 6pcs 10A, 15A, 30 ATC/ATO blade fuses
