200x400x2mm 1.5W/m-k High Thermal Conductivity Silicone Thermal Conductivity Pad for CPU GPU Heatsink Cooling Heat Dissipation Heat Conduction Sheet
- MULTIPLE PROPERTIES: This thermal pad has good thermal conductivity, insulation, viscosity, elasticity, low heat resistance, filling.
- SIMPLE TO USE: At the same time, the product is sticky and easy to use. The gel sheet is made of a flexible silicone thermal conductive material with stable heat conduction, insulation properties, and softness and elasticity.
- THERMAL CONDUCTIVITY: Thermally conductive silicone sheet has excellent thermal conductivity to meet the thermal insulation requirements of most electronic products.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
INTERVAL HEAT TRANSFER FUNCTION: The thermal pad is specially designed for the use of heat transfer through the interval, which can fill the interval and effectively transfer the heat of the heat-generating component to the heat sink.

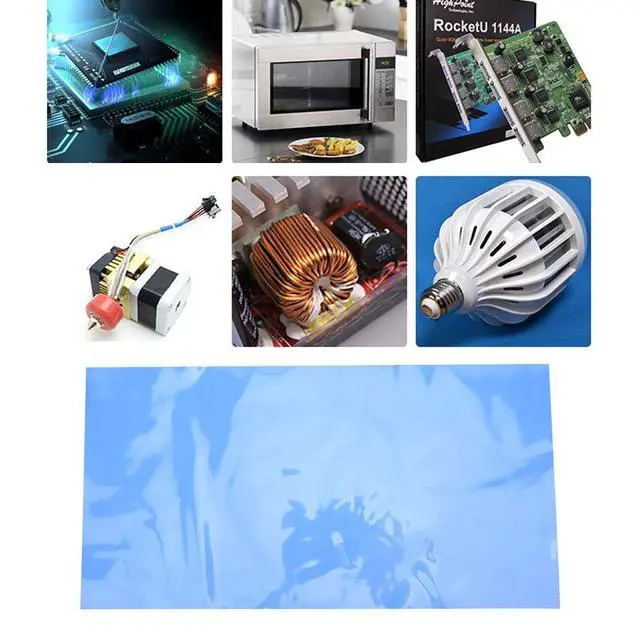

BROADLY SUITABLE: This thermal pad is applicable to graphics card North-South bridge, home appliances, high-speed hard drive, micro heat pipe radiator, high-power power supply, LED industry.
Specification:
Item Type: Thermal Conductive Pad
Size: 200 x 400 x 2mm / 7.87 x 15.75 x 0.08 in
Color: Blue
Thickness Tolerance: 0.2 +- 0.01
Continuous Using Temperature: -50~200
Conductivity Coefficient: 1.5W /m-k
Mass Resistivity: 10^12
Breakdown Voltage: 4.5KV
Hardness: 30±5 Shore A
proportion: 2.05
Tensile Strength: 15 kg/cm
Extension: 48%
Flame Retardant Grade: 90V-0-1
Package List:
1 x Thermal Conductivity Pad
Applications:
Graphics card memory north and south bridges
Home appliances
High-speed hard disk drives
Miniature heatpipe heat sinks
High-power power supplies
LED Industry

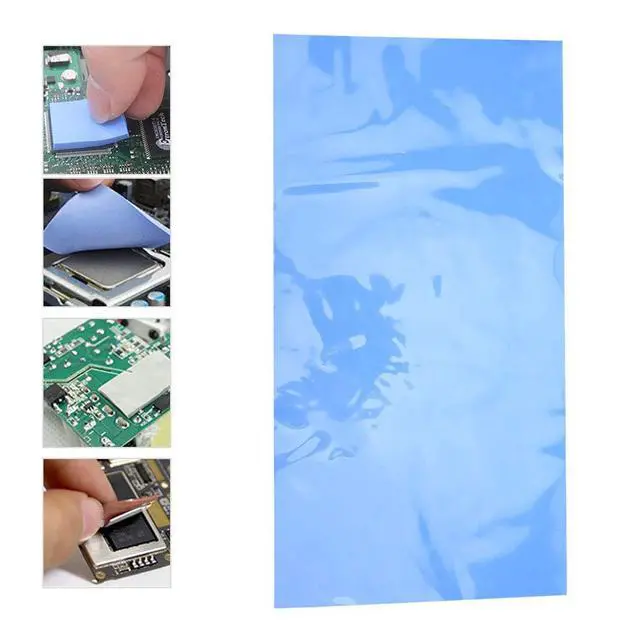

Users Manual:
1. Clean the surface, it will be glued or cleaned by the surface of the object to remove dust and oil.
2. Tear protective film. The left hand picks up the protective film on the side of the product with the right hand, and can not tear the protective film on both sides at the same time, reducing the number and area of direct contact with the silicone sheet to avoid damage to the viscosity and thermal conductivity of the product.
3. Fixed heat sink. Remove the protective film from the other side, apply a certain pressure to the heat sink after installation, and then fix it with screws.
BROADLY SUITABLE: This thermal pad is applicable to graphics card North-South bridge, home appliances, high-speed hard drive, micro heat pipe radiator, high-power power supply, LED industry.
Specification:
Item Type: Thermal Conductive Pad
Size: 200 x 400 x 2mm / 7.87 x 15.75 x 0.08 in
Color: Blue
Thickness Tolerance: 0.2 +- 0.01
Continuous Using Temperature: -50~200
Conductivity Coefficient: 1.5W /m-k
Mass Resistivity: 10^12
Breakdown Voltage: 4.5KV
Hardness: 30±5 Shore A
proportion: 2.05
Tensile Strength: 15 kg/cm
Extension: 48%
Flame Retardant Grade: 90V-0-1
Package List:
1 x Thermal Conductivity Pad
Applications:
Graphics card memory north and south bridges
Home appliances
High-speed hard disk drives
Miniature heatpipe heat sinks
High-power power supplies
LED Industry
Users Manual:
1. Clean the surface, it will be glued or cleaned by the surface of the object to remove dust and oil.
2. Tear protective film. The left hand picks up the protective film on the side of the product with the right hand, and can not tear the protective film on both sides at the same time, reducing the number and area of direct contact with the silicone sheet to avoid damage to the viscosity and thermal conductivity of the product.
3. Fixed heat sink. Remove the protective film from the other side, apply a certain pressure to the heat sink after installation, and then fix it with screws.
