Mesh Node T114 V2 LoRaWAN Meshtastic Development Board & Tracker Nordic nRF52480 with SX1262 Chip, 1.9-inch TFT Display, 902-928MHz, BLE WiFi, Arduino/Meshtastic Compatible

Easy to
Connect: Simple plug-and-play GNSS connectors allow for fast and easy connections and disconnections, enhancing the versatility of your project setups.
Versatile Display: Features a 1.14" high-resolution TFT-LCD display (optional), offering clear visuals with a 135 (H) RGBx240 (V) resolution and 262K colors.

Mesh Node T114 V2 LoRaWAN Meshtastic Development Board
Product Description:
The mesh Node T114 v2 is a development board based on LoRaWAN technology, using the NRF family of chips and supporting low-power communication protocols, especially for remote wireless networks and Internet of Things (IoT) applications. It is compatible with Meshtastic software and also supports the development environment.
Features
MCU nRF52840 (Bluetooth), LoRa chipset SX1262.
Powerful display function (optional), onboard 1.14 inch TFT-LCD display contains 135 (H) RGB x240 (V) dots and can display up to 262k colors.
Low power consumption, 11 uA in deep sleep.
Powerful display function, onboard 1.9 -inch TFT-LCD display contains 170 (RGB) X320 dots and can display up to 262k colors.
Operation condition: -20 ~ 70, 90%RH (No condensing).
Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection measures.
Compatible with Arduino, we provide development frameworks and libraries.

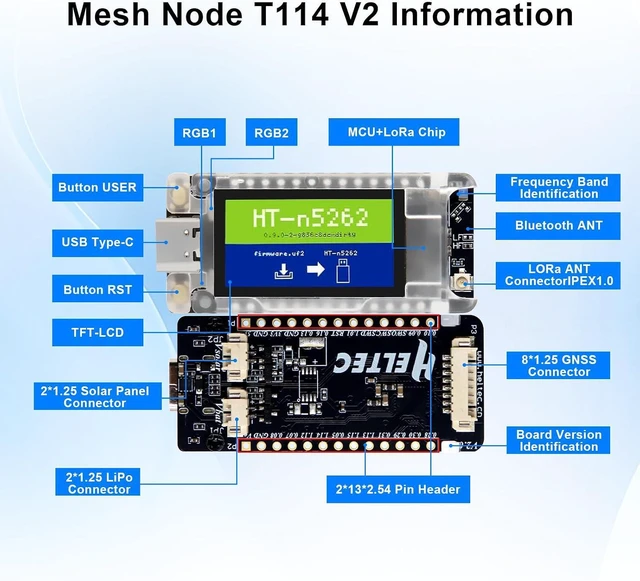

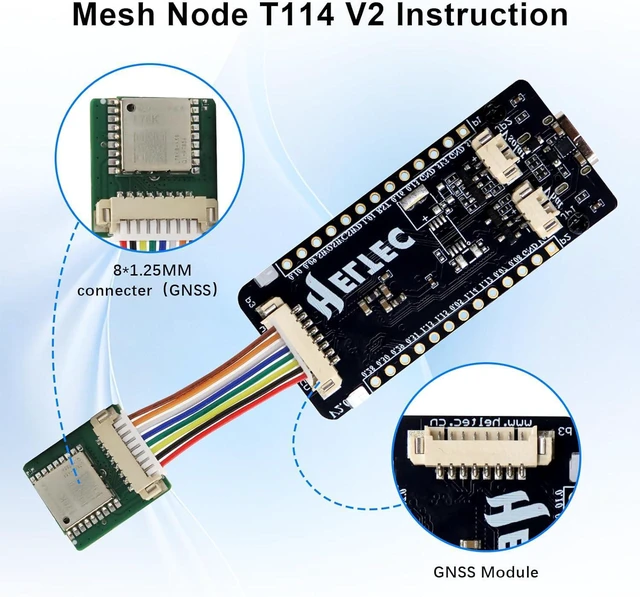

Various Interfaces: 1.25 *2P LiPo connector, 1.25 *2P Solar panel connector, 1.25 *8P GNSS module connector, which greatly increase the extensibility of the board.
MCU nRF52840
LoRa Node Chip SX1262
Max. TX Power 21±1dBm
Max. Receiving sensitivity -135dBm@SF12 BW=125KHz
Bluetooth Bluetooth LE: Bluetooth 5, Bluetooth mesh
Hardware Resource USB 2.0, 4 * SPI, 2 * TWI, 2 * UART, 4 * PWM, QPSI, 12S, PDM, QDEC Etc.
Memory 1M ROM; 256KB SRAM

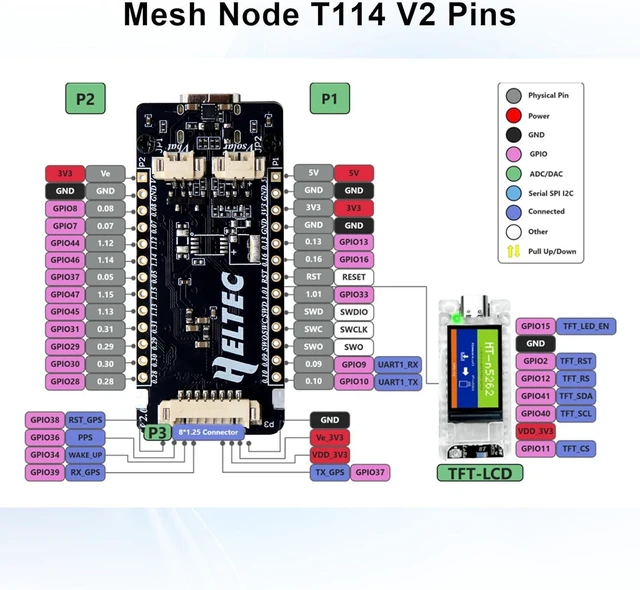

Interface Type-C USB; 2* 1.25 lithium battery connector; 2* 1.25 solar panel connector; LoRa ANT (IPEX 1.0 ); 8* 1.25 GPS module connector; 2*13* 2.54 Header Pin.
Battery 3~ 4.2V battery power supply and charge.
Operating Temperature -20 ~ 70

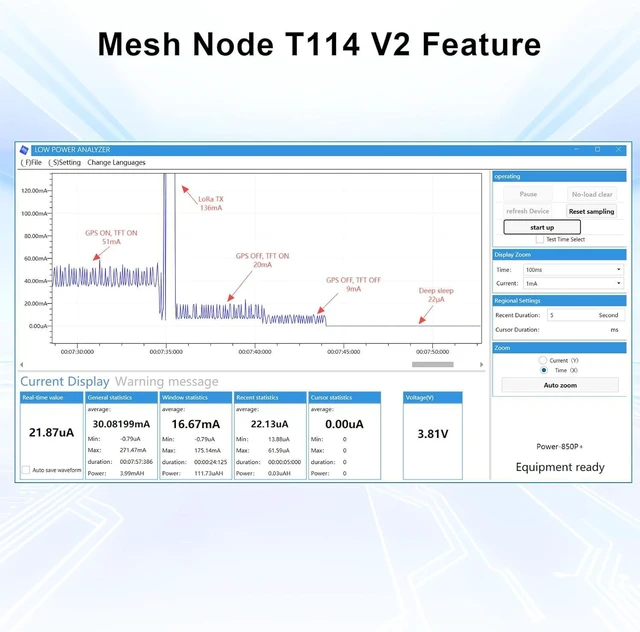

Electrical characteristics Deep Sleep: ~11uA;
Tracker mode sleep: ~22uA; GPS OFF, TFT
OFF: ~9mA; GPS OFF, TFT
ON: ~20mA; GPS ON, TFT
ON: ~51mA.
Display onboard 1.14 inch TFT-LCD display

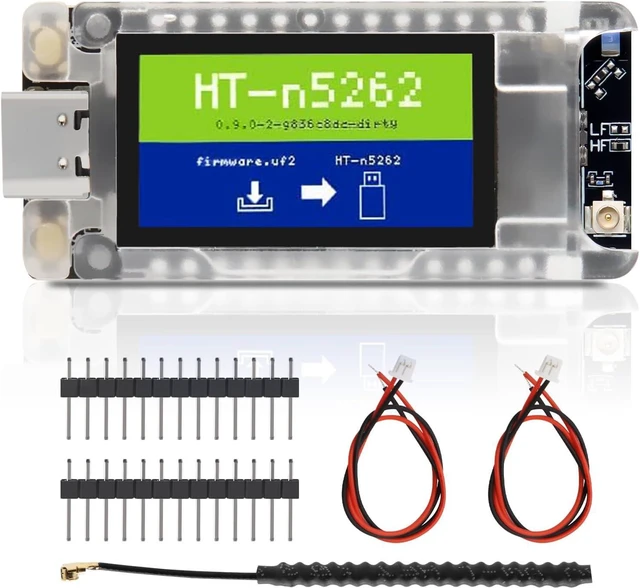

Packing list
1 X Mesh Node T114 V2 for Meshtastic
1 X LoRa Antenna
2 X SH 1.25 ×2 Battery Connector
2 X 2.54 *13 Header Pi
