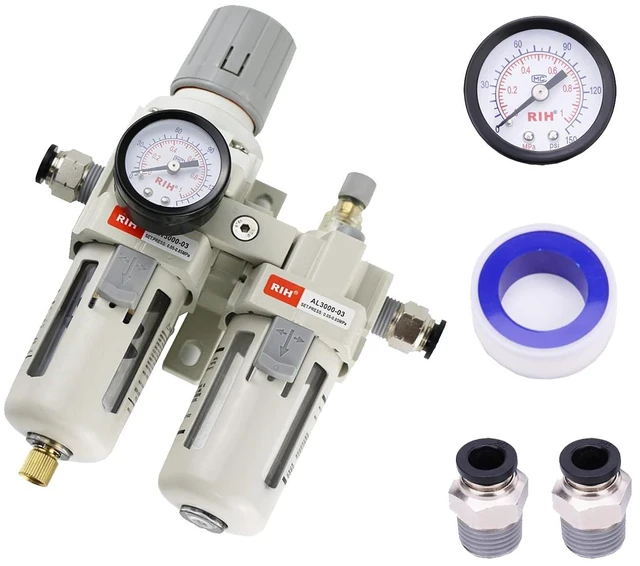

3/8" NPT Compressed Air Filter Regulator Lubricator Combo, Water/Oil Trap Separator, Gauge (0-150 psi), Semi-Auto Drain, Poly Bowl & Bracket, 3-in-1 Two Unit (3/8" NPT)

Working Temperature32140°FFlow Rate70 SCFM (2000 L /Minute)@ 90 PSI

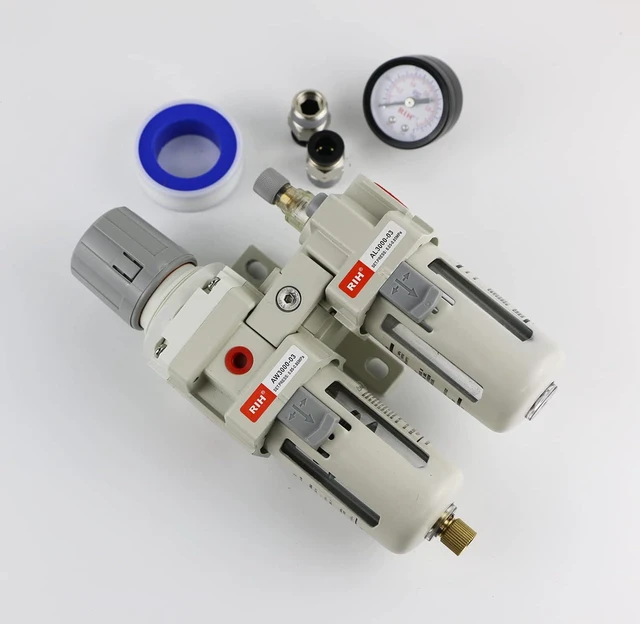

Product PackagingIncludes semi-Auto Drain & Polycarbonate Bowl, 0-150 Gauge & Bracketa pair of Air Coupler Plug Kit, 2 x 3/8" NPT Fittings, 1 x Thread Seal Tape

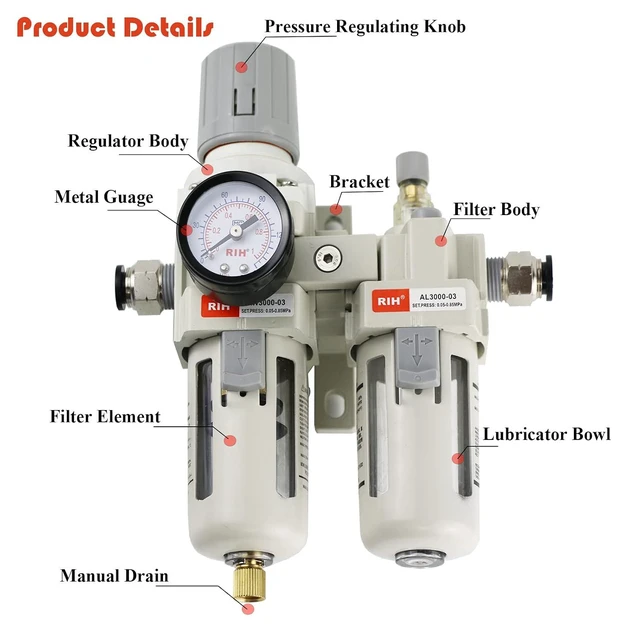

Attention to Detail

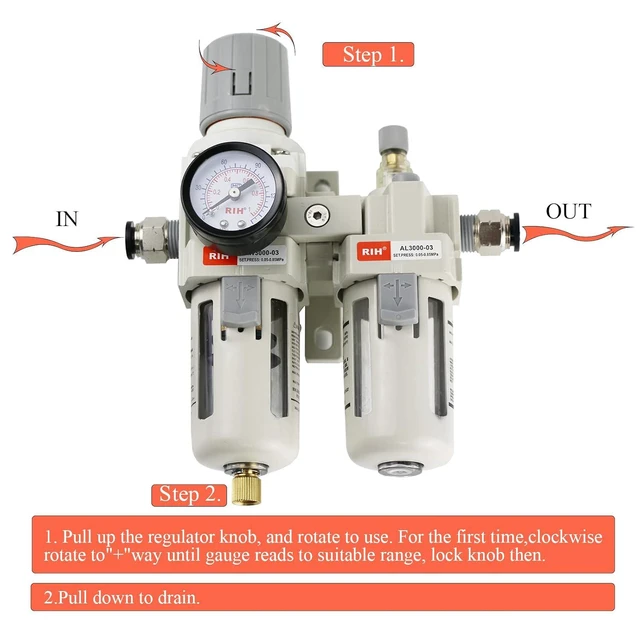

Pressure Regulation
Pull up the pressure gauge knob and turn:
If you turn clockwise, the pressure will rise steadily. As you turn counterclockwise, the pressure drops.
Stop turning and lock the knob when you reach the desired index, forget this step and you may run into leak problems.
Oil Quantity Adjustment
Turn the needle valve in the "+" direction to increase the suction speed, and in the "-" direction to slow down or stop.
Prepare
All calibrated components should meet the maximum flow requirements.
Please clean the interfaces and joints before installation to effectively avoid bringing dust into the gas path.
Note that the airflow direction and arrows on the product body are pointing correctly, and that the port and thread sizes match.
Dial to read
Make sure that the pressure gauge is tightly mounted on the main body, and pay attention to whether the reading rises and falls smoothly when adjusting the pressure.
Drainage
The drainage column is automatically discharged without pressure, and the air flow is closed when passing through. When the water level exceeds the upper limit, it must be drained, otherwise it will lead to poor dehumidification.
Refueling
Turn the oil filling screw clockwise and add no more than 80% of the drum. After refueling, tighten the refueling screw.
The Story Of Right Pneumatic
Pneumatic was established in
2003.
The company's main products are: air source processing components, actuators, cylinders, solenoid valves, etc. Our company is constantly improving and improving, with advanced product design, simple structure, beautiful appearance and long service life.
Based on product quality and integrity, we provides users with high-quality products.
3/8'' Air Filter Regulator Lubricator Combo 3 in 1
Product Description
Air inlet size: 3/8 NPT
Flow: 2000L/minutes
Max working pressure: 145PSI( 10.3BAR )
Operating Temperature Range: 40-140F(5-60)
Drain type: Manual
Body material: Aluminum Alloy
1 x 3 in 1 3/8'' Air Filter Regulator Lubricator Combo
1 x Pressure gauge
1 × Teflon Tape
2 × 3/8" OD× 3/8" NPT Male push to connect fittings
