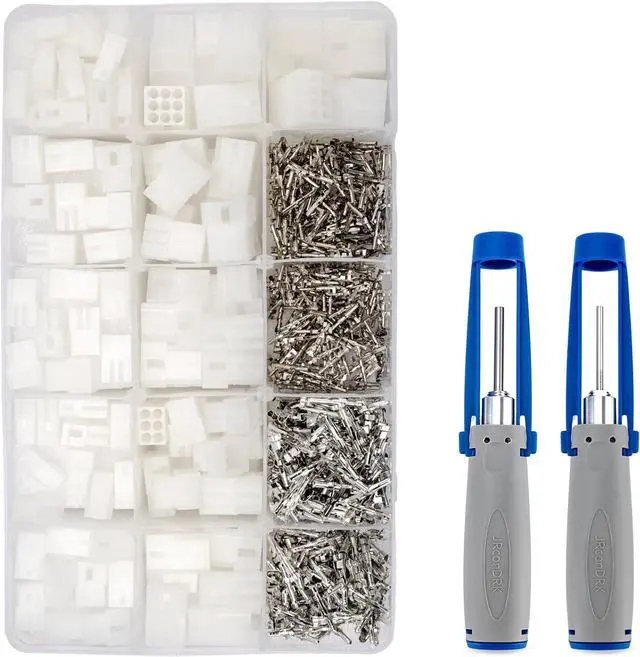

ST6478 Pin Connectors Kit 678PCS 2 3 4 6 9 12 Pin Housing 062 and 093Series Crimp Terminal Molex Connector 14-24AWG Male Female Pins with Pin Remove Extractor Tool for Electrical Connector

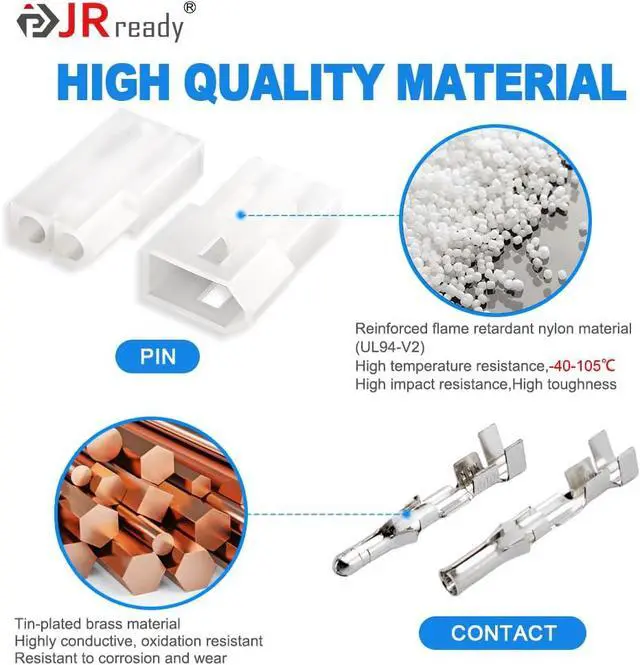

- Housing Connector Performance The housing connectors is made of PA66 material, rated voltage is 250V AC/DC, operating temperature -40 to +105, the flame retardant grade is UL94-V2,. JRN002 connector standard Molex .093 series connector-5.03MM pitch, JRN003 for Molex .063 series connector-3.68MM pitch. PLEASE NOTE: The connector housing is transparent white. Exposure to air may result in slight color differences, but it doesn't affect the performance of the product. If you have any questions about this, please contact us anytime.
- Housing Connector Design The housing use a snap-in design ,the buckle does not loosen or fall, easy to disassemble and assemble and supports free assembly of connectors and pin jack terminals. different shape design of the two end of socket avoid mis-matching during the assembly process.
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

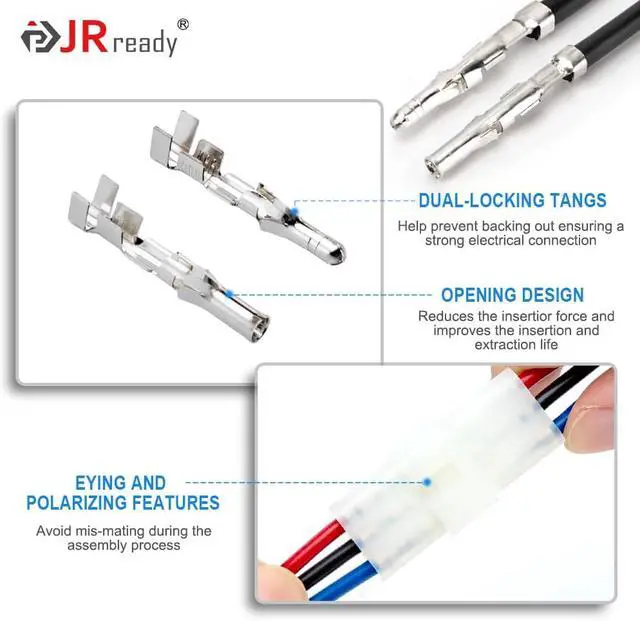

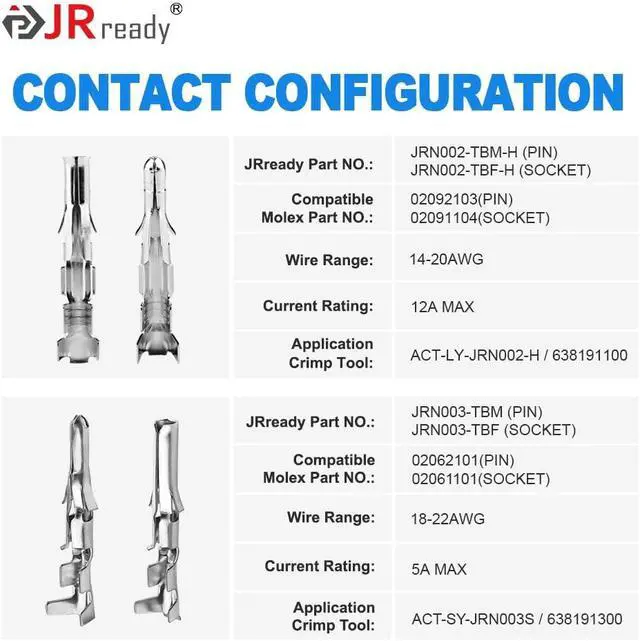

Terminal Contact The terminals are made of tin-plated brass for better electrical conductivity, oxidation and corrosion resistance. Dual-locking tangs help prevent backing out ensuring a strong electrical connection. Opening design reduces the insertior force and improves the insertion and extraction durability more than 100 times. JRN002 2.36 mm diameter, Wire range 14-20 AWG( 0.5 mm²to 2mm²), rated current 12A. JRN 0031.57 mm diameter, wire range 18-22AWG( 0.32 mm² to 0.8 mm²), rated current 5A.

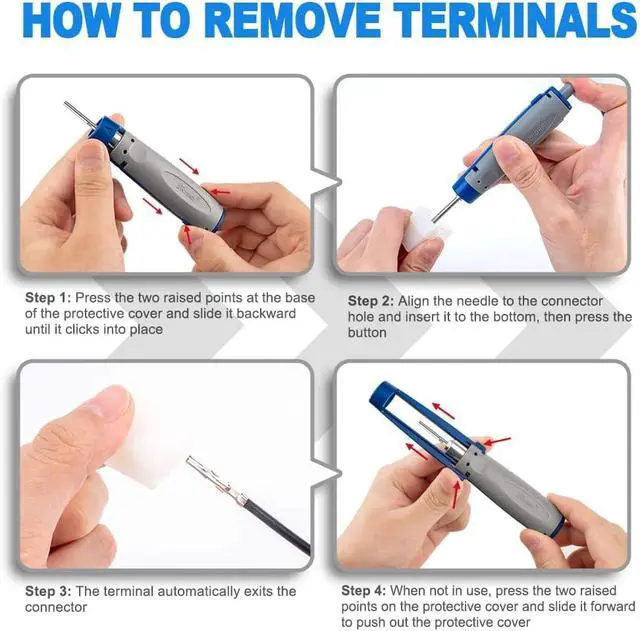

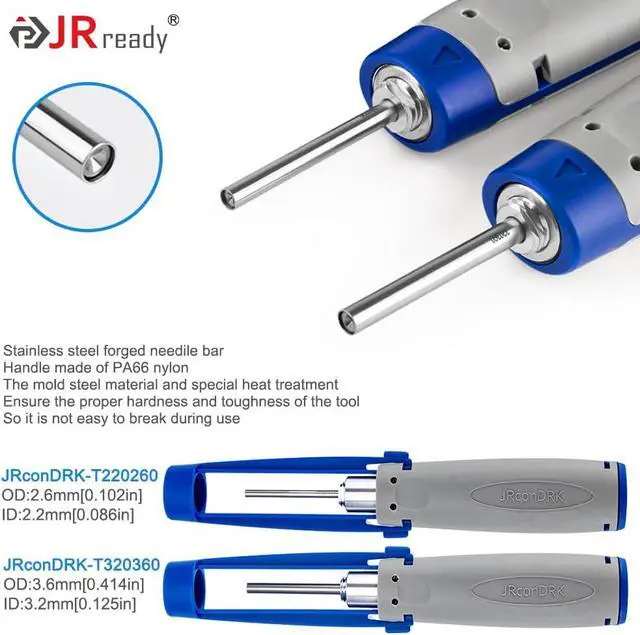

Pin Extractor Tool The unique smooth built-in plunger design pushes pins out from behind the connector blocks, the pull-out and lock protective cover effectively safeguards the tips. The pin extractor tool features a chamfered design for accurate fit with connectors. Made from special materials with hardness up to HV500, these tips ensure durability, wear resistance, and toughness. JRconDRK-T320360 is suitable for JRN002 series connector. JRconDRK-T220260 is suitable for JRN003 series connector.

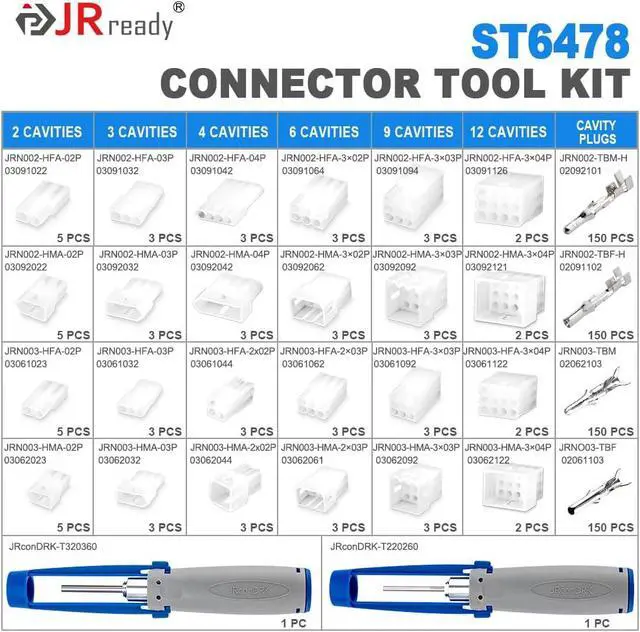

Compatible with MOLEX Models [Molex Standard. 062" Series Connectors] 2 pin connector-03061023/03062023; 3 pin connector-03061032/03062032; 4pin connector-03061044/03062044; 6 pin connector-03061062/03062061; 9 pin connector-03061092/03062092; 12 pin connector-03061122/03062122;
Contacts pin: 02062103
/ 02062101socket: 02061103 / 02061101. [Molex Standard. 093" Series Connectors] 2 pin connector-03091022/03092022; 3 pin connector-03091032/03092032; 4pin connector-03091042/03092042; 6 pin connector-03091064/03092062; 9 pin connector-03091094/03092092; 12 pin connector-03091126/03092121;
Contacts pin: 02092101
/ 02092103socket: 02091102 / 02091104.
Pin Extractor Tool The unique smooth built-in plunger design pushes pins out from behind the connector blocks, the pull-out and lock protective cover effectively safeguards the tips. The pin extractor tool features a chamfered design for accurate fit with connectors. Made from special materials with hardness up to HV500, these tips ensure durability, wear resistance, and toughness. JRconDRK-T320360 is suitable for JRN002 series connector. JRconDRK-T220260 is suitable for JRN003 series connector.
Compatible with MOLEX Models [Molex Standard. 062" Series Connectors] 2 pin connector-03061023/03062023; 3 pin connector-03061032/03062032; 4pin connector-03061044/03062044; 6 pin connector-03061062/03062061; 9 pin connector-03061092/03062092; 12 pin connector-03061122/03062122;
Contacts pin: 02062103
/ 02062101socket: 02061103 / 02061101. [Molex Standard. 093" Series Connectors] 2 pin connector-03091022/03092022; 3 pin connector-03091032/03092032; 4pin connector-03091042/03092042; 6 pin connector-03091064/03092062; 9 pin connector-03091094/03092092; 12 pin connector-03091126/03092121;
Contacts pin: 02092101
/ 02092103socket: 02091102 / 02091104.
