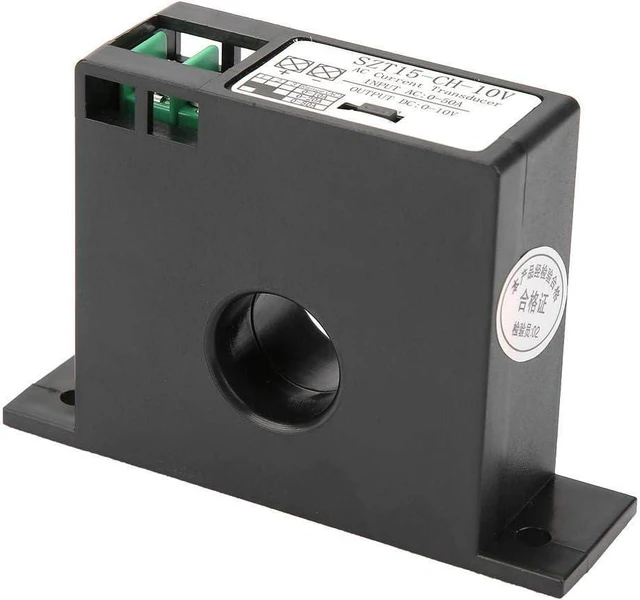

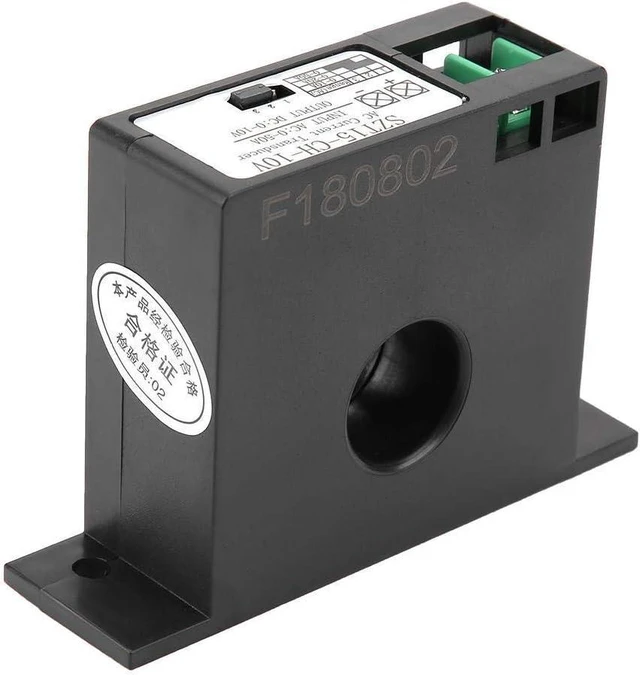

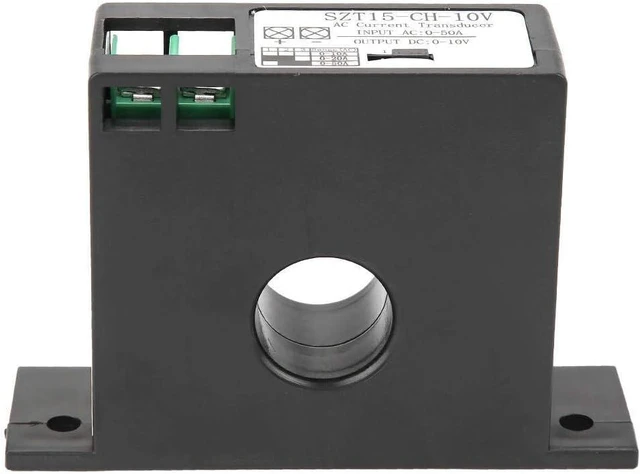

AC Current Transducer Transmitter AC 0-50A to DC 0-10V SZT15-10V Self-Powered Current Mutual Inductor
- Mutual inductance current monitoring has high current detection accuracy and isolation of input and output.
- Self-powered: there is no external power supply required.
- Easy to install: There is no need to connect DC into the circuit when measuring.
+
+
Overview
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Current introduction: Measured current AC 0-10/20/50A, output DC 0-10V.
Straight-through structure design: The isolation withstand voltage is up to 2000V.
High Accuracy AC Current Transducer Transmitter AC 0-50A to DC 0-10V SZT15-CH-10V Self-Powered Current Mutual Inductor

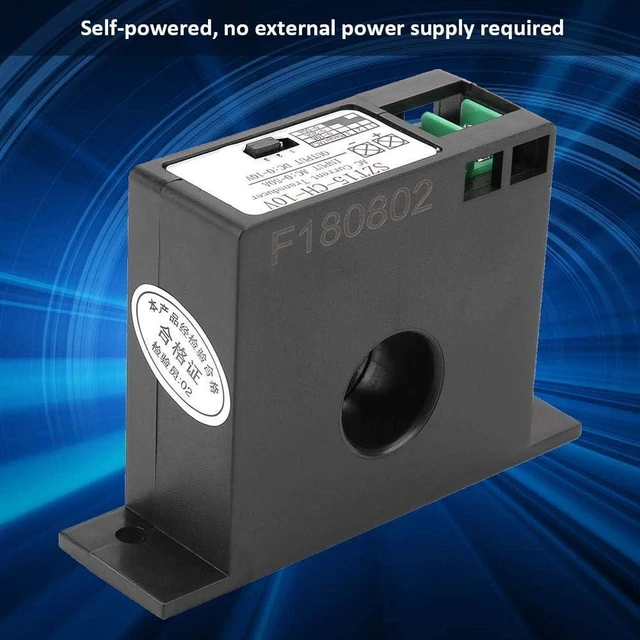

Self-powered: there is no external power supply required.

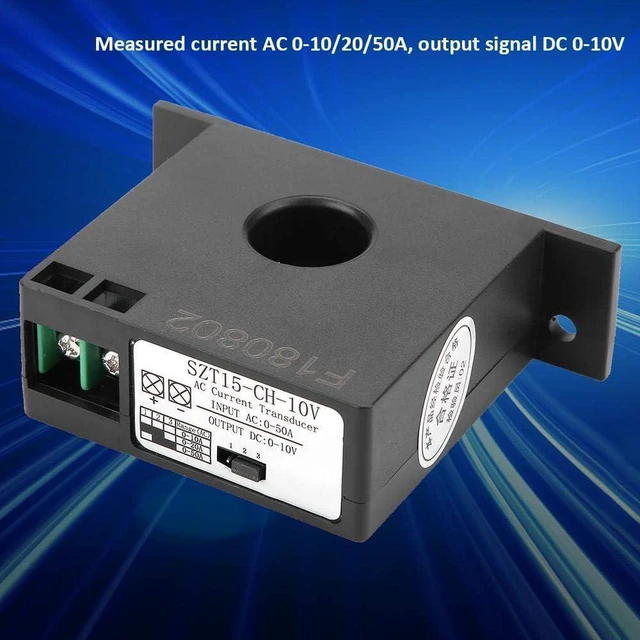

Current introduction: Measured current AC 0-10/20/50A, output DC 0-10V.
High accuracy: Mutual inductance current monitoring has high current detection accuracy and isolation of input and output.
Description:
This product is Suitable for AC current measurement and monitoring, AC monitoring, AC motor overload, electronic switch of automatic control system and so on.
Specification:

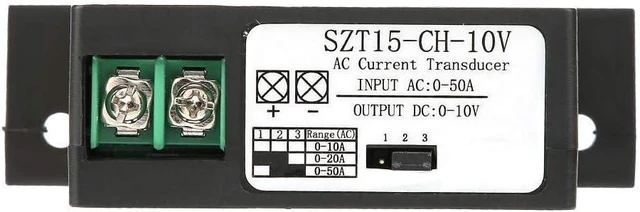

Model: SZT15-CH-10V
Supply power: Not required
Output type: 0-10V DC
Input straight-through current: AC 0-10A/20A/50A
Switch on minimum: 0.5 ± 0.2A
Maximum overload of straight-through current: 200%
Accuracy: ±1%
Power consumption: 1W
Leakage current: 1mA
Hysteresis: 1%
Linearity:
Straight-through wire diameter: 0.35 -20mm
Response time: 200ms
Withstand voltage: 2000VAC 50/60Hz 1min
Working environment: -20~60, 5-95%RH

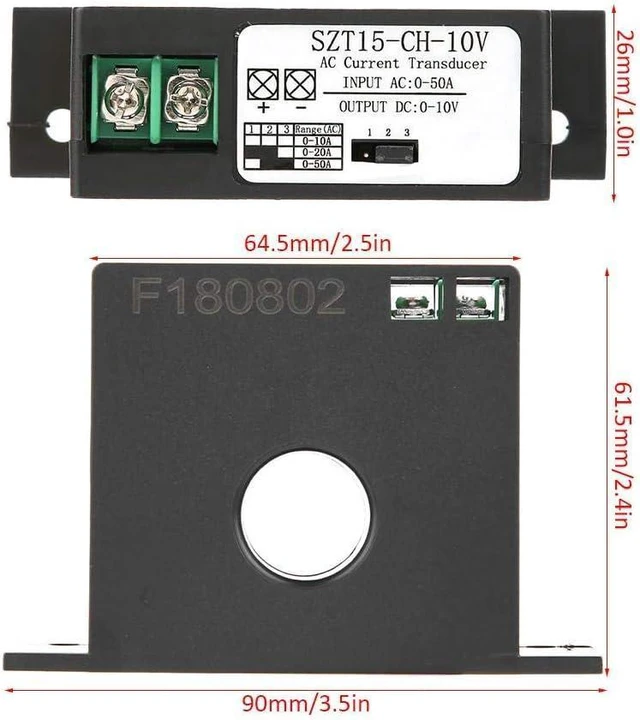

Dimensions: 61.5 *90*26mm / 2.4 * 3.5 * 1.0 in
Hole diameter: 20mm / 0.8 in
Package weight: Approx. 107g/ 3.8 oz
Package list:
× AC Current Transmitter
Straight-through structure design: The isolation withstand voltage is up to 2000V.
High Accuracy AC Current Transducer Transmitter AC 0-50A to DC 0-10V SZT15-CH-10V Self-Powered Current Mutual Inductor
Self-powered: there is no external power supply required.
Current introduction: Measured current AC 0-10/20/50A, output DC 0-10V.
High accuracy: Mutual inductance current monitoring has high current detection accuracy and isolation of input and output.
Description:
This product is Suitable for AC current measurement and monitoring, AC monitoring, AC motor overload, electronic switch of automatic control system and so on.
Specification:
Model: SZT15-CH-10V
Supply power: Not required
Output type: 0-10V DC
Input straight-through current: AC 0-10A/20A/50A
Switch on minimum: 0.5 ± 0.2A
Maximum overload of straight-through current: 200%
Accuracy: ±1%
Power consumption: 1W
Leakage current: 1mA
Hysteresis: 1%
Linearity:
Straight-through wire diameter: 0.35 -20mm
Response time: 200ms
Withstand voltage: 2000VAC 50/60Hz 1min
Working environment: -20~60, 5-95%RH
Dimensions: 61.5 *90*26mm / 2.4 * 3.5 * 1.0 in
Hole diameter: 20mm / 0.8 in
Package weight: Approx. 107g/ 3.8 oz
Package list:
× AC Current Transmitter
