![Main image of 176 Lbs Universal Magnetic Base Indicator Holder with Speed Set Fine Adjustment + 0.03" Dial Test Indicator 202-7960(202-7932+303-3203) P]](https://c1.neweggimages.com/productimage/nb640/C6VTD26080616QNI753.jpg)

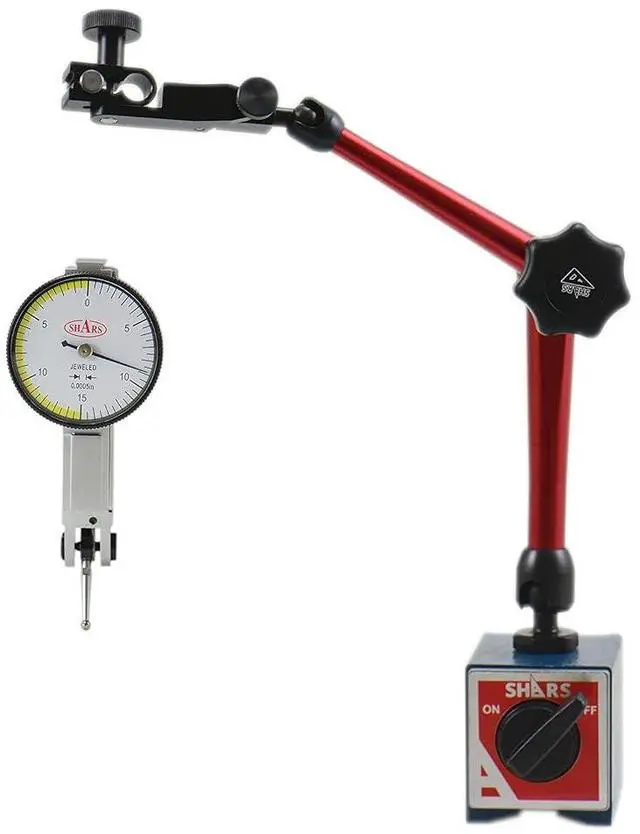

176 Lbs Universal Magnetic Base Indicator Holder with Speed Set Fine Adjustment + 0.03" Dial Test Indicator 202-7960(202-7932+303-3203) P]
- SKU# 202-7960(202-7932+303-3203)
- Base Indicator Holder: Magnetic Pull (lbs): 176; OAL (Arm): 12.20"; Base Material: steel; Base Type: standard; Thread Size : M8 x 1.25; Hydraulic: No; Magnetic Base Dimension: 2.36" L x 1.97" W x 2.16" H; Fixed Arm Length (inch): 4.3"; Branch Arm Length (inch): 6.85"; Fine Adjustment: speed-set; Arm Style: Articulated Arm; Holds 3/8", 6mm, & 8mm diameter stem, 1/4" dovetail and lug back
- Measuring Range: 0.030"; Graduation: 0.0005"; Accuracy: 0.0005"; Dial Reading: 0-15-0; Measuring Force: 0.5N; Contact Point Length: 0.82"; Contact Point Ball Diameter: 0.080"
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
SKU# 202-7960(202-7932+303-3203)
Base Indicator Holder: Magnetic
Pull (lbs): 176;
OAL (Arm): 12.20";
Base Material: steel;
Base Type: standard;
Thread Size: M8 x 1.25;
Hydraulic: No;
Magnetic Base Dimension: 2.36" L x 1.97" W x 2.16" H;
Fixed Arm Length (inch): 4.3";
Branch Arm Length (inch): 6.85";
Fine Adjustment: speed-set;
Arm Style: Articulated Arm; Holds 3/8", 6mm, & 8mm diameter stem, 1/4" dovetail and lug back
Measuring Range: 0.030";
Graduation: 0.0005";
Accuracy: 0.0005";
Dial Reading: 0-15-0;
Measuring Force: 0.5N;
Contact Point Length: 0.82";
Contact Point Ball Diameter: 0.080"
Base Indicator Holder: Magnetic
Pull (lbs): 176;
OAL (Arm): 12.20";
Base Material: steel;
Base Type: standard;
Thread Size: M8 x 1.25;
Hydraulic: No;
Magnetic Base Dimension: 2.36" L x 1.97" W x 2.16" H;
Fixed Arm Length (inch): 4.3";
Branch Arm Length (inch): 6.85";
Fine Adjustment: speed-set;
Arm Style: Articulated Arm; Holds 3/8", 6mm, & 8mm diameter stem, 1/4" dovetail and lug back
Measuring Range: 0.030";
Graduation: 0.0005";
Accuracy: 0.0005";
Dial Reading: 0-15-0;
Measuring Force: 0.5N;
Contact Point Length: 0.82";
Contact Point Ball Diameter: 0.080"
