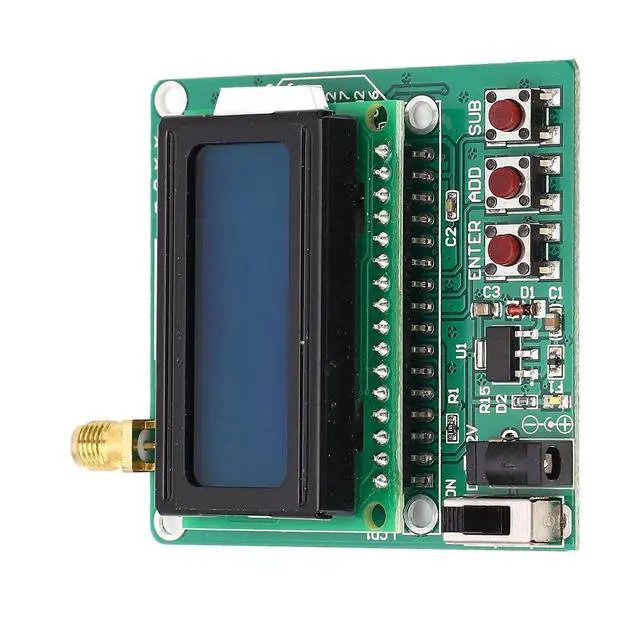

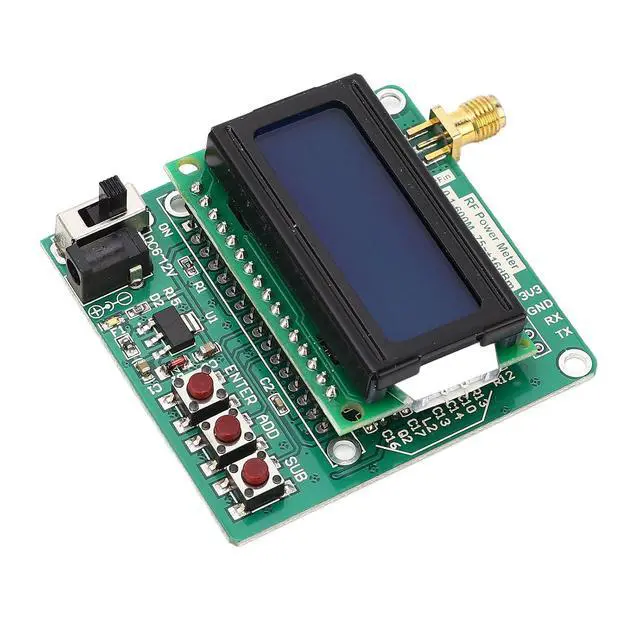

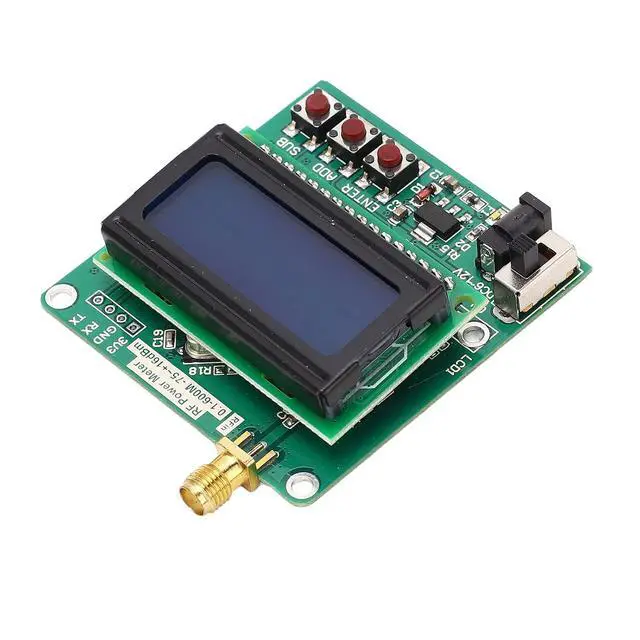

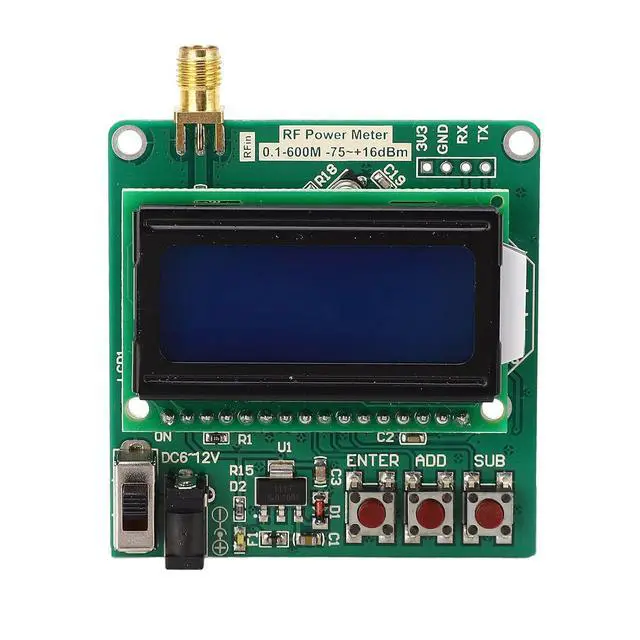

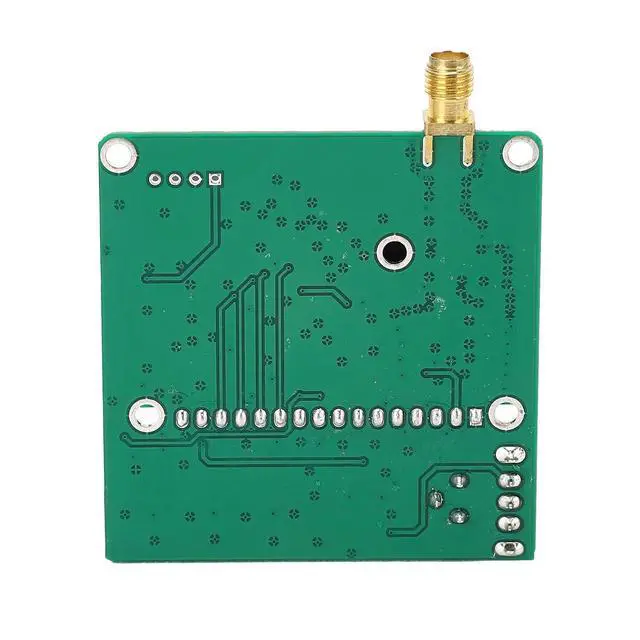

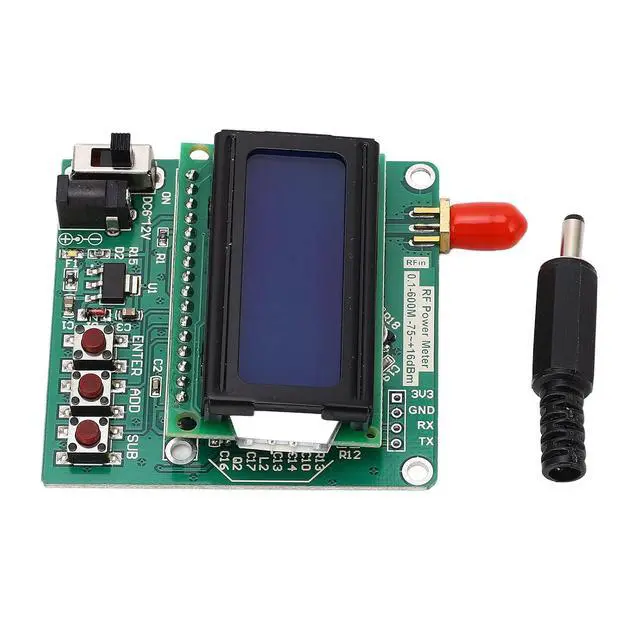

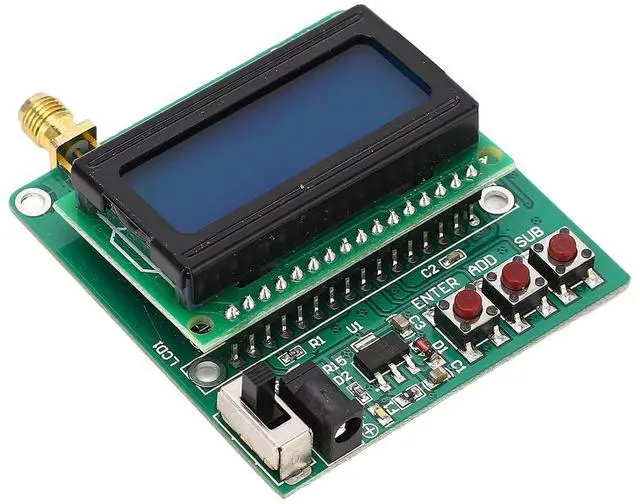

Digital Rf Power Meter, 0.1-600 MHz, -75 to +16 dBm, SMA K Output, Logarithmic Detector AD8317

OUTPUT INTERFACE: Equipped with an SMA K output interface, please purchase according to your specific needs. The instrument is both and reliable, providing peace of mind and confidence during use.
SUPERIOR PERFORMANCE: This RF power meter boasts an impressive measuring power range of -75 to +16 dBm (which can be extended up to 100 dBm with an external RF attenuator).

Digital Rf Power Meter Rf Rf Power Meter, Digital Rf Power Meter Logarithmic Detector Ad8317 Logarithmic Detector Rf Log Output Power Meter
VERSATILE FEATURES: The RF power meter is straightforward in design, simple to use, stable in performance, highly dependable, and capable of fast, sensitive measurements.
WIDE FREQUENCY RANGE: With a frequency range of 0. to 600 MHz, this RF power meter is suitable for RF power measurement, instrument calibration, and provides a power measurement resolution of 0. dBm.
SUPERIOR PERFORMANCE: This RF power meter boasts an impressive measuring power range of -75 to +16 dBm (which can be extended up to 100 dBm with an external RF attenuator).

1.
Excellent Performance: The measuring power range of RF power meter is 75 to +16 dBm (external RF attenuator extendable to 100 dBm).

2.
Diverse Feature: The RF power meter is simple in structure, easy to use, stable in performance, highly reliable, sensitive and fast in measurement.

3.
Output Interface: The output interface of the RF power meter is SMA K. Please choose to buy according to your actual needs. and reliable, you can buy and use with confidence.

4.
Measurement Frequency Range: The RF power measurement, instrument calibration, 0. to 600 MHz. Power measurement resolution 0. dBm. Bring you a comfortable and convenient experience.

5.

Specifications

: Thehe RF power meter is 6 to 12VDC, operating current
Specification:
Item Type: RF Power Meter
Material: PCB
Measured Power Range: -75 to +16 dBm (Extendable to 100 dBm with external RF attenuator)
Measured Power Resolution: 0. dBm
Measurement Frequency Range: 0. to 600 MHz
Output Interface: SMA K
Operating Current:
How to Use:
Interface Display And Operating Instructions:
1, Main display
The First Line Shows: RF Power Meter
The Second Line Shows: P Power dBm, AT Attenuation dB
The main menu shows the measurement results and cannot be changed or adjusted
2, Function menu
A, Attenuation setting menu
The First Line Shows: Attenuation Menu
The Second Line Shows: ATTN: XXdB
Function Keys To Enter The Menu: Press and hold ENTER, then press to exit, ADD SUB for +, operation
B, Internal compensation setting
First Line: ADC Offset Menu
Second Line: Offset: +/ xx
Menu Function Keys: Press ADD and SUB, ENTER to exit, ADD SUB to perform +, operations simultaneously
C,
Auto Backlight Function: When there is no backlight, press any key to turn on the backlight
Main keys ENTER to confirm or exit, ADD to
