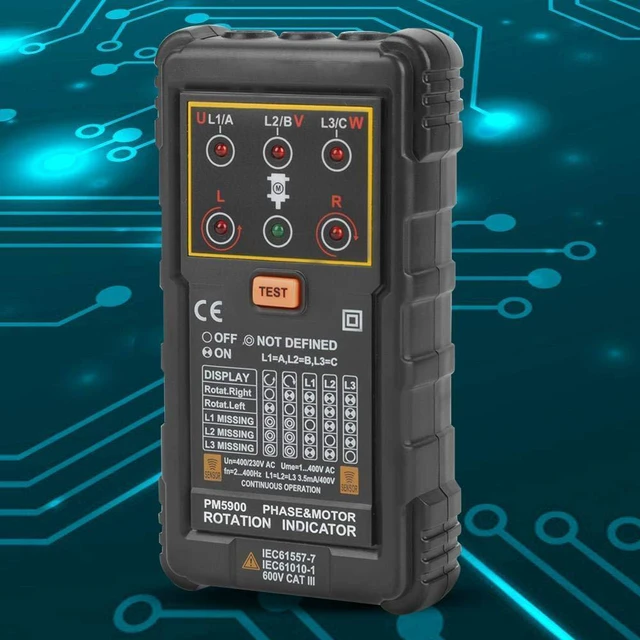

PEAKMETER PM5900 Three-Phase Motor Rotation Tester Portable Handheld Rotation Indicator
- HandHeld Motor Direction TesterThe ma5900 motor and phase sequence steering indicator is a handheld operating instrument is used to test magnetic field direction of threephase system, phase rotation, motor rotation direction.
- Convenient To UseWithout a need to link testing line, the motor rotation direction can be decided by placing this indicator above the motor and aligning it with motor drive shaft.
- Powerful FunctionUsed to test phase sequence input of threephase voltage, to indicate phase line l1, l2 and l3.it also supports noncontact type magnetic field rotation direction test (motor rotation direction test).
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

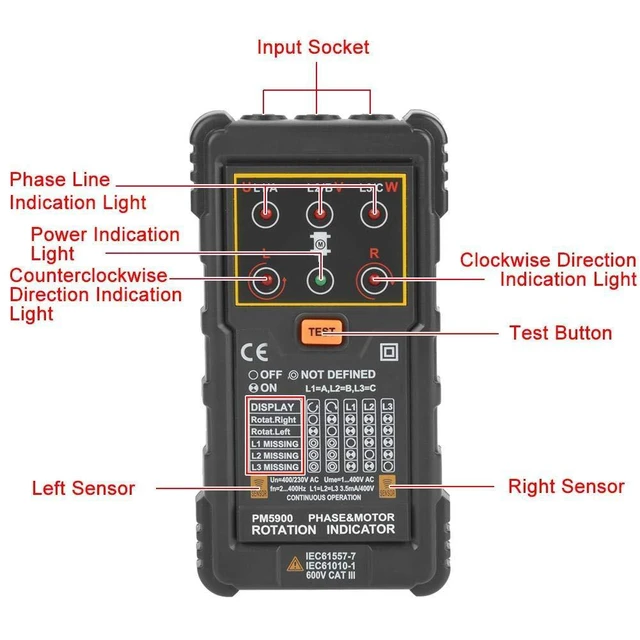

Panel IntroductionAt the top is 3 input jacks. then there is the indicator area: 3 phase line indicators, direction indicator, counterclockwise dereliction of duty, etc., power indicator, clockwise indicator. there is a test button. then below is indicator shows the left sensor position and the right sensor position. each partition is clear and simple, easy to use.
ApplicationThis phase rotation indicator meter is durable, reliable and lightweight handheld device, which is necessary tool for those who often install, repair or maintain threephase system or motor.
Brand: PEAKMETER
Model: PM5900
Maximal working voltage: 400V AC voltage
Nominal voltage (tested at rotation direction): 2~400V AC voltage, 2~400Hz
Nominal voltage (tested at phase sequence): 120~400V AC voltage, 2~400Hz
Test current (per phase): <3.5mA
Battery: 3 x 1.5V AA batteries (NOT included)
Temperature:
Operating: 0~40, maximal 80 % relative humidity (non-condensing)
Storage: -10~50, maximal 80 % relative humidity (non-condensing, battery not included)
Altitude: <2000m(meter)
Anti-explosion type: IP 40
Weight: 442g(approx. )

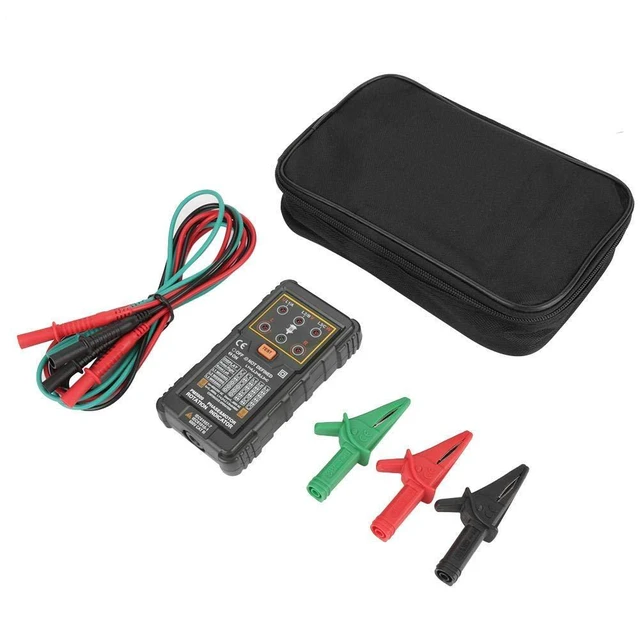

Package Includes:
x Tester (batteries are NOT included)
3 x Test Cables

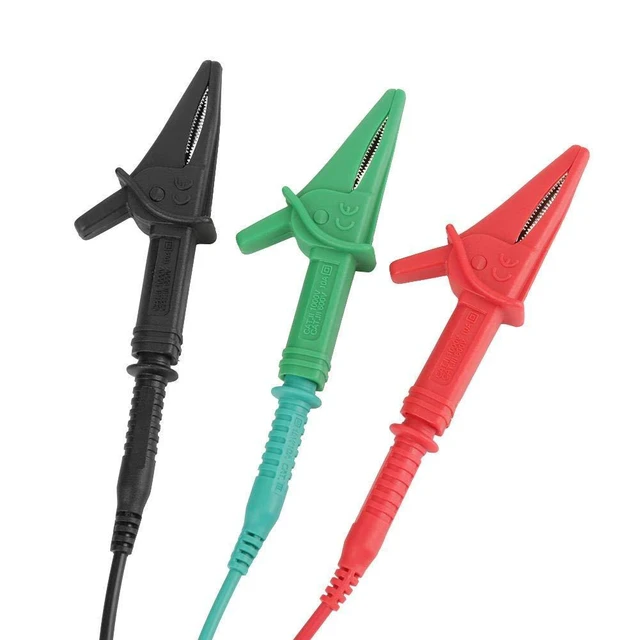

3 x Cable Clips
x Bag
ApplicationThis phase rotation indicator meter is durable, reliable and lightweight handheld device, which is necessary tool for those who often install, repair or maintain threephase system or motor.
Specifications
:Brand: PEAKMETER
Model: PM5900
Maximal working voltage: 400V AC voltage
Nominal voltage (tested at rotation direction): 2~400V AC voltage, 2~400Hz
Nominal voltage (tested at phase sequence): 120~400V AC voltage, 2~400Hz
Test current (per phase): <3.5mA
Battery: 3 x 1.5V AA batteries (NOT included)
Temperature:
Operating: 0~40, maximal 80 % relative humidity (non-condensing)
Storage: -10~50, maximal 80 % relative humidity (non-condensing, battery not included)
Altitude: <2000m(meter)
Anti-explosion type: IP 40
Weight: 442g(approx. )
Package Includes:
x Tester (batteries are NOT included)
3 x Test Cables
3 x Cable Clips
x Bag
