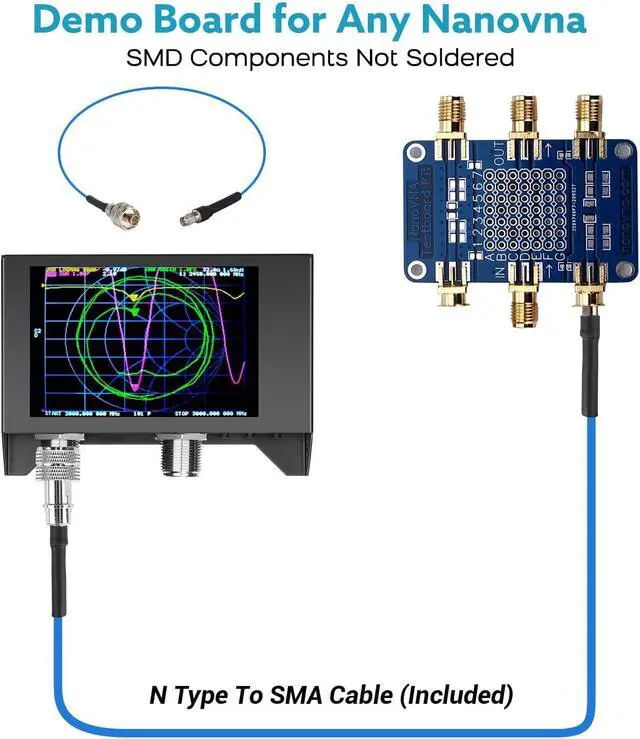

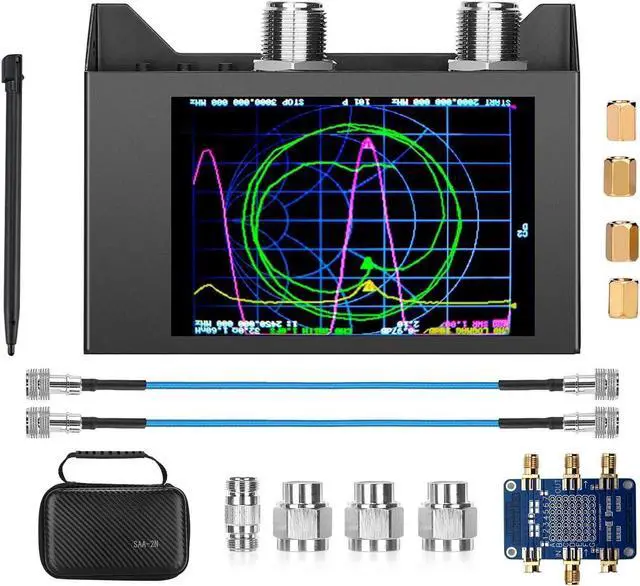

NanoVNA SAA-2N VNA Antenna Analyzer, 50KHz -3GHz Vector Network Analyzer with Bag & Testboard Kit,4" inch LCD,HF VHF UHF Measuring S Parameters, Voltage Standing Wave Ratio Smith Chart
- Professional NanoVNA SAA-2N V2.2 RF Analyzer:NanoVNA SAA-2N V2.2 is built for RF testing, antenna tuning and electronics debugging. It supports S11/S21 S-parameter measurements to analyze antenna impedance, filter performance, cable loss and RF components.
- 50KHz-3GHz Wide Frequency Range Testing: Cover HF, VHF and UHF applications with a broad 50KHz-3GHz frequency range. This vector network analyzer helps evaluate antennas, cables, filters and wireless communication components for engineers, ham radio users and DIY enthusiasts.
- Accurate S11/S21 Measurement Capability: Measure reflection and transmission performance with reliable RF analysis. S21 transmission supports up to 70dB (50KHz-1.5GHz), while S11 reflection reaches -50dB for detailed antenna and circuit evaluation.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
4" Touchscreen LCD with

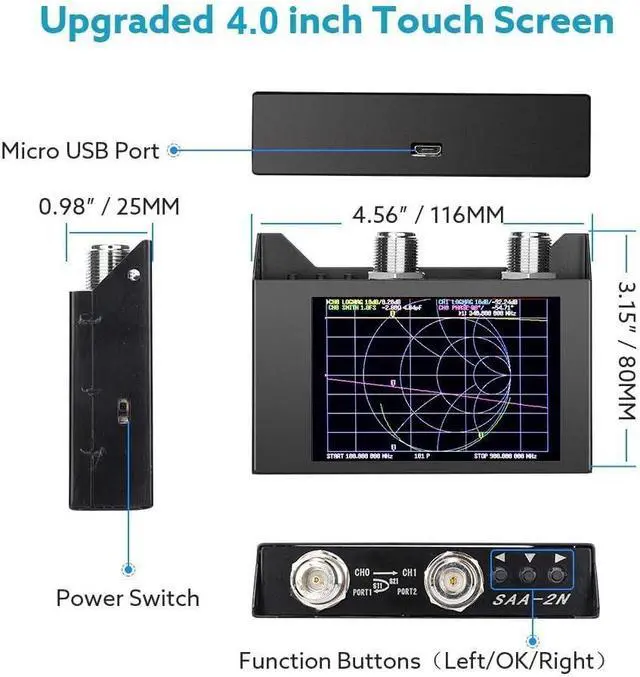

Easy Data Viewing: The 4-inch touchscreen display provides clear viewing of VSWR, Smith Chart, phase, delay and measurement curves. The intuitive interface makes RF testing faster and easier during daily troubleshooting.
Portable Aluminum Alloy Design: Featuring a durable aluminum protective case, this NanoVNA analyzer offers excellent stability and long-lasting performance. Its compact design is ideal for workshops, laboratories, outdoor testing and electronics projects.

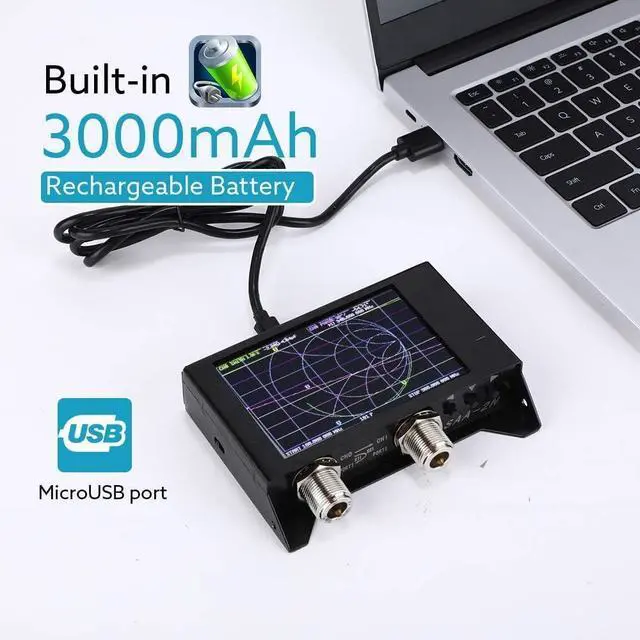

3000mAh Rechargeable Battery for Field Use: The built-in 3000mAh rechargeable battery allows convenient portable testing without constant power connection. USB charging provides flexible operation for antenna adjustment, RF measurement and DIY projects.
NanoVNA SAA-2N V 2.2 3GHz vector network analyzer
SPECIFICATION
Measuring frequency range 50KHz-3GHz
Frequency tolerance <2ppm
Frequency stability <0.5ppm
System dynamic range 70dB (up to 1.5 GHz), 60dB (up to 3GHz) (calibration)
S1noise floor -50dB (up to 1.5 GHz), -40dB (up to 3GHz) (calibration)
Screen 4.0 inch Touchscreen, 320 * 480 (Come with touch pen)
Power supply USB (3000mA-h included )
Maximum scanning points 201 (on the device)
Maximum scanning point (USB) 1024
Port 2 return loss ( 1.5 GHz) 20dB (typical value)
Port 2 return loss (3GHz) 13dB minimum
VNA-QT software Support For Linux, Windows (7+), Mac OS planned
Ples Note: The device only support PC software, Incompatible android device
Easy Data Viewing: The 4-inch touchscreen display provides clear viewing of VSWR, Smith Chart, phase, delay and measurement curves. The intuitive interface makes RF testing faster and easier during daily troubleshooting.
Portable Aluminum Alloy Design: Featuring a durable aluminum protective case, this NanoVNA analyzer offers excellent stability and long-lasting performance. Its compact design is ideal for workshops, laboratories, outdoor testing and electronics projects.
3000mAh Rechargeable Battery for Field Use: The built-in 3000mAh rechargeable battery allows convenient portable testing without constant power connection. USB charging provides flexible operation for antenna adjustment, RF measurement and DIY projects.
NanoVNA SAA-2N V 2.2 3GHz vector network analyzer
SPECIFICATION
Measuring frequency range 50KHz-3GHz
Frequency tolerance <2ppm
Frequency stability <0.5ppm
System dynamic range 70dB (up to 1.5 GHz), 60dB (up to 3GHz) (calibration)
S1noise floor -50dB (up to 1.5 GHz), -40dB (up to 3GHz) (calibration)
Screen 4.0 inch Touchscreen, 320 * 480 (Come with touch pen)
Power supply USB (3000mA-h included )
Maximum scanning points 201 (on the device)
Maximum scanning point (USB) 1024
Port 2 return loss ( 1.5 GHz) 20dB (typical value)
Port 2 return loss (3GHz) 13dB minimum
VNA-QT software Support For Linux, Windows (7+), Mac OS planned
Ples Note: The device only support PC software, Incompatible android device
